Festo 9964 Single Solenoid Valve With 24 V AC Coil
중고
재고 있음1 단위즉시 배송 가능
SINGLE SOLENOID VALVE
FESTO MFH-3-1/4 3/2-way valve with electrical actuation and MSFW-24-50/60 coil ensures high flow rates and reliable performance in pneumatic systems.
방대한 재고
글로벌 배송
전문 지원
품질 보장

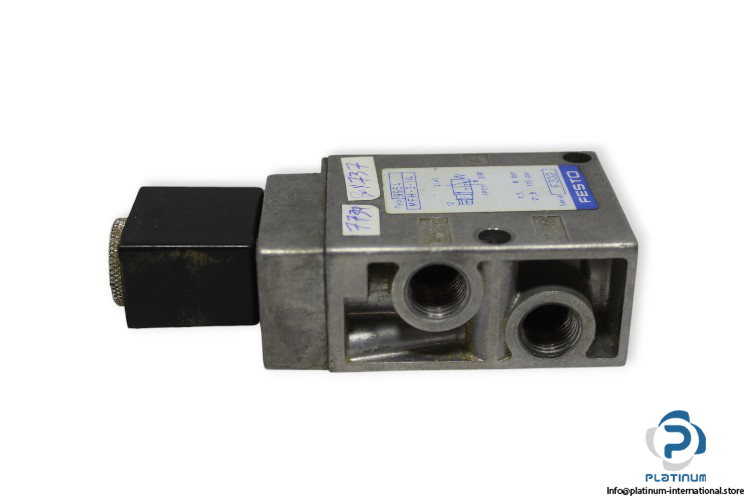

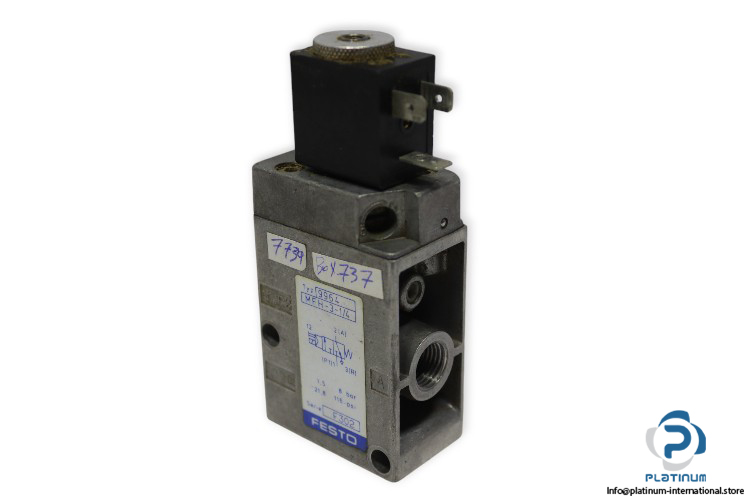

FESTO MFH-3-1/4 SINGLE SOLENOID VALVE WITH COIL
The FESTO MFH-3-1/4 is a high-performance single solenoid valve designed for reliable air control in industrial automation. Featuring a robust die-cast aluminum body and a poppet seat design, this 3/2-way valve is monostable and electrically actuated for efficient switching. It comes equipped with the FESTO MSFW-24-50/60 solenoid coil for consistent operation under varying conditions.
Manufacturer: FESTO
Type: Single Solenoid Valve

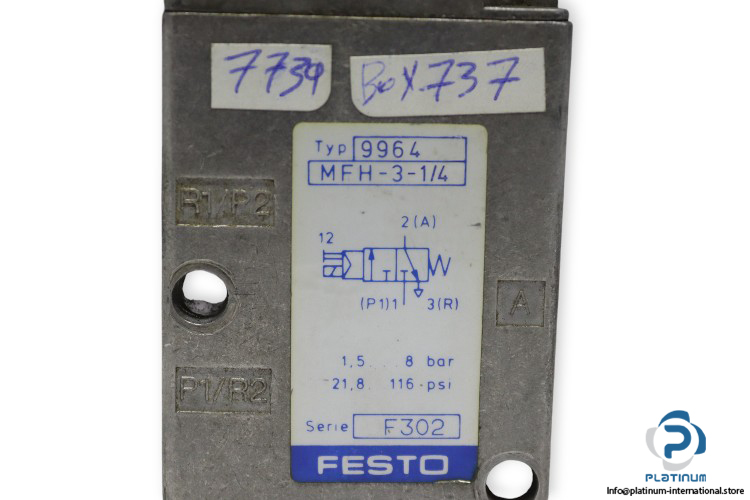

Model: MFH-3-1/4
Part No.: 9964
| Fluid | Air |
| Design | Poppet seat |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 1.5 / 8 bar |
| Nominal Flow Rate | 800 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 40 °C |

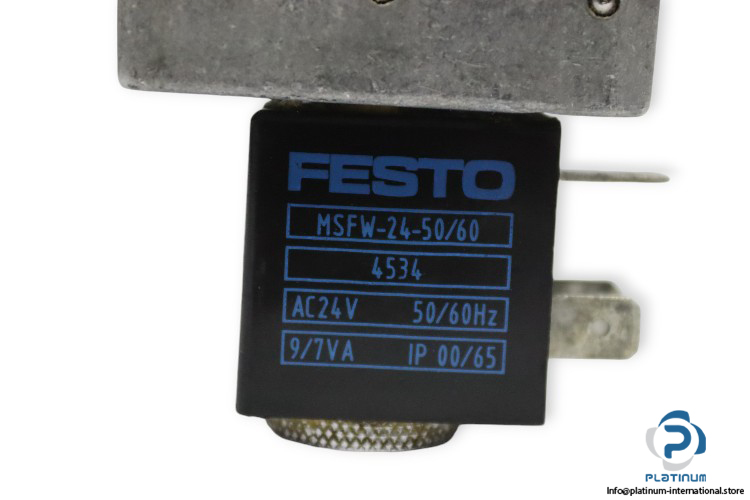

| Solenoid Coil Attachment | FESTO MSFW-24-50/60 |
| Part No. | 4534 |
| Supply Voltage | 24 V AC |
| Frequency | 50 / 60 Hz |
| Power Consumption | 9/7 VA |
| Protection Class | IP00 / IP65 |
