Festo 9964 Single Solenoid Valve
신제품
재고 있음1 단위즉시 배송 가능
Single Solenoid Control Valve
The FESTO MFH-3-1/4 is a high-performance control valve with 800 l/min nominal flow rate, electrical actuation, and a versatile operating pressure range of 1.5 to 8 bar, designed for reliable pneumatic control in industrial systems.
방대한 재고
글로벌 배송
전문 지원
품질 보장

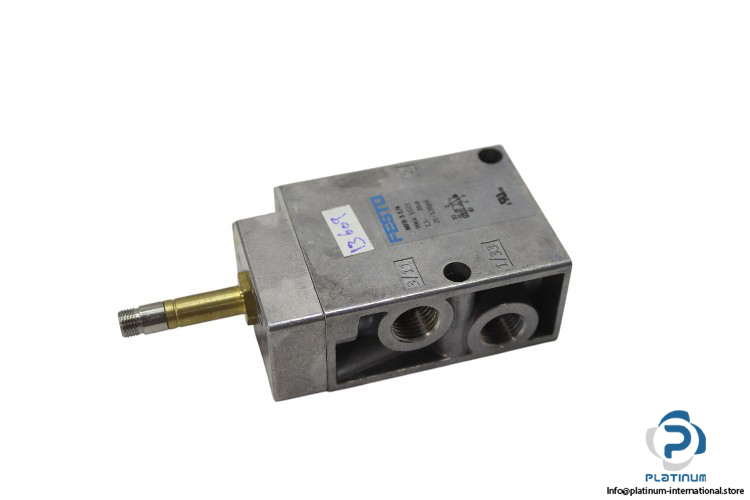

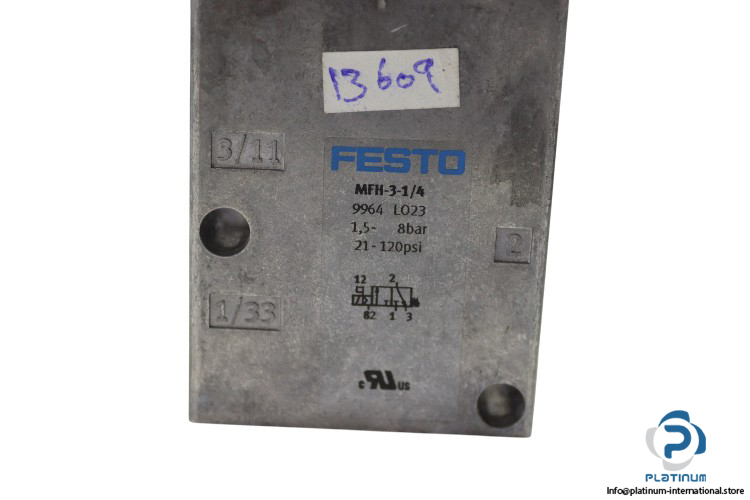

FESTO MFH-3-1/4 Single Solenoid Control Valve
The FESTO MFH-3-1/4 is a high-performance single solenoid control valve designed for precise pneumatic control in industrial applications. With a nominal flow rate of 800 l/min, it offers efficient performance with adjustable operating pressure and a compact design for easy integration.
Manufacturer: FESTO
Type: Single Solenoid Control Valve
Model: MFH-3-1/4
Part No.: 9964
Technical Data:
- Standard Nominal Flow Rate: 800 l/min
- Type of Actuation: Electrical
- Operating Pressure: 1.5 “ 8 bar
- Ambient Temperature: -5 / +40 °C
- Pneumatic Connection: G1/4
- Plug Diameter: 7.8 mm
- Pilot Exhaust Air Port 82: M5
