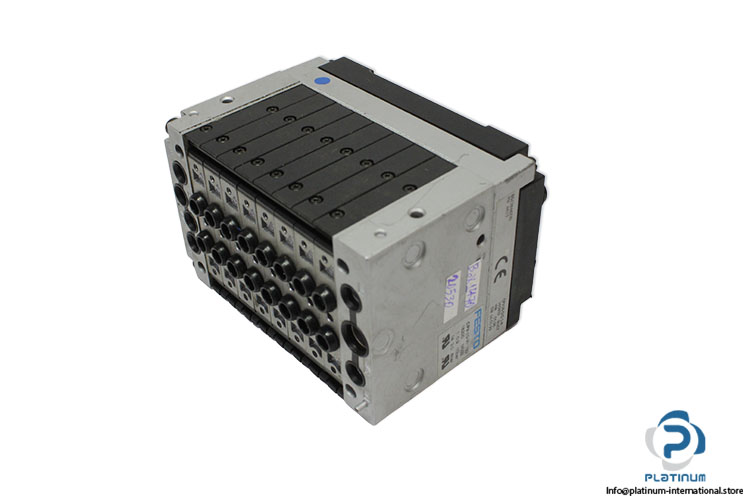

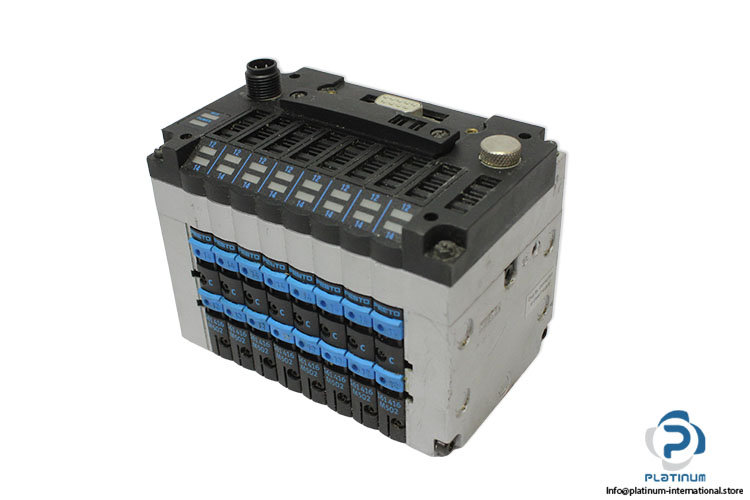

Festo CPV-10-VI 1782 8-WAY Valve Terminal
중고
재고 있음1 단위즉시 배송 가능
8-Way Valve Terminal The FESTO CPV-10-VI 1782 is an electrically actuated 8-way valve terminal for compressed-air control, supplied with a FESTO solenoid valve and electrical interface.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Part No. | 18200 |
| Medium | Compressed Air |
| Actuation | Electrically |
| Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Pilot Pressure | 3 ... 8 bar |
| Flow Rate | 400 l/min at 10 mm |
| Protection Class | IP65 |
| Temperature | -5 … 50 °C |
| Port Size | G1/8 & G3/8 |

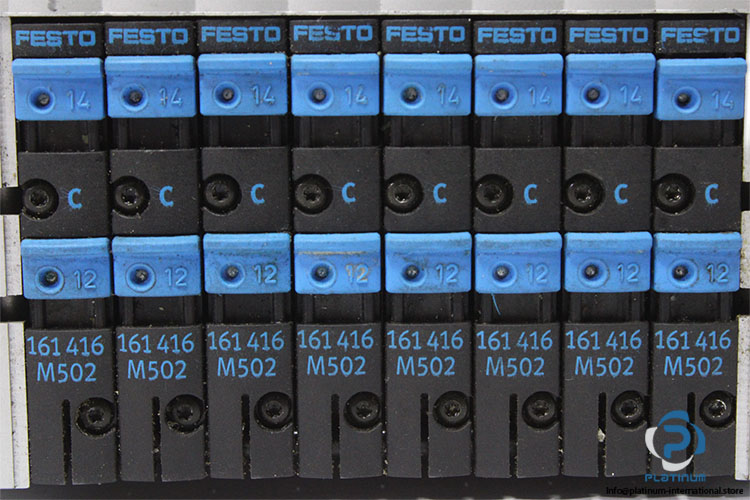

| Attachment 1 | FESTO 161416 SOLENOID VALVE |
| Solenoid Valve Manufacturer | FESTO |
| Attachment 1 Type | Solenoid Valve |
| Solenoid Valve Model | CPV10-M1H-2X3-GLS-M7 |
| Solenoid Valve Part No. | 161416 |
| Solenoid Valve Medium | Compressed Air |
| Solenoid Valve Size | 10 mm |
| Solenoid Valve Design | Piston Gate Valve |
| Solenoid Valve Function | 2x3/2 Closed Monostable |
| Solenoid Valve Actuation | Electrically |
| Solenoid Valve Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Solenoid Valve Pilot Pressure | 3 ... 8 bar |
| Solenoid Valve Flow Rate | 400 l/min |
| Solenoid Valve Operating Voltage | 24 V DC |
| Solenoid Valve Power Consumption | 0.46 W |
| Solenoid Valve Pneumatic Connection | 7 mm |
| Solenoid Valve Material | Die-Cast Aluminium |
| Solenoid Valve Protection Class | IP65 |
| Solenoid Valve Temperature | -5 … 50 °C |

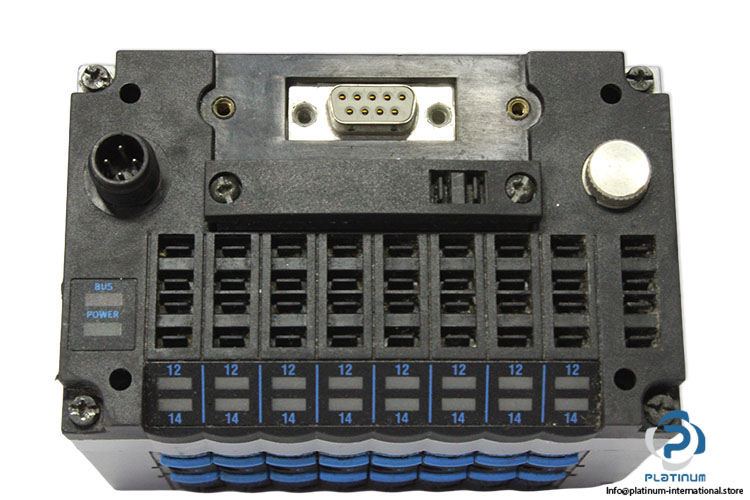

| Attachment 2 | FESTO 165809 ELECTRICAL INTERFACE |
| Electrical Interface Manufacturer | FESTO |
| Attachment 2 Type | Electrical Interface |
| Electrical Interface Model | CPV19-DIO1-8 |
| Electrical Interface Part No. | 165809 |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1103093 |
| Weight | 0,93 |
