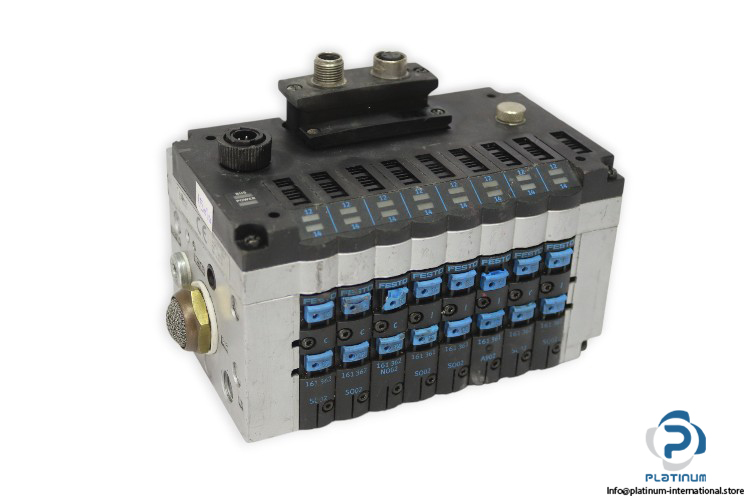

FESTO CPV14-GE-DI01-8 ELECTRICAL INTERFACE
Designed for high-efficiency control in pneumatic automation systems, the FESTO CPV14-GE-DI01-8 Electrical Interface combines compact design with robust communication and valve expansion capabilities. Its modular system is compatible with multiple valve types, ideal for demanding industrial applications.
Manufacturer: Festo
Type: Electrical Interface

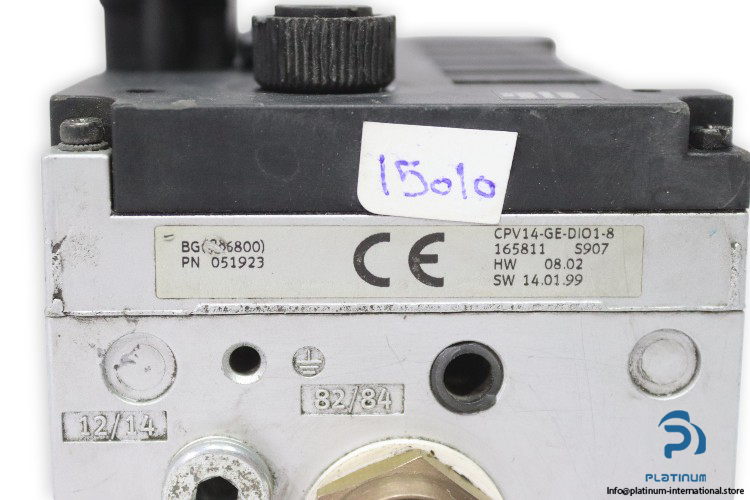

Model: CPV14-GE-DI01-8
Part No.: 165811
Code: 051923, 82/84, 12/14, BG 386800, S907
HW Version: 08.02
SW Version: 14.01.99
| Connection | 1/8 & ¼ inch |
| Fluid | Air |
| Material | Aluminum |
| Port Size | Sub based |
| CP String Expansion | 16 inputs / 8 outputs (or 16 valves) |
| Field Bus Interface | M12x1, 5-pin, B-coded Sub-D, 9-pin socket |
| Communication | Cyclic communication |
| Max. Valve Coils with Expansion | 32 |
| Max. Valve Coils | 16 |
| Operational Voltage Range | 20.4 V to 26.4 V |
| Ambient Temperature | -5 °C to 50 °C |
| Degree of Protection | IP65 |
| LED Display | 12/14, switching status of valves, POWER, electronics/load supply |
| Housing Material | Die-cast aluminium |

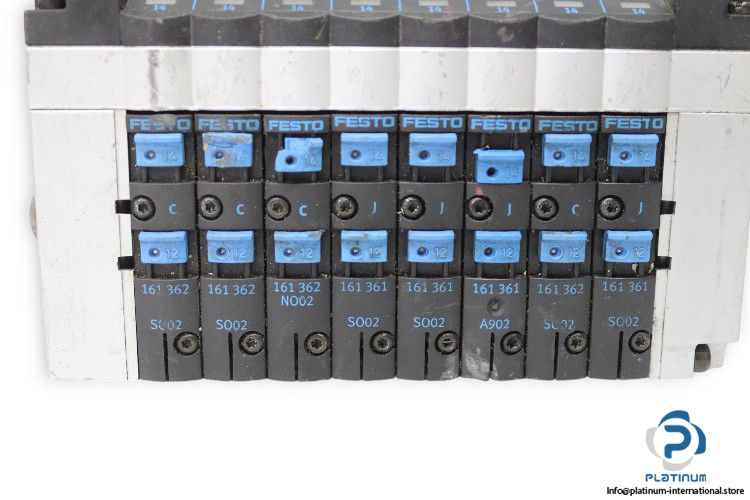

| Attachment 1 | Festo 161362 Solenoid Valve |
| Valve Function | 2 x 3/2-way, monostable, closed |
| Actuation Type | Electric |
| Valve Size | 14 mm |
| Flow Rate | 800 l/min |
| Pneumatic Port | G1/8 |
| Operating Voltage | 24 V DC |
| Pressure Range | -0.09 MPa to 1 MPa |
| Reset Type | Pneumatic spring |
| Protection | IP65 |
| Nominal Size | 6 mm |
| Ambient Temperature | -5 °C to 50 °C |
| Material | POM/PPS/Steel |
| Quantity | 4 |
| Attachment 2 | Festo 161361 Solenoid Valve |
| Valve Function | 5/2 bistable |
| Actuation Type | Electric |
| Valve Size | 14 mm |
| Flow Rate | 800 l/min |
| Pneumatic Port | G1/8 |
| Operating Voltage | 24 V DC |
| Pressure Range | -0.9 bar to 10 bar |
| Protection | IP65 |
| Nominal Size | 6 mm |
| Ambient Temperature | -5 °C to 50 °C |
| Material | POM/PPS/Steel |
| Quantity | 4 |
