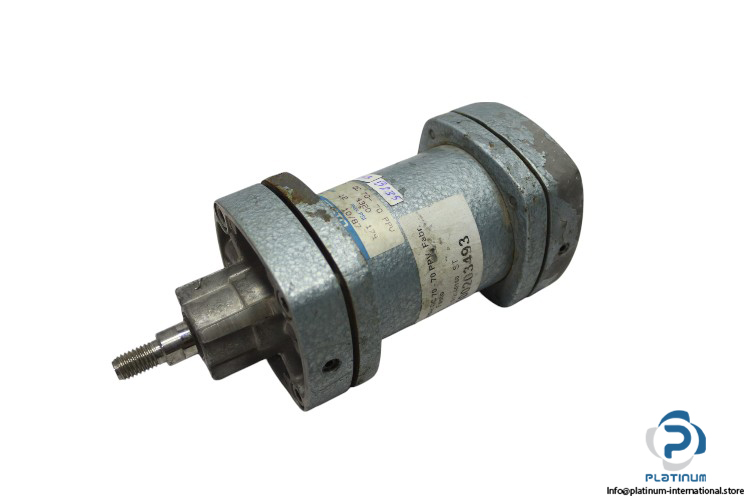

Festo DC-70-70 PPV ISO Cylinder
중고
재고 있음1 단위즉시 배송 가능
ISO Cylinder
The Festo DC-70-70 PPV ISO Cylinder is a double-acting pneumatic actuator with a 70 x 70 mm bore and stroke, G 1/4 connection, and 12 bar max pressure for reliable industrial use.1/41270ActingActuatorAirAutomationbarboreCircularCompressedconnectionCylinderDC-70-70DoubleFestoframeGIndustrialISOmalemmPneumaticPPVPressureRODStroke
방대한 재고
글로벌 배송
전문 지원
품질 보장

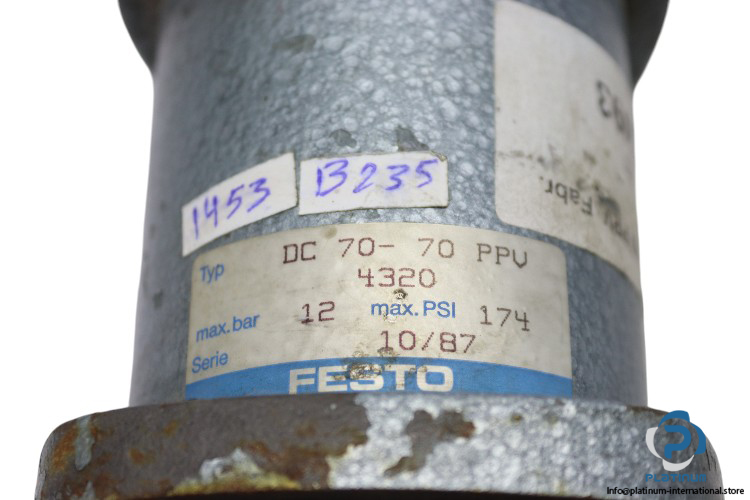

Festo DC-70-70PPV ISO Cylinder
The Festo DC7070PPV ISO Cylinder is a robust pneumatic actuator engineered for high-performance industrial applications. Featuring a 70 mm bore and 70 mm stroke, this double-acting cylinder operates with compressed air and supports up to 12 bar pressure.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DC-70-70 PPV
Part No.: 4320
| Media | Compressed Air |
| Bore Diameter | 70 mm |
| Stroke | 70 mm |
| Bore x Stroke | 70 x 70 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 92 x 195 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Circular |
| Rod Direction | One Side |
