Festo DN-80-50 ISO Cylinder
중고
재고 있음1 단위즉시 배송 가능
ISO Cylinder
FESTO ISO Cylinder DN-80-50 is designed for reliable pneumatic control with a 80 mm bore diameter and 50 mm stroke. With a G 3/8 pneumatic connection, this double-acting cylinder provides robust performance in industrial applications.3/880ActingCircularconnectionControlCylinderDN-80-50DoubleEndFestoGIndustrialISOmalemmPistonPneumaticROD
방대한 재고
글로벌 배송
전문 지원
품질 보장

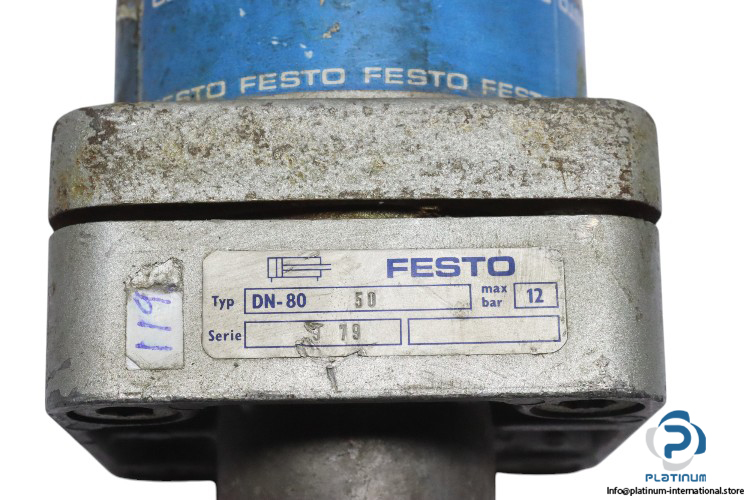

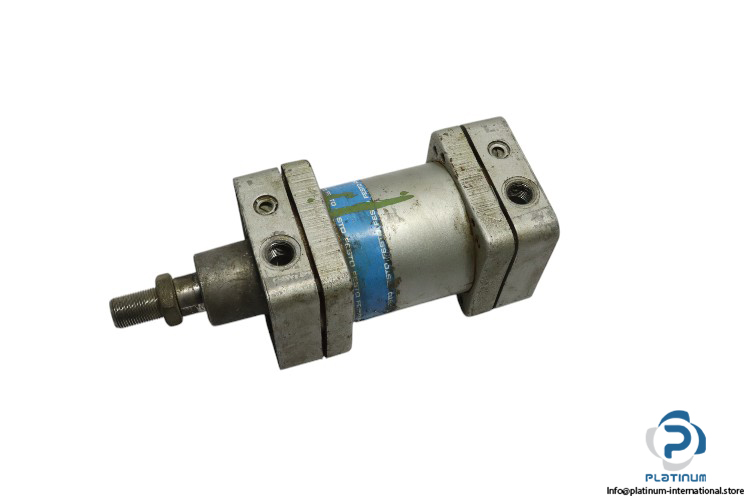

FESTO ISO Cylinder DN-80-50
The FESTO ISO Cylinder DN8050 is designed for precise and reliable pneumatic operations in industrial applications. With a robust design and efficient performance, this cylinder provides high-quality movement control with a double operation mode and male piston rod end.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DN-80-50
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 50 mm
- Bore x Stroke: 80 x 50 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 96 x 215 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Circular
- Rod Direction: One Side
