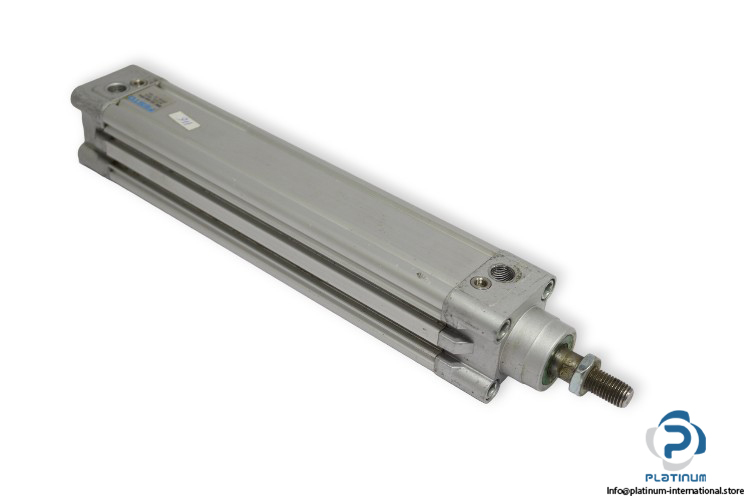

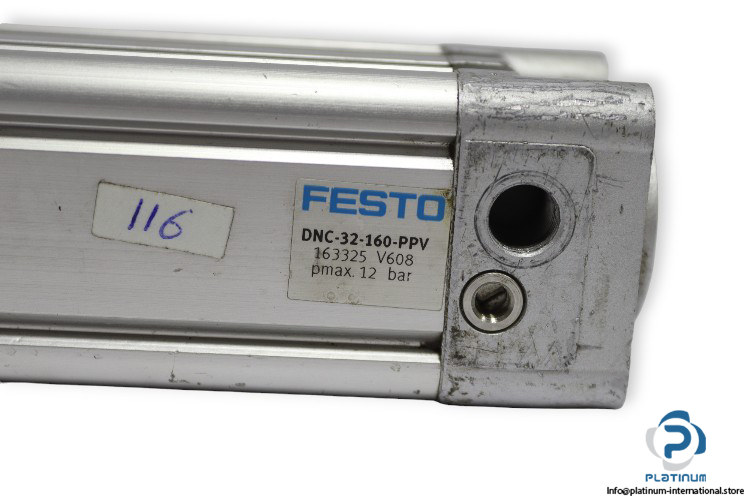

Festo DNC-32-160-PPV ISO Cylinder

재고 있음3 단위즉시 배송 가능

ISO Cylinder Festo DNC-32-160-PPV double-acting ISO pneumatic cylinder with 160 mm stroke, adjustable pneumatic cushioning, and durable aluminum construction for industrial automation applications.

제조업체
FESTO
SKU
1045616
카테고리
ISO Cylinder
상태
중고
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장
Part No.163325
CodeN708
SeriesDNC
FluidCompressed Air
Stroke160 mm
Bore Size32 mm
Frame dimensions45x270 mm
Rod diameter12 mm
Operating ModeDouble-acting
Operating pressuremax. 12 bar
Cushioning TypePneumatic cushioning, adjustable at both ends
Piston rod endMale thread
VariantsPiston rod at one end
Position sensingWithout
Port sizeG1/8
Material CoverCoated Die-cast aluminum
Material SealsTPE-U(PU)
Material piston rodHigh-alloy steel
Ambient temperature-20 to 80°C
ConditionUsed
SKU1045616
Weight0,97

You May Also Need

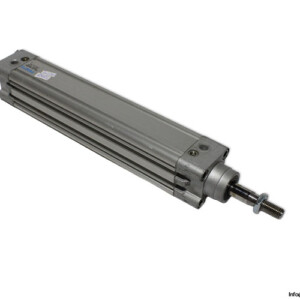

Festo 163325 ISO Cylinder
