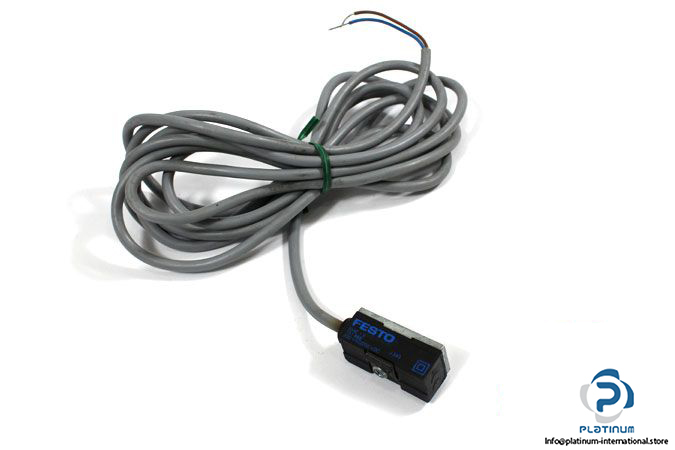

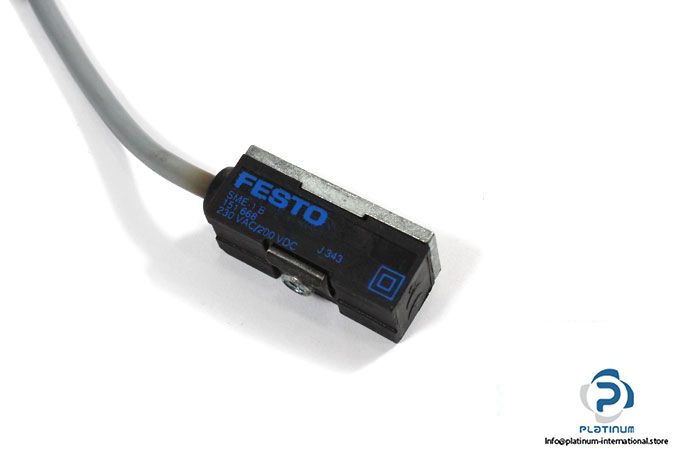

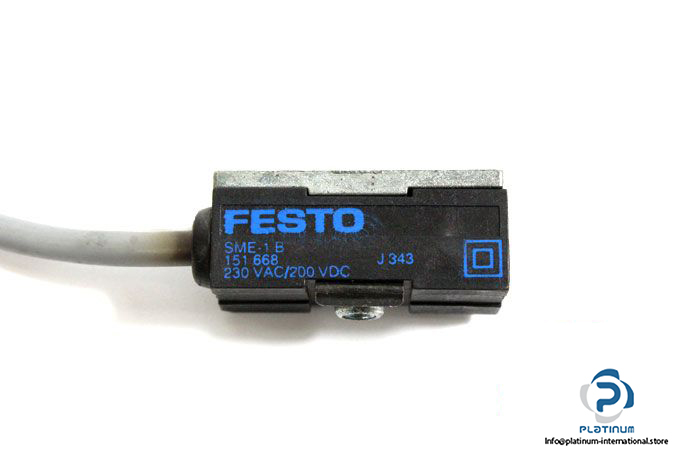

Festo SME-1-B Proximity Sensor

Manufacturer: FESTO

Type: PROXIMITY SENSOR

Model: SME-1-B

Part No.: 151668

Measuring principle: Magnetic reed

Operating Voltage: 200 V DC, 230 V AC

Output current max.: 1 A

Contact rating max.: 40 W

Switching frequency max.: 500 Hz

Switching output: Normally open

Connector type: PVC Cable, 2.5

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -20 … 70°C

Diameter, housing length: 15.5 x 14 x 34 mm

Weight: 130 g
