Finmotor FIN730.001.M Parallel Filter

Name: FINMOTOR FIN730.001.M PARALLEL FILTER
SKU: 1057813
Availability: LimitedAvailability

finmotor-FIN730.001.M-parallel-filter-used

finmotor-FIN730.001.M-parallel-filter-used-1

finmotor-FIN730.001.M-parallel-filter-used-2

중고

재고 있음1 단위즉시 배송 가능

75 V AC 정격 전압, IP20 보호 등급, 25 mA 미만의 누설 전류를 가진 내구성 있는 병렬 전기 필터. 넓은 온도 범위(-40에서 +85°C)에서 산업용 필터링 요구에 적합합니다.

제조업체

FINMOTOR

SKU

1057813

카테고리

Electrical Filters

상태

중고

10W 40 730.001.M 75V 85°C AC Class Climatic Current Electrical filter Fin Finmotor Industrial IP20 Leakage Loss noise Parallel Power Protection to

방대한 재고

글로벌 배송

전문 지원

품질 보장

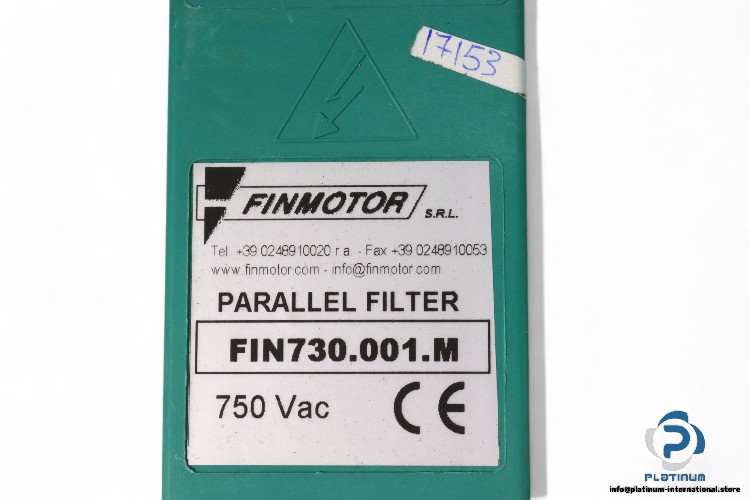

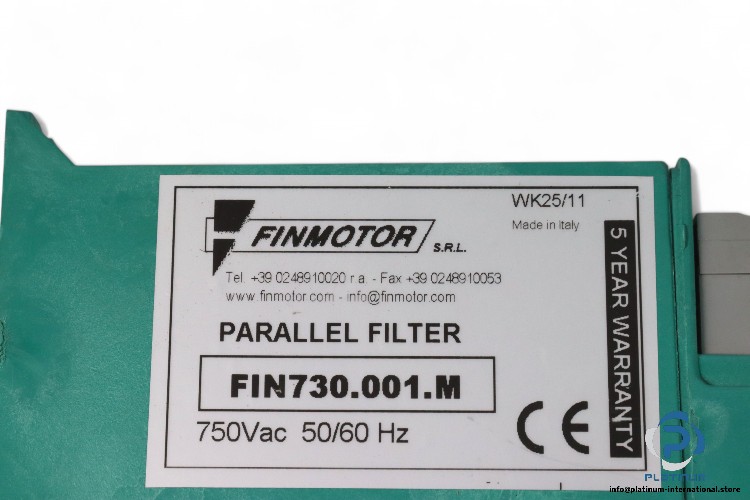

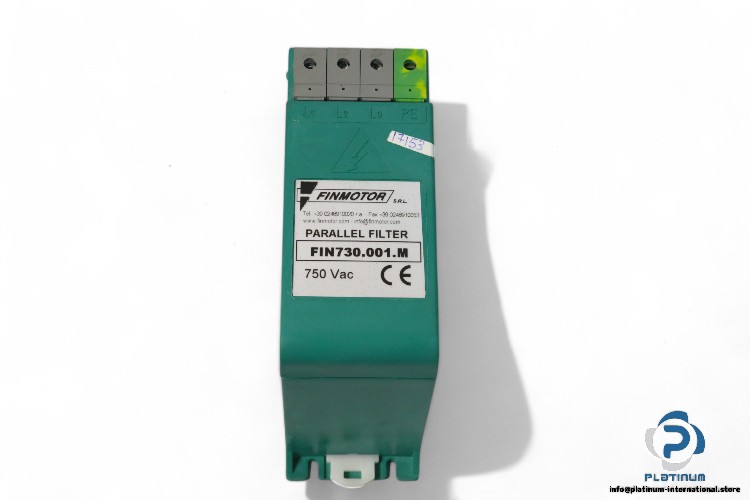

Parallel Filter FIN 730.001.M by Finmotor

The Finmotor Parallel Filter FIN 730.001.M is a high-performance electrical filter designed for reliable operation in industrial environments. With a nominal voltage of 75 V AC and an operating frequency range of 50-60 Hz, this filter ensures efficient filtering of electrical noise and protection of sensitive equipment.

Key features include:

Nominal Voltage: 75 V AC
Frequency: 50 “ 60 Hz
Power Loss: 10 W
Potential Test Voltage (Phase to Phase-Ground): 2400 “ 3200 V DC
Leakage Current (Normal Conditions): < 25 mA
Leakage Current (Worst Conditions): < 70 mA
IP Protection: IP20
Climatic Class: -40 to +85°C
Dimensions: 130 x 146 x 59 mm

Designed for durability and reliability, this filter offers exceptional protection against electrical disturbances, with low leakage current and a broad operating temperature range. It™s an ideal solution for industrial applications requiring stable and consistent performance in harsh environments.
