Fuji FCX-AII FKDT46VFLKC2Y Transmitter
신제품
재고 있음1 단위즉시 배송 가능
TRANSMITTER
Industrial ATEX-certified differential pressure transmitter with stainless steel remote seal flanges, SIL.5 silicone oil fill, and 4“20 mA output. Designed for hazardous zones and precision process control applications.4-20AtexCertifieddifferentialDPEXFCX-AIIfilledFKDT46VFLKC2YFlangehazaiaIICIndustrialmAoilOutputPressureRemoteSealSensorSiliconeTransmitterWith
방대한 재고
글로벌 배송
전문 지원
품질 보장

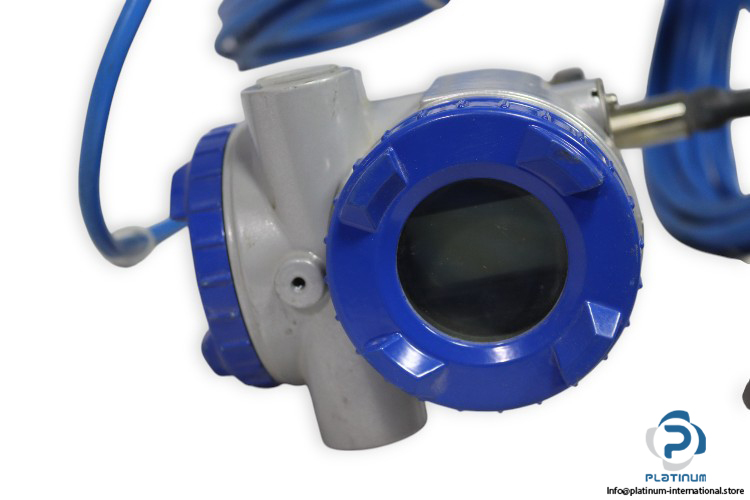

FUJI FCX-AII FKDT46VFLKC2Y TRANSMITTER
This FCX-AII transmitter is a high-precision industrial differential pressure transmitter designed for use in hazardous environments. Featuring ATEX-certified explosion protection, silicone oil-filled stainless steel pressure module, and dual remote seal flange, it is built for accuracy, durability, and safety in demanding process automation systems.
Manufacturer: FUJI
Type: Transmitter
Series: FCX-AII

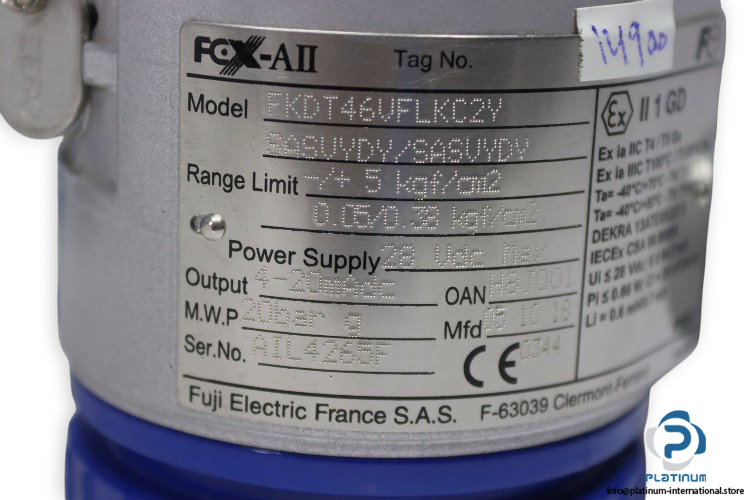

Model: FKDT46VFLKC2Y, SASVYDY/ SASVYDY
Serial No.: AIL4265F
OAN: H8J001
Code: 0344/ 338J088
Certification
Electrical Ratings
Attached Module

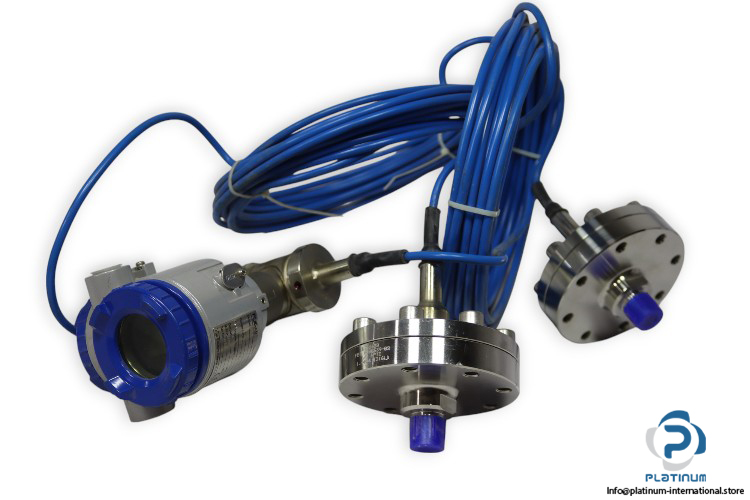

Dual Remote Seal Flange
3- Capillary Tubing
| Connection | ½ inch |
| Range Limit | -/+ 5, 0.05/0.38 Kgf/cm² |
| Voltage | 28 V DC Max. |
| Output | 4 to 20 mA DC |
| Max Working Pressure | 20 bar |
| Ingress Protection | IP66/67 |

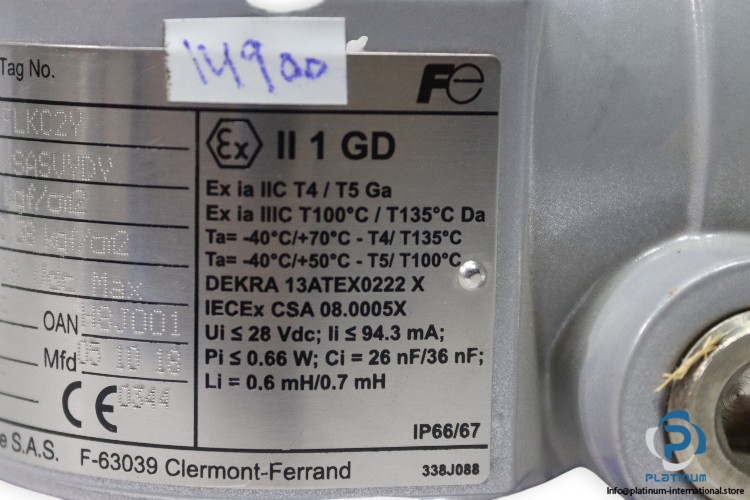

| ATEX Marking | Ex II 1 GD |
| Gas Zone | Ex ia IIC T4/T5 Ga |
| Dust Zone | Ex ia IIIC T100°C/T135°C Da |
| Temperature Ranges | Ta = -40°C to +70°C (T4) / -40°C to +50°C (T5) |
| DEKRA Certificate | 13ATEX0222 X |
| Voltage | 28 VDC |
| Current | ‰¤ 94.3 mA |
| Power | ‰¤ 0.66 W |
| Internal Capacitance | 26 nF / 36 nF |
| Internal Inductance | 0.6 mH / 0.7 mH |

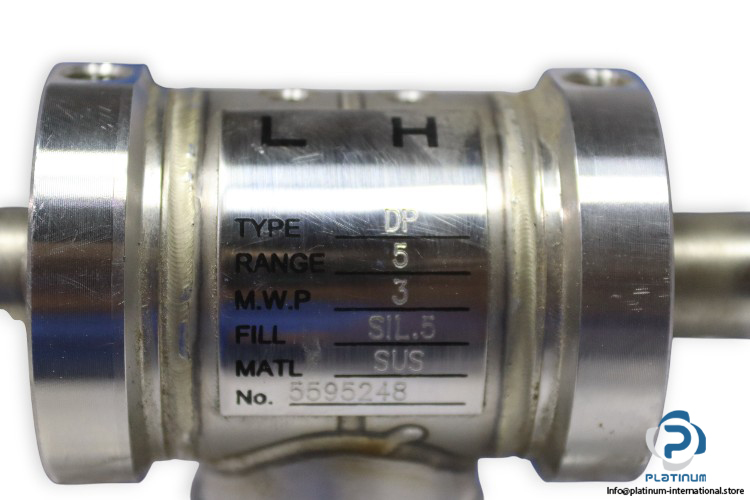

| Pressure Module | 5595248 |
| Range | 5 |
| Max Working Pressure | 3 bar |
| Fill Fluid | SIL.5, Silicone Oil type 5 |
| Material | SUS |
| Ports | Marked L (Low) and H (High) |

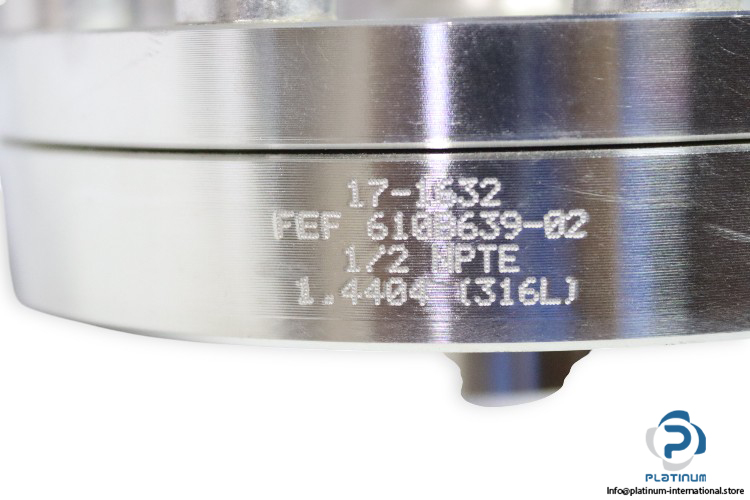

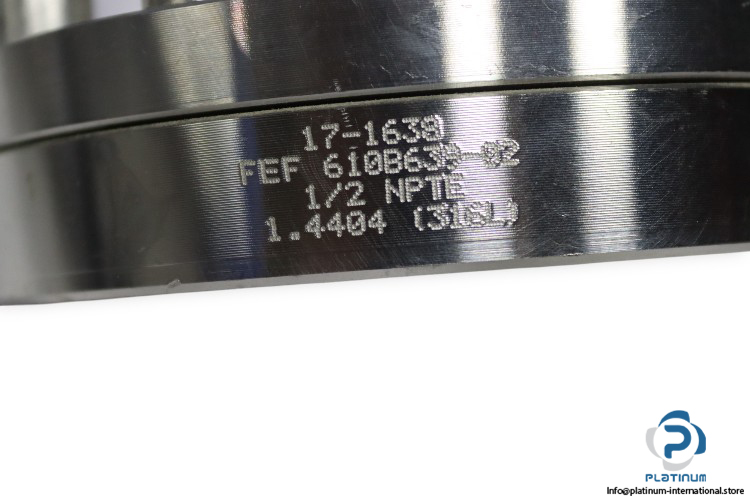

| 1- 17-1638 (FEF 610B639-02) | Size ½ NPTE, 1.4404 (316L) |

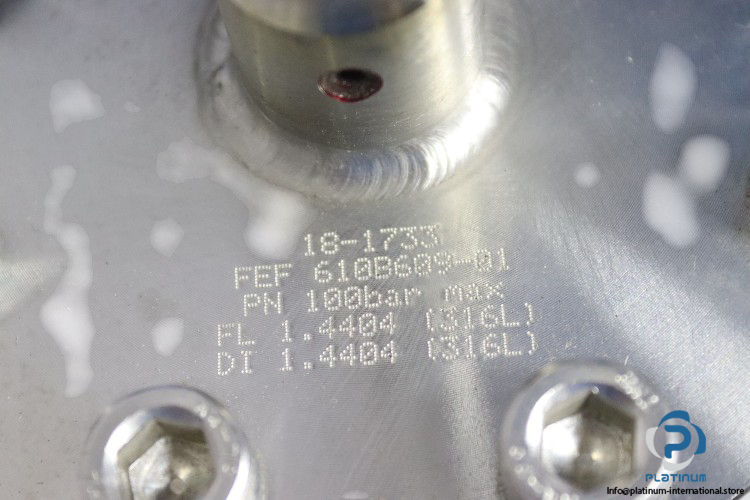

| 2- 18-1733 (FEF 610B609-01) | PN 100 bar max, FL 1.4404 (316L), DI 1.4404 (316L) |
