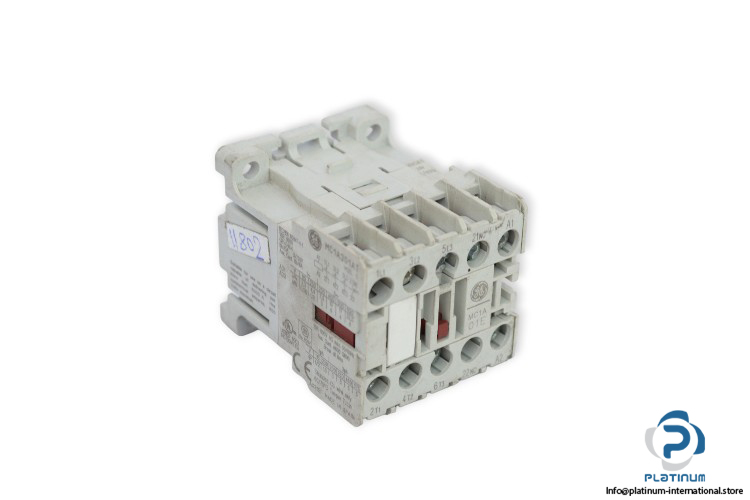

General Electric MC1A301AT Contactor
중고
요청 시 제공 가능
29,99$
제조사: GENERAL ELECTRIC 유형: 컨택터 모델: MC1A301AT 대체 모델: MC1A01E
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: GENERAL ELECTRIC
Type: Contactor

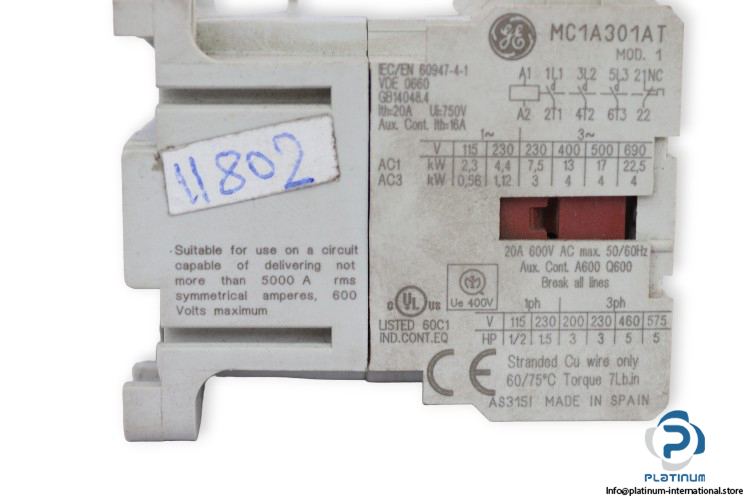

Model: MC1A301AT

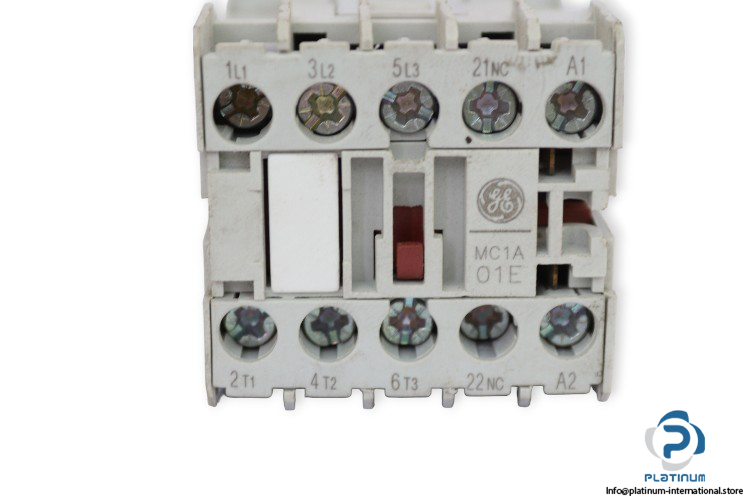

Alternative Model: MC1A01E

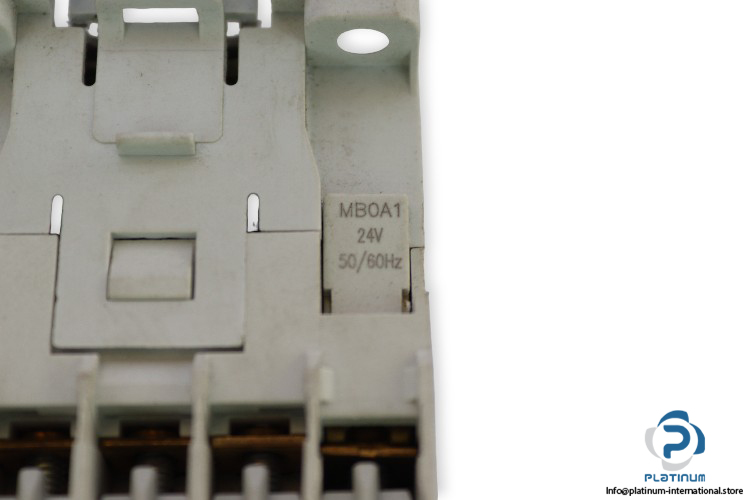

Rated Coil Voltage: 24 V AC
Rated Operational Voltage: 600 V AC
Rated Operational Current: 25 A
Frequency: 50 … 60 Hz
Rated Thermal Current Ith: 20 A
Power AC-3:
1-Phase: 115 V: 0,56 kW, 230 V: 1,12 kW
3-Phase: 230 V: 3 kW, 400 / 500 / 690 V: 4 kW
Rated Insulation Voltage Ui: 750 V
Main Poles: 4-Pole
Auxiliary Contact: 1-Pole 1 Normally Closed (NC)
Rated Auxiliary Contact Current: 16 A
Dimensions: 40 x 45 x 88 mm
