Givi Misure EN58SC Optical Encoder

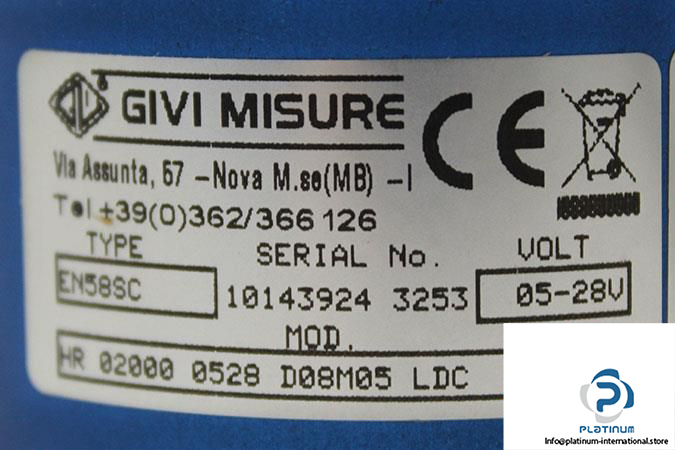

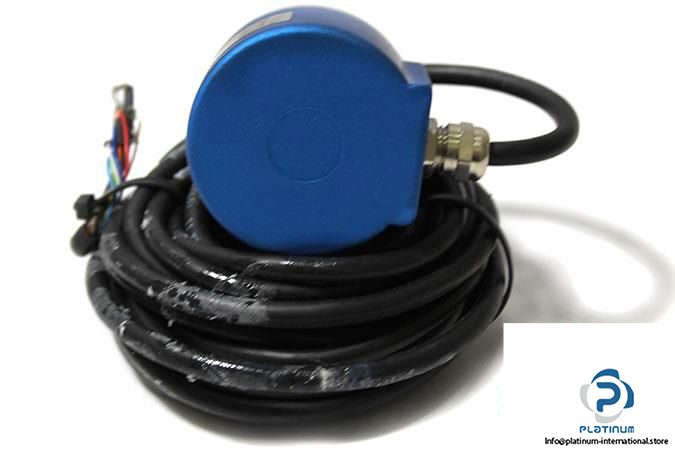

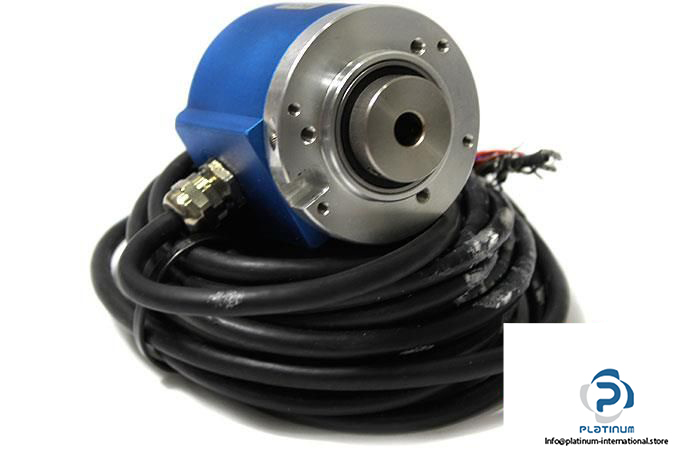

GIVI MISURE HR 02000 0528 D08M05 LDC OPTICAL ENCODER
The GIVI MISURE HR 02000 0528 D08M05 LDC is a high-precision optical encoder ideal for demanding automation and motion control applications. With robust IP65 protection and a line driver TTL output, it ensures reliable performance in harsh environments.
Manufacturer: GIVI MISURE
Type: Optical Encoder
Model: HR 02000 0528 D08M05 LDC
MNR: EN58SC
S NO: 10143924 3253

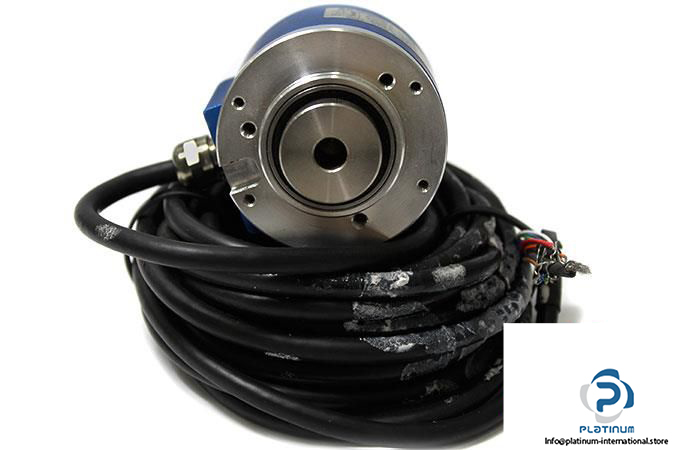

| Shaft Design | Hollow Shaft |
| Hole Diameter & Depth | 15 mm |
| Shaft Diameter | 8 mm |
| Voltage Supply | 5 / 28 VDC |
| Resolution | 2000 Pulses per Revolution (PPR) |
| Max. Current Consumption | 30 mA |

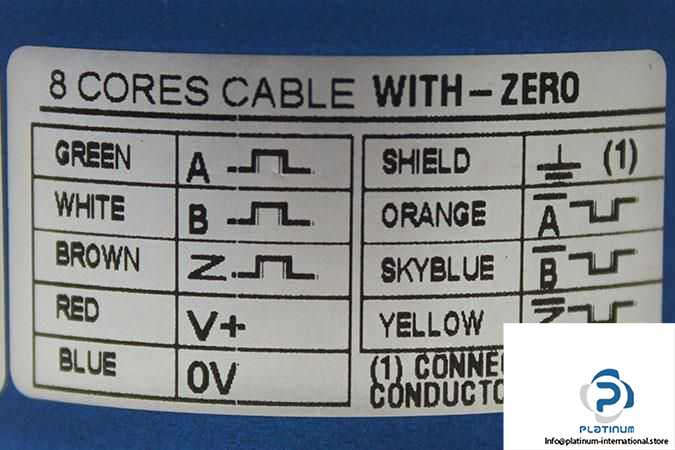

| Output Circuit | Line Driver (TTL) |
| Pulse Frequency | Max. 300 kHz |
| Protection Class | IP65 |
| Operating Temperature | -20 / 80 °C |
