GMW ASK 31.3 Current Transformer
신제품
재고 있음1 단위즉시 배송 가능
Current Transformer
A compact plug-in current transformer offering accurate current measurement for industrial power distribution and monitoring systems, compatible with busbars and round conductors.
방대한 재고
글로벌 배송
전문 지원
품질 보장

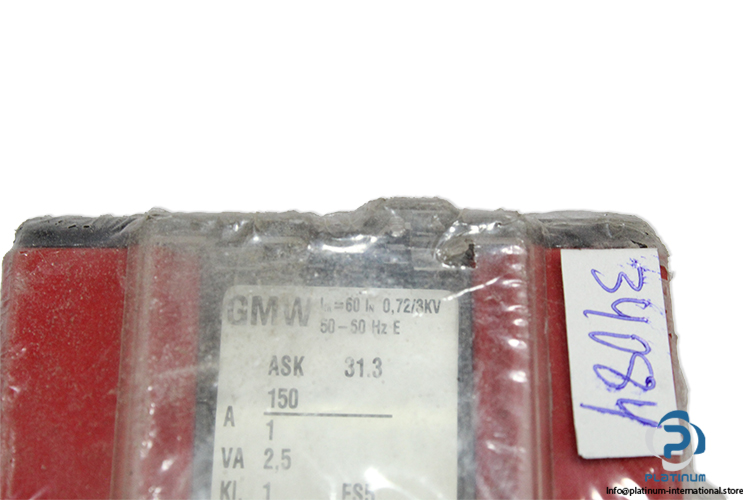

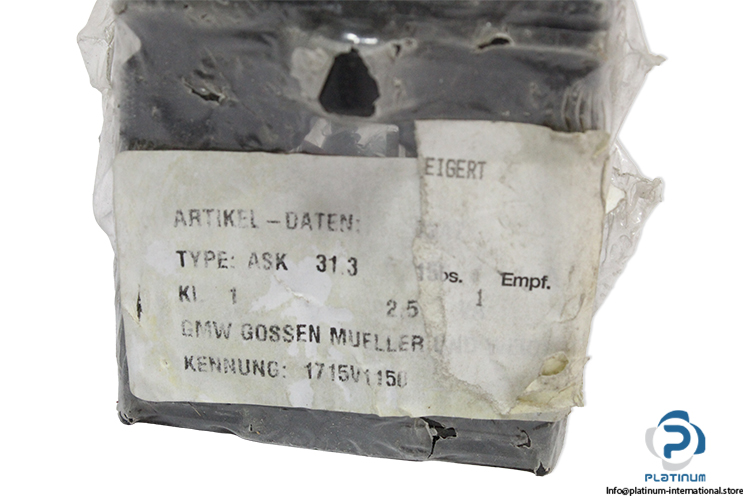

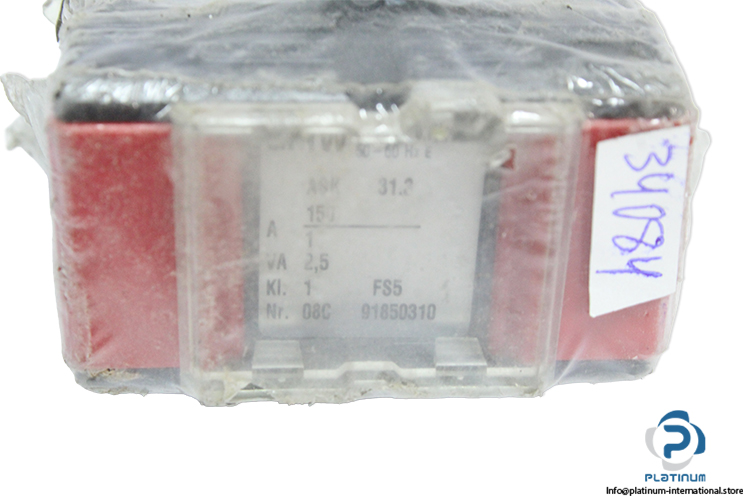

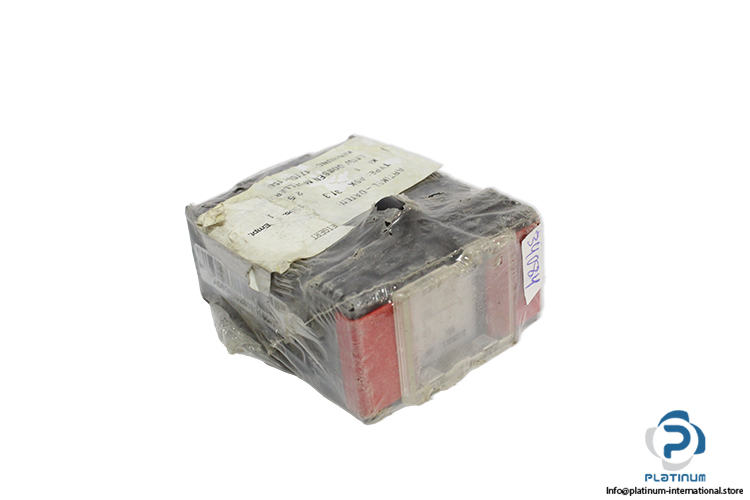

GMW ASK31.3 Plug-In Current Transformer
A high-accuracy plug-in current transformer designed for reliable current measurement in industrial power and control applications. Suitable for use with busbars and round conductors, this transformer provides stable performance across a wide current range and operating frequencies. Manufacturer: GMW
Type: Plug-in Current Transformer
Model: ASK31.3
Order No.: 1715V1150
| Conductor Type | Bars up to 30 × 10 mm / 25.4 × 13 mm / 2 × 20 × 10 mm |
| Round Conductors | Up to Ø 26 mm |
| Rated Primary Current Range | 50 to 750 A |
| Rated Primary Current | 150 A |
| Secondary Current (SEC) | 1 A |
| Accuracy Class | Class 1 |
| Rated Burden | 2.5 VA |
| Housing Material | Polycarbonate |
| Transformer Width | 60 mm |
| Frequency | 50 “ 60 Hz |
| Insulation Voltage | 0.72 / 3 kV |
더 보기 GMW
