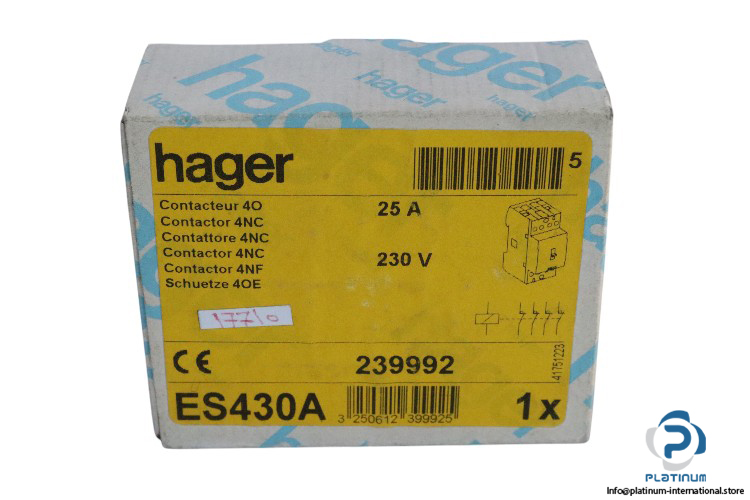

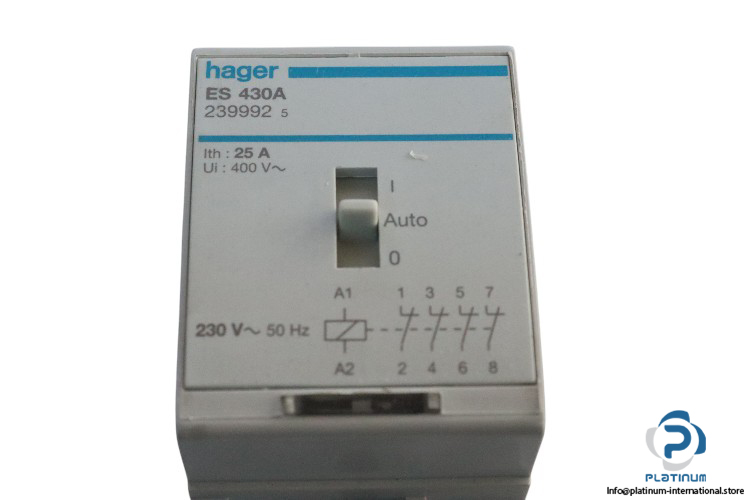

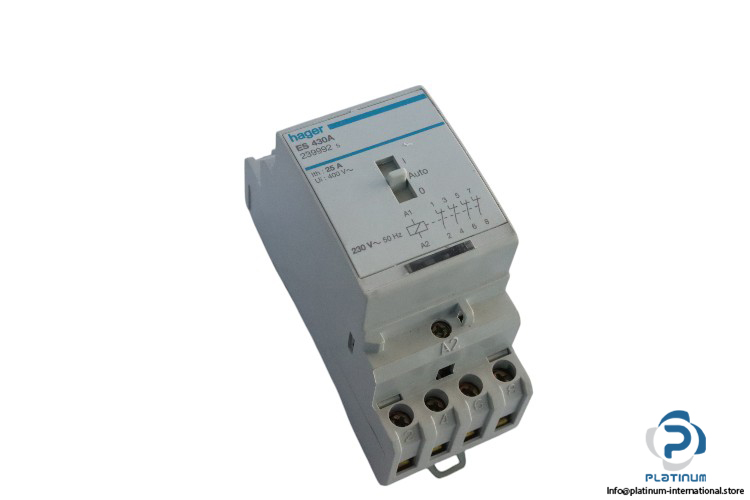

Hager ES430A Contactor
Hager Override Contactor ES 430A
Hager Override Contactor ES 430A is designed for efficient and reliable control in electrical circuits. With a high-rated operational voltage and a solid thermal current rating, it offers an optimal solution for industrial applications requiring precise control and overload protection.
- Manufacturer: Hager
- Type: Override Contactor
- Model: ES 430A
- Part No.: 239992
Technical Data:
- Rated Operational Voltage (Ue): 400 V AC
- Frequency: 50 Hz
- Rated Insulation Voltage (Ui): 400 V AC
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Contact Voltage: 230 V AC
- Acceptable Current Rating with AC1: 20 A
- Thermal Rated Current (Ith): 25 A
- Contact: 4 Normally Close
- Inrush Power Absorbed: 20 VA
- Operating Consumption: 5 VA
- Total Power Loss under In: 4.8 W
- Power Loss per Contact: 1.2 W
- Operating Temperature: -10 to 50 °C
- Dimensions: 61 x 85 x 35 mm
