Contactor

The Hager ESC226 is a single-pole contactor rated at 25 A with 2 x NC contacts and 230 V AC control voltage. Compact in design and built for reliability in industrial electrical installations.

제조업체
HAGER
SKU
1082119
상태
중고
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

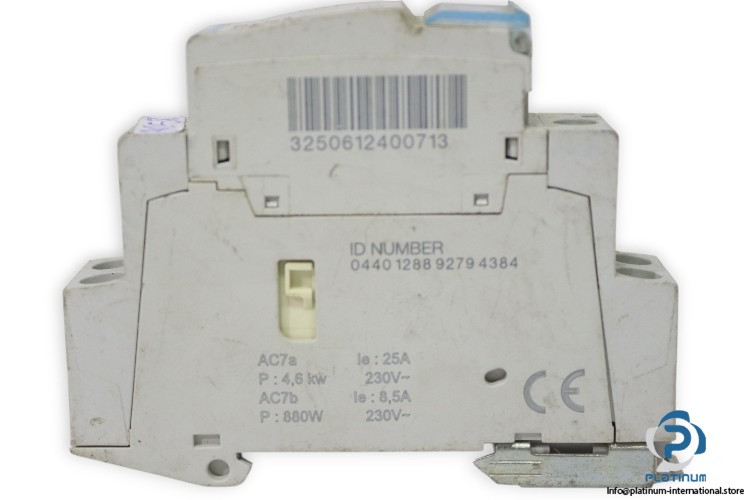

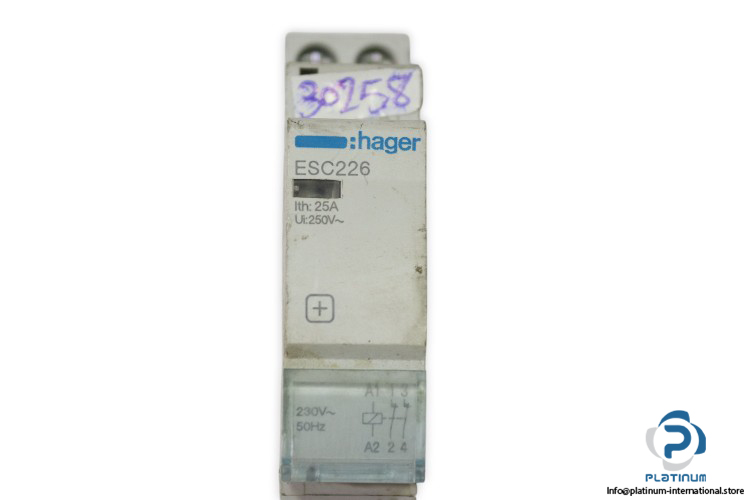

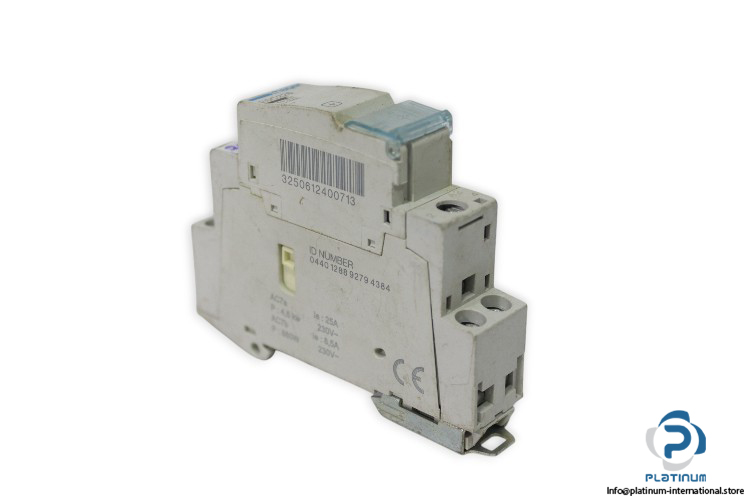

Hager ESC226 Contactor

The Hager ESC226 is a compact and reliable contactor engineered for secure control and switching in industrial and commercial electrical systems. With a 230 V AC control voltage and a 25 A rated current, it ensures efficient performance across a wide range of applications.

Manufacturer: Hager

Type: Contactor

Model: ESC226

ID. No.: 0440 1288 9279 4384

Contact Configuration2 x NC (Normally Close)
Control Voltage230 V AC, 50 Hz
Rated Current25 A (AC7a), 8.5 A (AC7b)
Thermal Current25 A
Insulation Voltage (Ui)250 V AC
Power4.6 kW (AC7a), 880 W (AC7b)
Installation / MountingNominal tightening torque 1.20 Nm
Operating Temperature Range-10 °C to +50 °C
Dimensions83 x 17.5 x 60 mm
