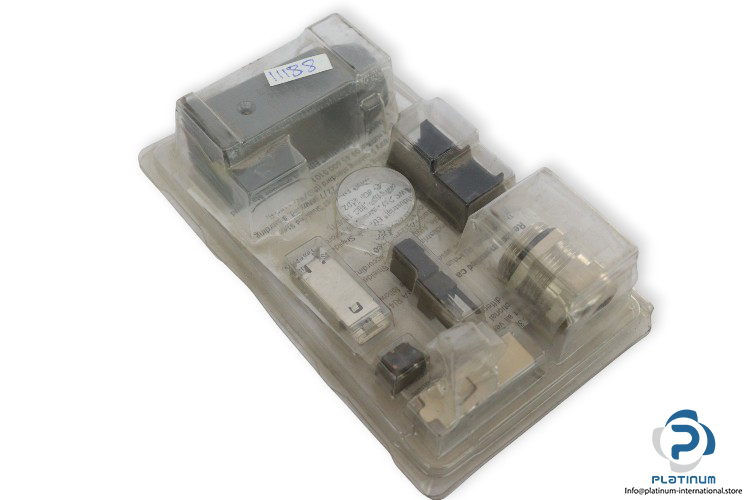

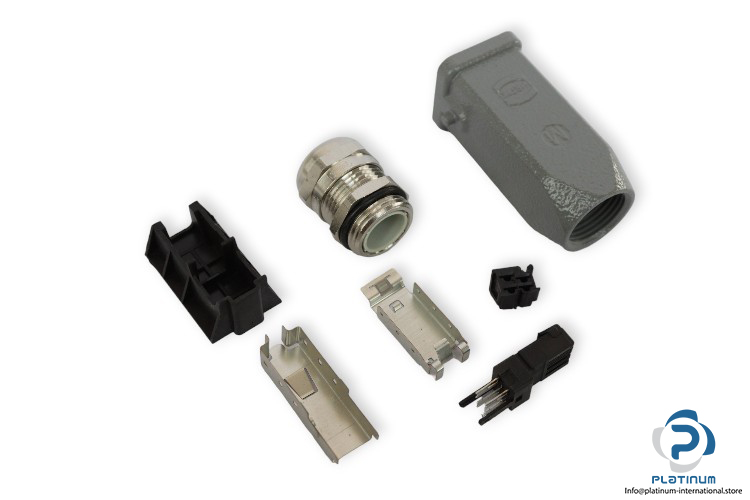

Harting HAN 3A RJ45 Connector
신제품
재고 있음1 단위즉시 배송 가능
유형: 커넥터
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacture: Harting electronics
Type: Connector
Model: HAN3ARJ45

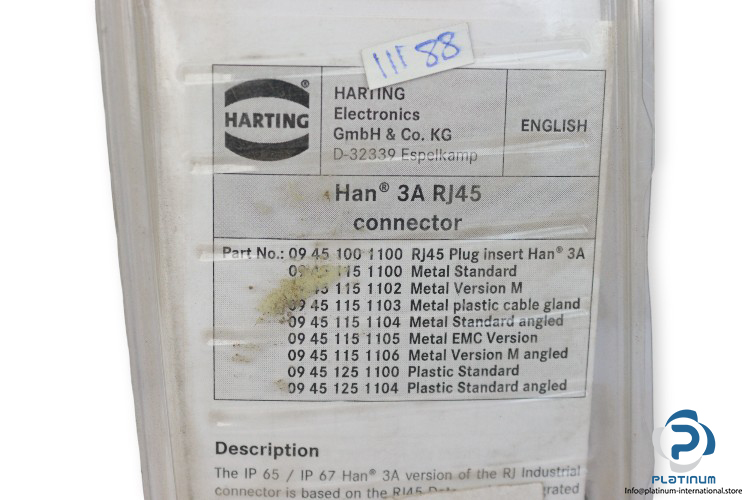

Part No.:
09 45 100 1100
09 45 115 1100
09 45 115 1102
09 45 115 1103
09 45 115 1104
09 45 115 1105
09 45 115 1106
09 45 125 1100
09 45 125 1104
Number of Ways: 8P
Orientation: Straight
Data transmission: up to 10 Gbit/s
Protection degree: IP65 / IP67
Ethernet Connector Type: RJ45 Connector
Cable diameter: 5 … 9 mm
Mating cycles: min.500
Wire gauge data: AWG 22-24 Standard, AWG 22-23 Solid
Wire insulation: max. 1.6 mm
Standard: ISO/IEC 11 801:2002, EN 50173-1
Housing material: Thermoplastic, black zinc, die-cast
Temperature range: -40 … 70°C
Dimensions: 40.3 x 33.6 x 36.5 mm
