Hawe MP 22-H 1.1 Radial Piston Pump
중고
재고 있음1 단위즉시 배송 가능

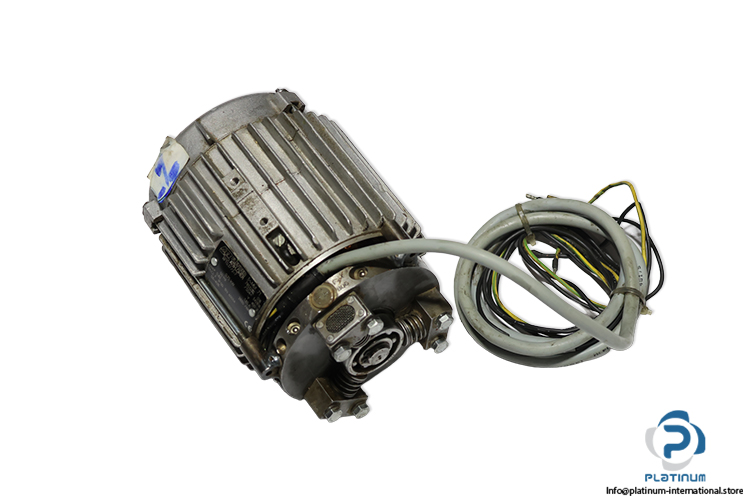

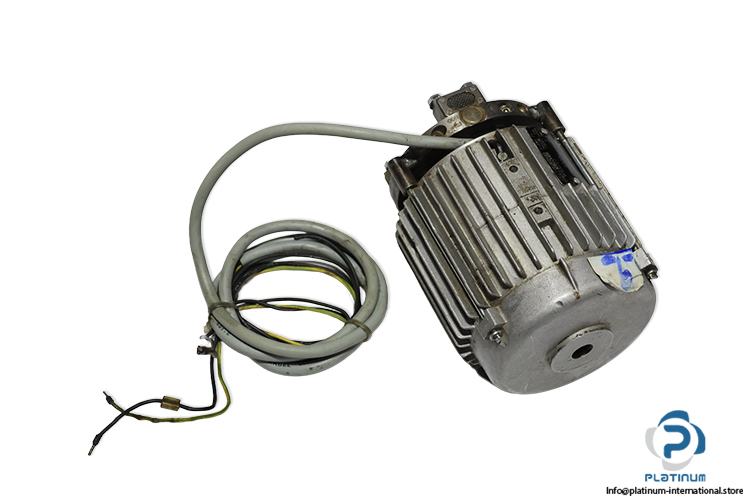

Radial Piston Pump HAWE MP 22-H 1.1 radial piston pump featuring 700 bar maximum pressure, 1.1 cm³/rev displacement, and an ATB FLENDER 0.75 kW motor. Designed for high-pressure industrial hydraulic applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Series | MP |
| Fluid | oil |
| Design | Valve-controlled pump element |
| Material Steel | hardened, ground functional inner parts |
| Temperatures Ambient | approx. -40 ... +80°C |
| Shaft Diameter | 25 mm |
| Operating pressure pmax | 700 bar |
| Displacement volume Vg max | 1.1 cm3/rev |
| Nominal power (kW) | 0.75 |
| Nominal speed (rpm) | 2830 |
| Attachment | ATB FLENDER RFT0.37/2-7 MOTOR |
| Part Numbers | 7853232 018 / 342816 |
| Power Output | 0.75 kW |
| Rated Speed | 2830 rpm (operating at 50 Hz) |
| Voltage Configuration | 400 V connected in a Star (Y) configuration |
| Rated Current | 1.85 A |
| Power Factor | 0.82 |
| Duty Cycle | S3 - 40% |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1101734 |
| Weight | 7,85 |
