Heidenhain ROD 426.0003-2500 Incremental Encoder

Name: HEIDENHAIN ROD 426.0003-2500 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 966117
Price: 395.00 USD
Availability: InStock

heidenhain-rod-426-0003-2500-incremental-encoder-1

heidenhain-rod-426-0003-2500-incremental-encoder-2

heidenhain-rod-426-0003-2500-incremental-encoder-3

중고

재고 있음1 단위즉시 배송 가능

395,00$

증분 인코더 HEIDENHAIN ROD 426.0003-2500는 2500 PPR 해상도, 5 VDC 입력 및 TTL (RS 422) 출력을 제공합니다. 솔리드 샤프트 및 동기 플랜지로 제작되어 빠르고 정밀한 산업용 응용에 적합합니다.

제조업체

HEIDENHAIN

SKU

966117

카테고리

Rotary Encoders

상태

중고

2500 426.0003-2500 5VDC Encoder Heidenhain High Incremental Industrial Motion Output PPR ROD RS422 Sensor shaft Solid Speed TTL

방대한 재고

글로벌 배송

전문 지원

품질 보장

HEIDENHAIN ROD 426.0003-2500 INCREMENTAL ENCODER

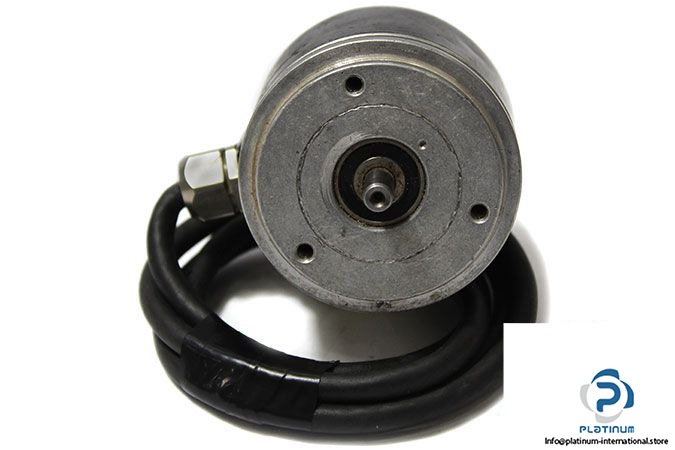

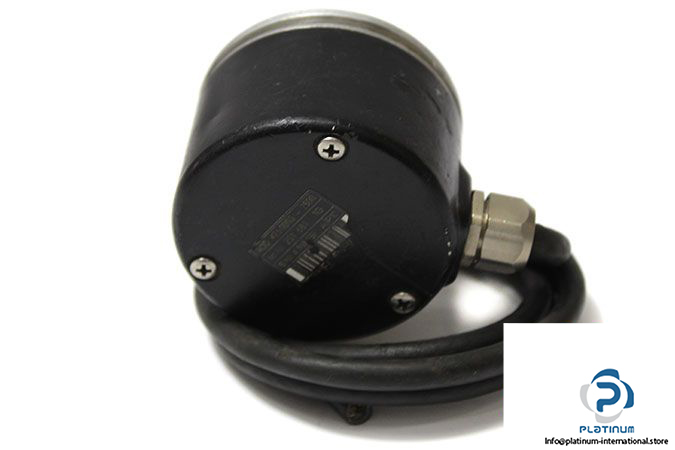

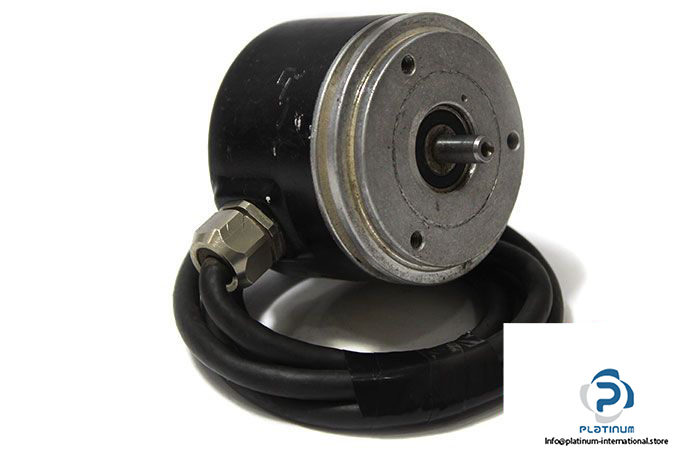

The HEIDENHAIN ROD 426.0003-2500 is a precision-engineered incremental encoder designed for high-speed, high-resolution industrial motion control systems. With a solid shaft and synchro flange, it offers reliability, speed, and consistent signal output.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

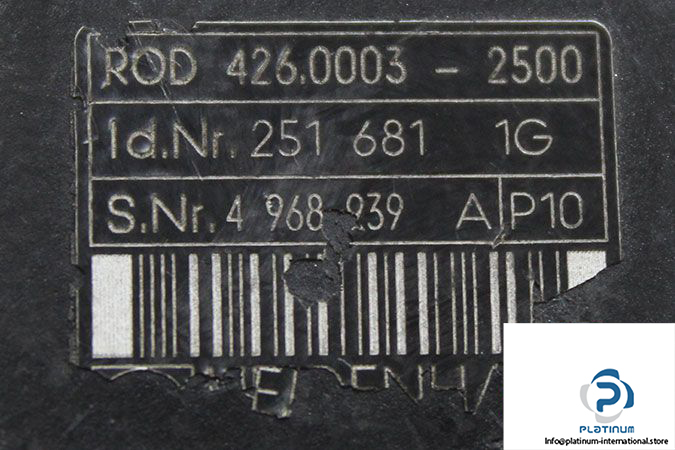

Model: ROD 426.0003-2500

ID No.: 251 681 1G

S No.: 4 968 939 A

Flange Design	Synchro flange
Shaft Design	Solid shaft
Shaft Diameter	6 mm
Voltage Supply	5 VDC
Resolution	2500 PPR (Pulse per revolution)
Max. Current Consumption	120 mA
Signal Output	TTL (RS 422)
Max Speed	16000 rpm
Max. Pulse Frequency	300 kHz
Protection Class	IP67 at housing, IP64 at shaft inlet
Max Temperature	100 °C
