Heidenhain ROD 430 5000 01-03 Incremental Encoder
중고
요청 시 제공 가능
199,99$
INCREMENTAL ENCODER
Heidenhain ROD4305000 01-03 incremental encoder with HTL interface, 10“30 V supply, 50“5000 output pulses, IP67/IP64 protection, and -20 to 100 °C operating range.
방대한 재고
글로벌 배송
전문 지원
품질 보장

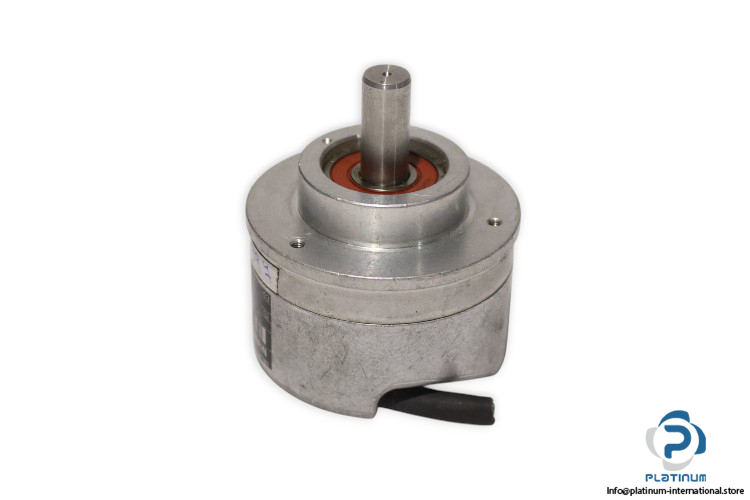

Heidenhain ROD4305000 01-03 Incremental Encoder
The Heidenhain ROD4305000 01-03 is a high-precision incremental encoder designed for reliable position and speed feedback in industrial automation systems. With HTL interface, wide voltage range, and robust protection, it ensures dependable performance even in harsh operating conditions.
Manufacturer: Heidenhain
Type: Incremental Encoder

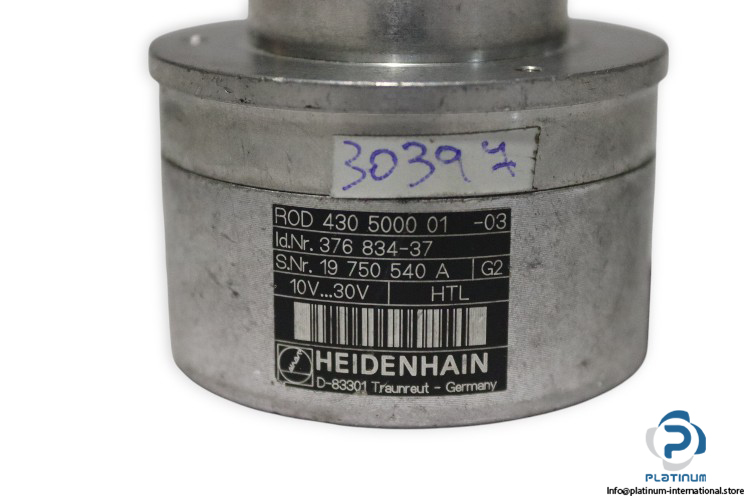

Model: ROD4305000 01-03
ID No.: 376-834-37
Serial No.: 19750540 A/G2
| Voltage | 10 to 30 V |
| Interface | HTL |
| Output Pulse | 50 to 5000 lines |
| Consumption Current | < 70 mA |
| Operating Temperature | -20 to 100 °C |
| Protection | IP67 at housing; IP64 at shaft end |
