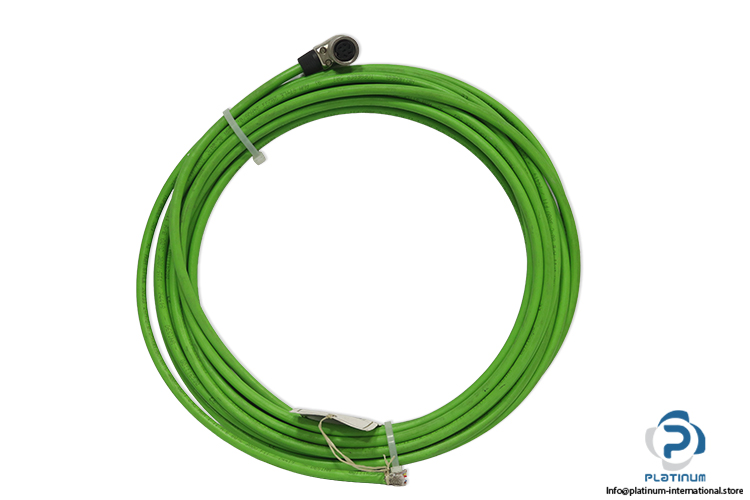

Helukabel Topgeber 503 Feedback Cable
신제품
재고 있음1 단위즉시 배송 가능
Feedback Cable
A durable industrial feedback cable designed for encoder and motor feedback systems, supporting both flexible motion and fixed installation with excellent electrical performance.
방대한 재고
글로벌 배송
전문 지원
품질 보장

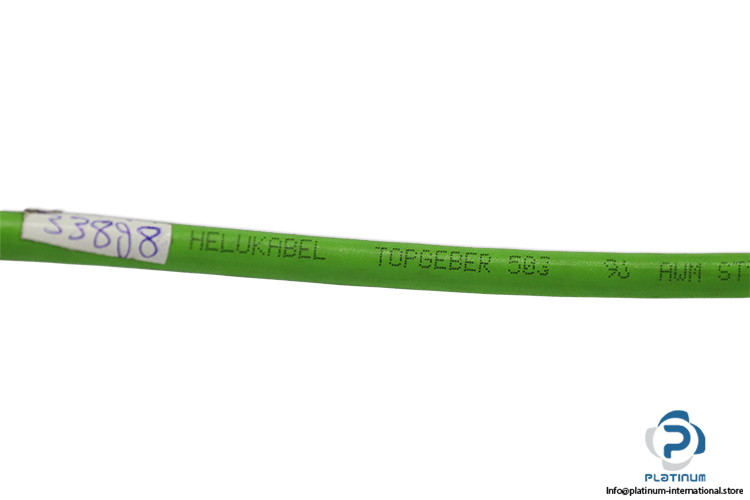

HELUKABEL TOPGEBER 503 Feedback Cable
A high-quality feedback cable designed for encoder and motor feedback applications in industrial automation systems. Engineered for both flexible and fixed installations, this cable ensures reliable signal transmission and long-term performance in demanding environments. Manufacturer: HELUKABEL
Type: Feedback Cable
Model: TOPGEBER 503

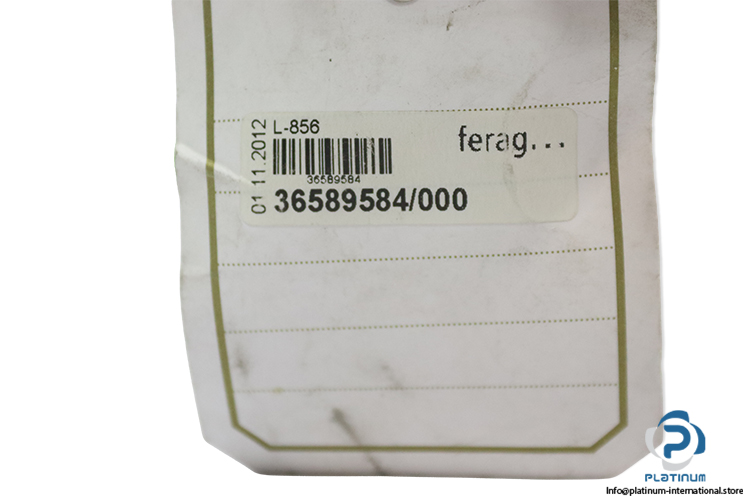

MRN: 36589584 / 000
Code: L-856

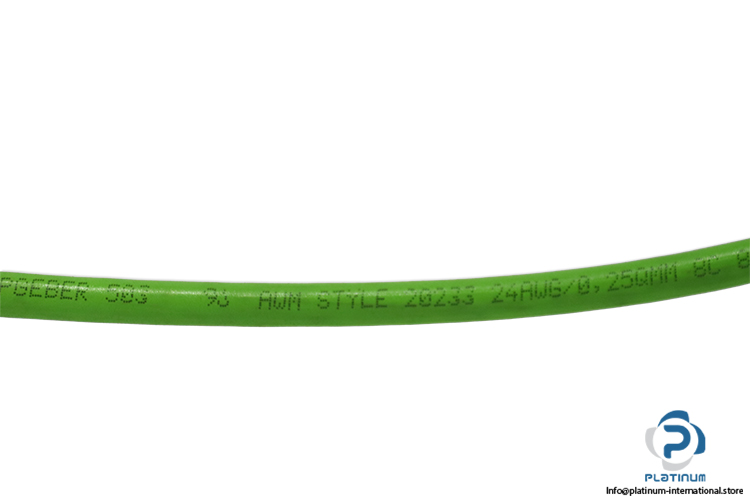

| AWM Style | 20233 |
| Temperature Range (Flexing) | -30°C to +80°C |
| Temperature Range (Fixed Installation) | -40°C to +80°C |
| Nominal Voltage (Siemens) | 30 V |
| Nominal Voltage (Bosch Rexroth / Lenze) | 300 V |
| A.C. Test Voltage | 50 Hz |
| Mutual Capacitance Core/Core | approx. 70 pF/m at 800 Hz |
| Mutual Capacitance Core/Screen | approx. 110 pF/m at 800 Hz |
| Insulation Resistance | min. 20 MΩ × km |
| Coupling Resistance | max. 250 Ω |
| Minimum Bending Radius (Flexing) | 10 × cable diameter |
| Minimum Bending Radius (Fixed Installation) | 6 × cable diameter |
| Additional Information | Further details on request |
