Motion Control Rotary Encoders

Hengstler RI58-O/2500AS.41TD Incremental Encoder

Name: HENGSTLER RI58-O/2500AS.41TD INCREMENTAL ENCODER
SKU: 965599
Price: 315.00 USD
Availability: InStock






신제품

재고 있음2 단위즉시 배송 가능

315,00$

증분 인코더 HENGSTLER RI 58-O/2500AS.41TD, 2500 PPR, 솔리드 샤프트(6 mm), 5 VDC 입력, RS 422 + Sense 출력 및 IP65/64 보호 등급. M23 방사형 커넥터.

제조업체

HENGSTLER

SKU

965599

카테고리

Rotary Encoders

상태

신제품

2500 422 5 58-O/2500AS.41TD Automation Connector Encoder Hengstler Incremental Industrial IP65 M23 PPR RI RS Sensor shaft Solid VDC

방대한 재고

글로벌 배송

전문 지원

품질 보장

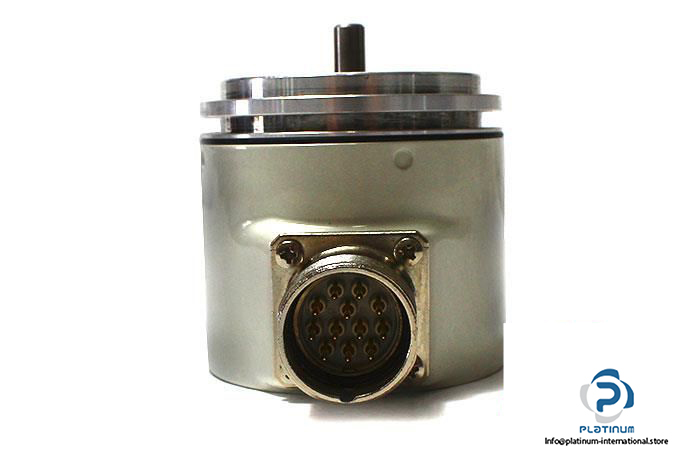

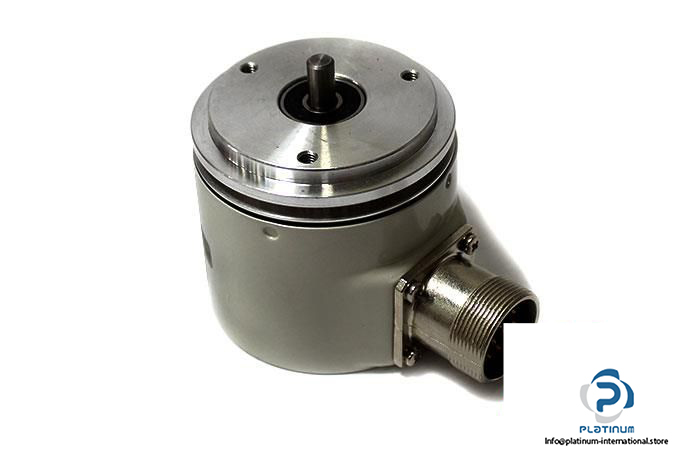

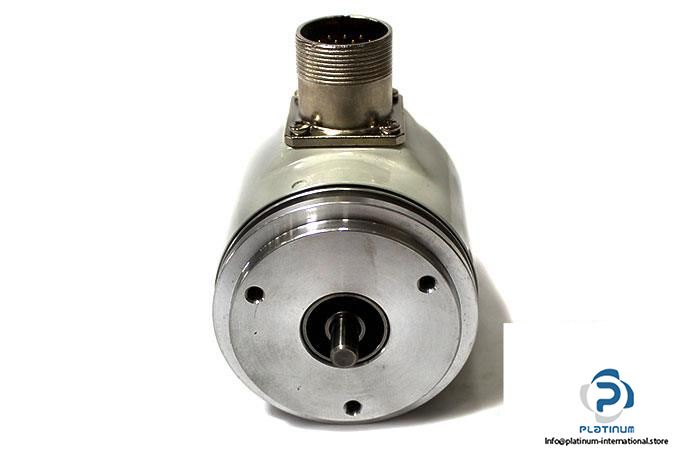

HENGSTLER RI 58-O/2500AS.41TD INCREMENTAL ENCODER

The Hengstler RI 58-O/2500AS.41TD is a high-precision incremental encoder engineered for reliable performance in industrial automation systems. With a resolution of 2500 PPR and robust IP65/64 protection, it™s ideal for demanding environments.

Manufacturer: HENGSTLER

Type: Incremental Encoder

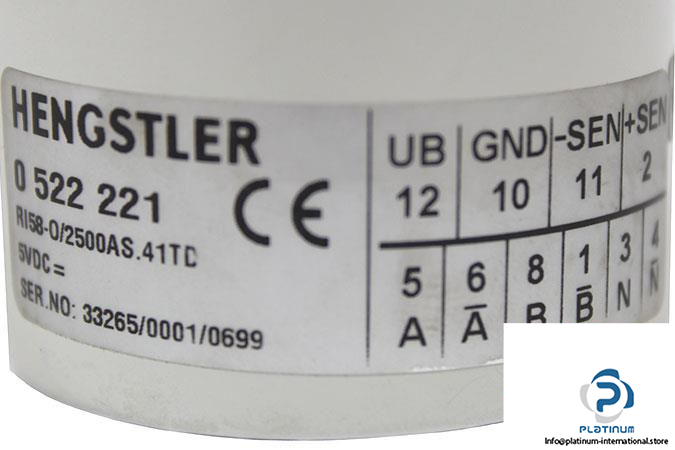

Model: RI 58-O/2500AS.41TD

Part No.: 0522221

Serial No.: 33265/0001/0699

Flange Type	Synchro Flange
Shaft Type	Solid Shaft
Shaft Diameter	6 mm
Resolution	2500 pulses per revolution (PPR)
Voltage Supply	5 VDC
Output Circuits	RS 422 + Sense
Output Frequency	0 / 100 KHz
Connection Type	M23 connector (Conin), Radial
Protection Class	IP65/64
Operating Temperature	-10 / 70 °C
