Motion Control Rotary Encoders

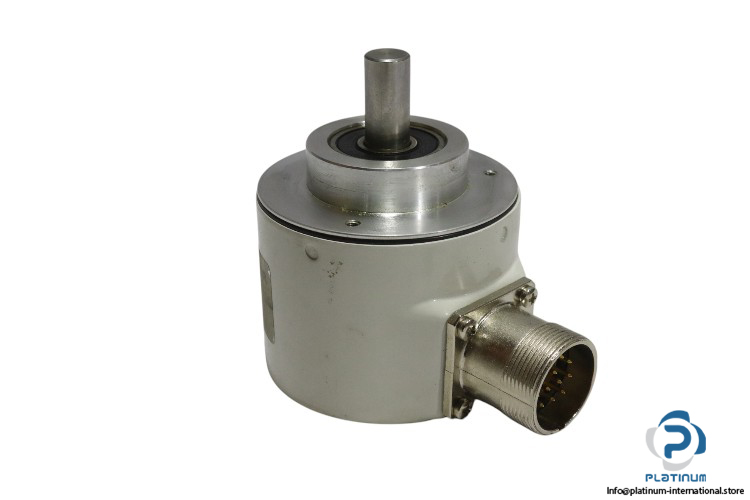

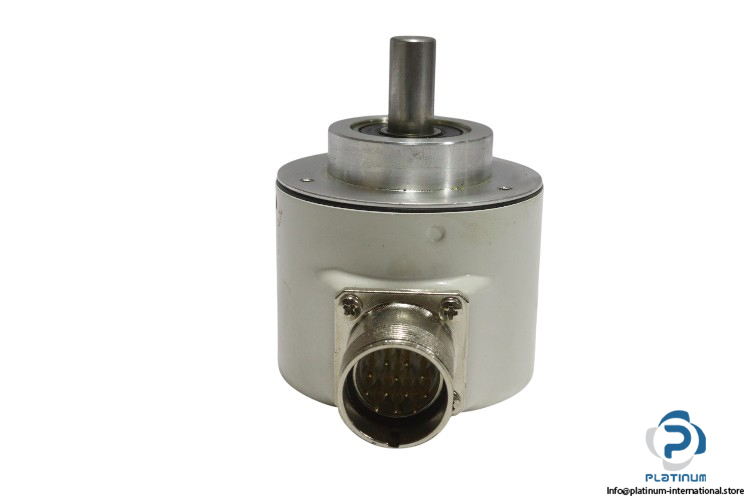

Hengstler RI58-O/50EK.42KD Incremental Encoder

Name: HENGSTLER RI58-O/50EK.42KD INCREMENTAL ENCODER
SKU: 1056504
Availability: LimitedAvailability

hengstler-RI58-0_50EK.42KD-incremental-encoder-(new)

hengstler-RI58-0_50EK.42KD-incremental-encoder-(new)-1

hengstler-RI58-0_50EK.42KD-incremental-encoder-(new)-2

hengstler-RI58-0_50EK.42KD-incremental-encoder-(new)-3

hengstler-RI58-0_50EK.42KD-incremental-encoder-(new)-4

신제품

재고 있음2 단위즉시 배송 가능

INCREMENTAL ENCODER

High-precision incremental encoder with solid stainless steel shaft, IP65 protection, and 50 PPR. Built for industrial applications with radial M23 connection and 10“30 V DC supply.

제조업체

HENGSTLER

SKU

1056504

카테고리

Rotary Encoders

상태

신제품

10 50 Aluminum Automation Connector Device Encoder Feedback Hengstler High-Speed Housing Incremental Industrial IP65 M23 mm Model PPR RI58O50EK42KD Rotary shaft Solid

방대한 재고

글로벌 배송

전문 지원

품질 보장

HENGSTLER RI58O50EK42KD INCREMENTAL ENCODER

Compact and robust incremental encoder designed for precision position sensing in demanding industrial environments. Engineered by Hengstler with high-quality materials, this unit delivers accurate feedback and long service life, even under high-speed operations.

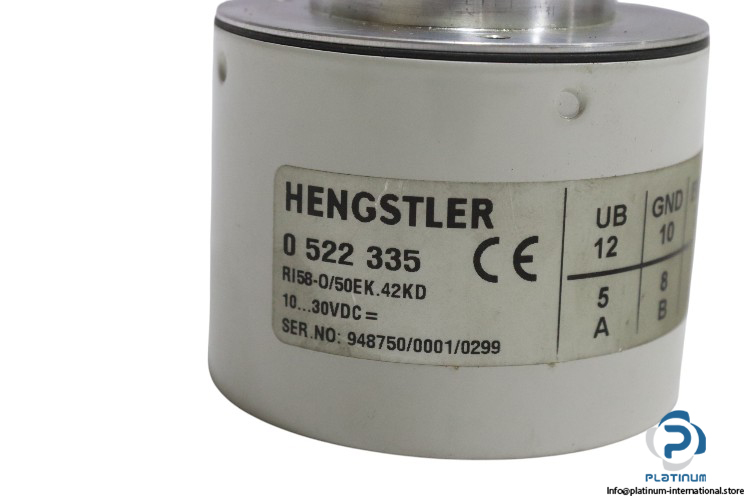

Manufacturer: Hengstler

Type: Incremental Encoder

Model: RI58O50EK42KD

Part No.: 0 522 335

Comas Part No.: 0519.305.801.002

Flange Type	Clamping Flange
Shaft Type	Solid Shaft
Shaft Diameter	10 mm
Housing Diameter	58 mm
Resolution	50 pulse per revolution (PPR)
Voltage Supply	10 to 30 V DC
Output	Push-pull

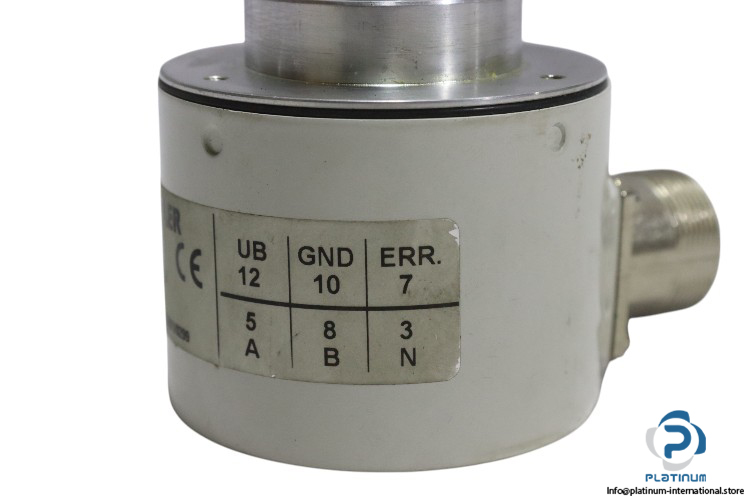

Connection	M23 connector, 12 pole, radial, cw
Material Shaft	Stainless Steel
Material Housing	Aluminum
Protection Class	IP65
Max. Speed	10000 rpm
Temperature Range	-10 to 70 °C
