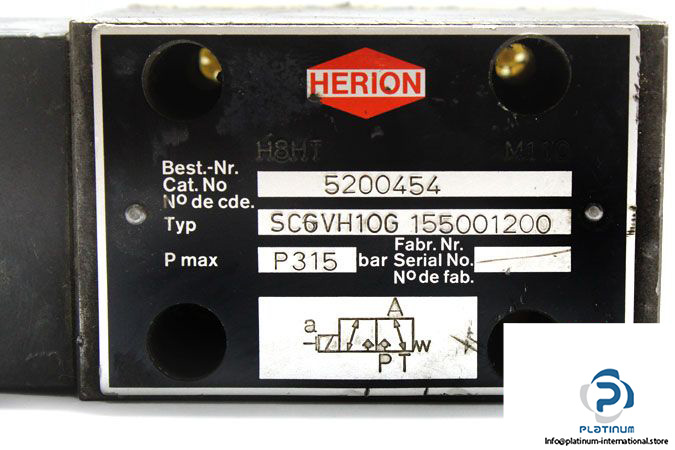

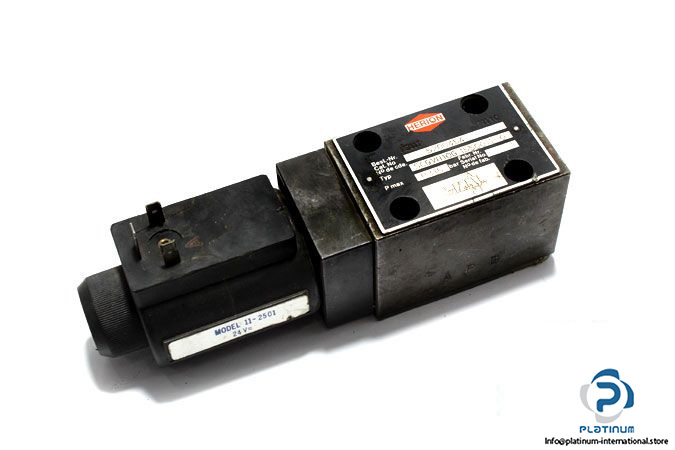

Herion SC6VH1OG 155001200 Direct Operated Directional Control Valve
Manufacturer: HERION
Type: Direct Operated Directional Control Valve
Model: SC6VH10G 155001200
Best Nr.: 5200454

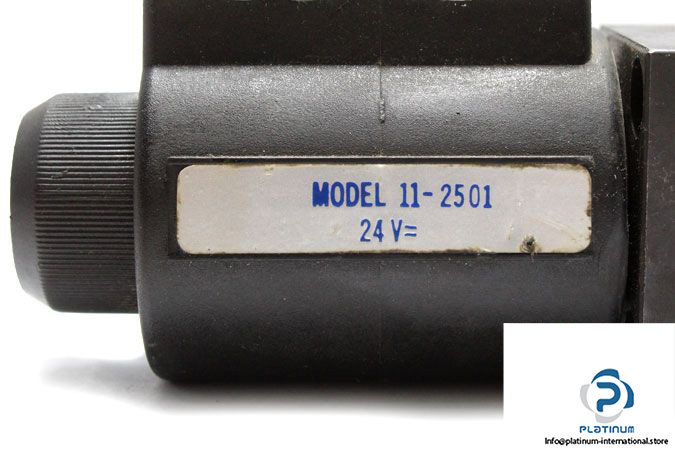

Coil Model: 11-2501
Nominal Size: NG 6
Type of Actuation: Electrically
Max. Working pressure (Port P, A, B): 315 bar
Max. Pressure (Port T): 210 bar
Max. Flow Rate: 20 l/min
Hydraulic Connection: Sub-Plate
Seals: NBR
Fluid Temperature Range: -20 ….. +70 °C
Nominal Voltage per Coil: 24 VDC
Weight: 1.8 kg
