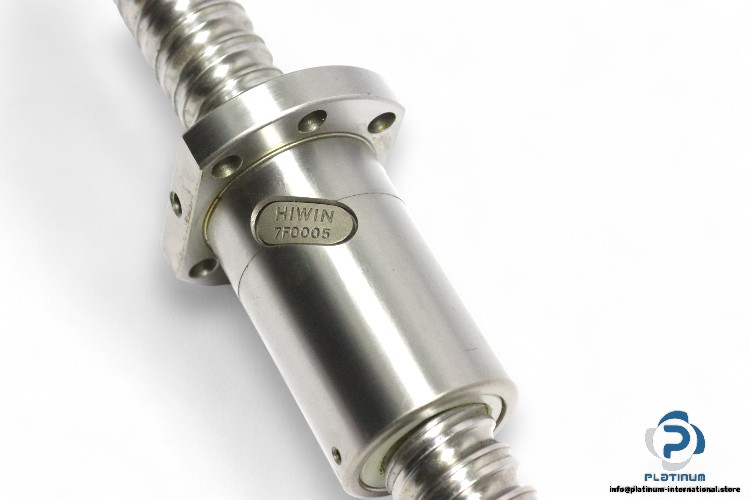

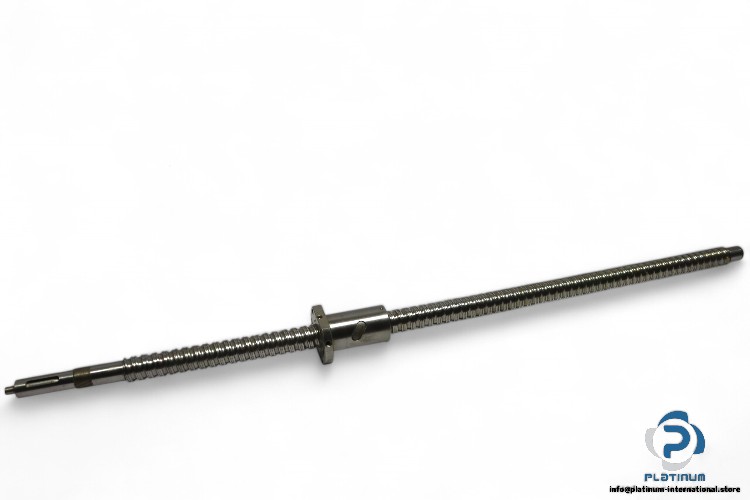

Hiwin 7F0005 Ball Screw
Flange Nut Ball Screw (Model: 7F0005)
Manufacturer: Hiwin
Type: Flange Nut Ball Screw
Model: 7F0005
The Hiwin Flange Nut Ball Screw (Model: 7F0005) is designed for high precision and reliability in linear motion applications. This ball screw ensures smooth and accurate movement with excellent load-carrying capacity and durability.
- Manufacturer: Hiwin
- Type: Flange Nut Ball Screw
- Model: 7F0005
- Size: 25 x 10 R
- Nominal Diameter (dN): 25 mm
- Lead (P): 10 mm
- Number of Starts: 1
- Direction of Lead: Right-Hand Thread
- Threaded Length: 735 mm
- Total Screw Length: 870 mm
