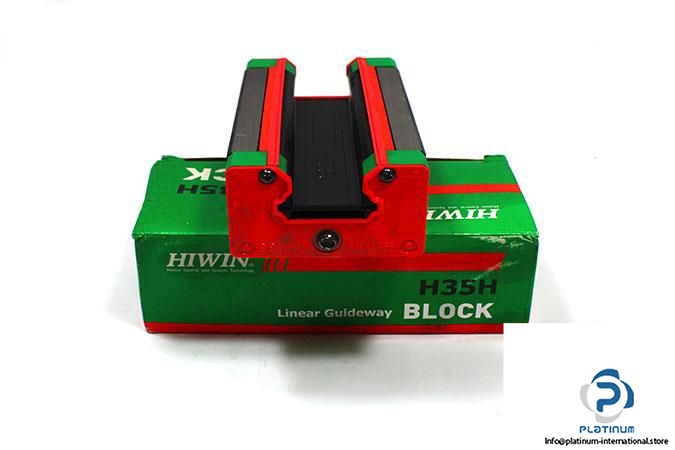

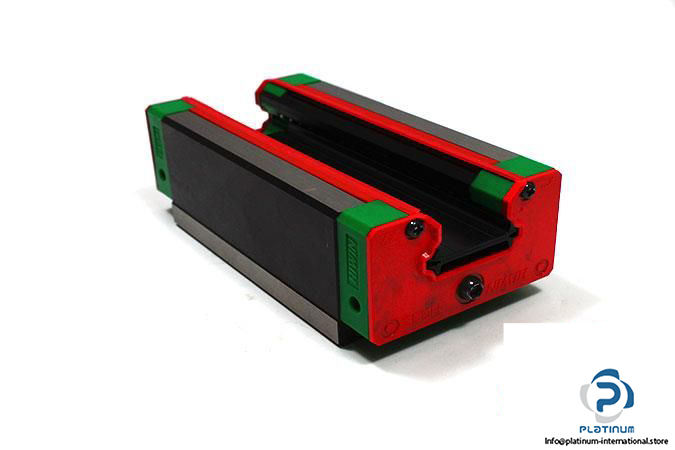

Hiwin HGH35HA Linear Guideway Block
HIWIN HGH35HA LINEAR GUIDEWAY BLOCK
The Hiwin HGH35HA linear guideway block is designed for super heavy load industrial applications where high precision and rigidity are required. This square-type block supports high dynamic and static loads with top mounting capability and precision preload control.
Manufacturer: Hiwin
Type: Linear Guideway Block

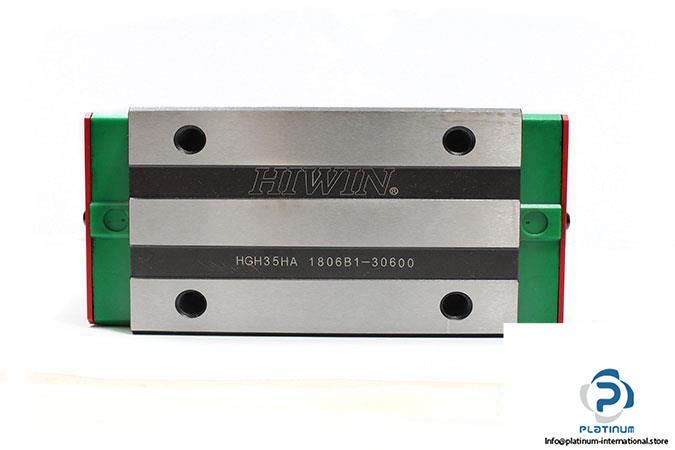

MNR: HGH35HA 1806B1-30600
| Size | 35 mm |
| Block Height | 47.5 mm |
| System Height | 55 mm |
| Block Width (W) | 70 mm |
| Block Length (L) | 138.2 mm |
| Thread Size | M8x25 |
| Distance Between Holes | 50, 72 mm |
| Rail Width | 34 mm |
| Rail Height | 29 mm |
| Block Type | Square |
| Load Type | Super Heavy Load |
| Block Mounting Type | From Top |
| Preload Code | ZA |
| Basic Dynamic Load Rating | 77.9 kN |
| Basic Static Load Rating | 122.77 kN |
