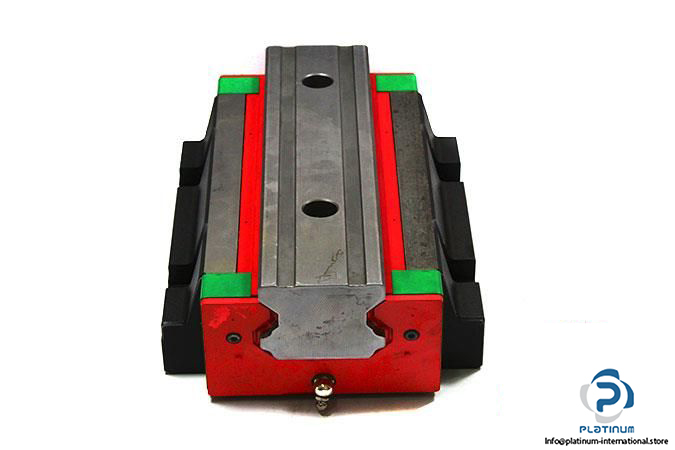

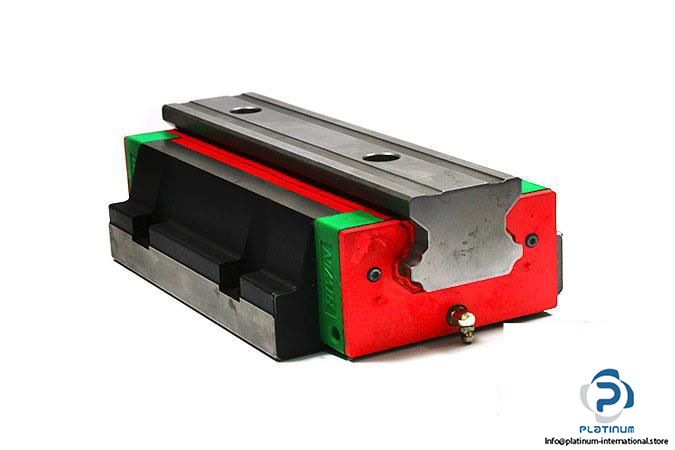

Hiwin HGW65HC Linear Guideway Block
HIWIN HGW65HCC LINEAR GUIDEWAY BLOCK
Engineered for super heavy-load applications, the Hiwin HGW65HCC linear guideway block belongs to the HG Series and features high rigidity and precision. Designed with a flange-type body and dual mounting options, it offers optimal performance in demanding motion control systems.
Manufacturer: Hiwin
Type: Linear Guideway Block

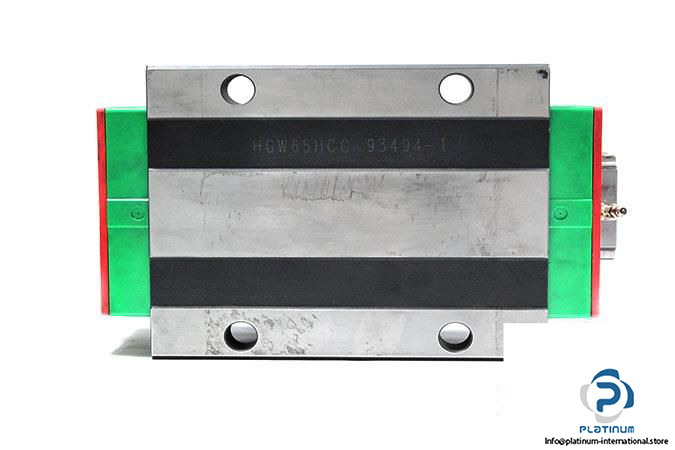

MNR: HGW65HCC 93494-1
| Size | 65 mm |
| Block Height | 75 mm |
| System Height | 90 mm |
| Block Width (W) | 170 mm |
| Block Length (L) | 259.6 mm |
| Thread Size | M16 x 50 |
| Distances Between Holes | 142 mm, 110 mm |
| Rail Width | 63 mm |
| Rail Height | 53 mm |
| Block Type | Flange |
| Load Type | Super Heavy Load |
| Block Mounting Type | Top or Bottom |
| Series | HG Series; Heavy Load Ball Type Linear Guideway |
| Basic Dynamic Load Rating | 277.8 kN |
| Basic Static Load Rating | 420.17 kN |
