Hiwin MGN12C Linear Guideway Block
재고 있음26 단위즉시 배송 가능
34,51$
Hiwin MGN12C Linear Guideway Block
LINEAR GUIDEWAY BLOCK Hiwin MGN12C 표준 블록으로 12mm 레일 폭용으로 설계되었으며, 2.84 kN 동적 하중 및 3.92 kN 정적 하중 용량을 제공하여 컴팩트하고 고정밀 선형 구동 시스템에 적합합니다.
방대한 재고
글로벌 배송
전문 지원
품질 보장

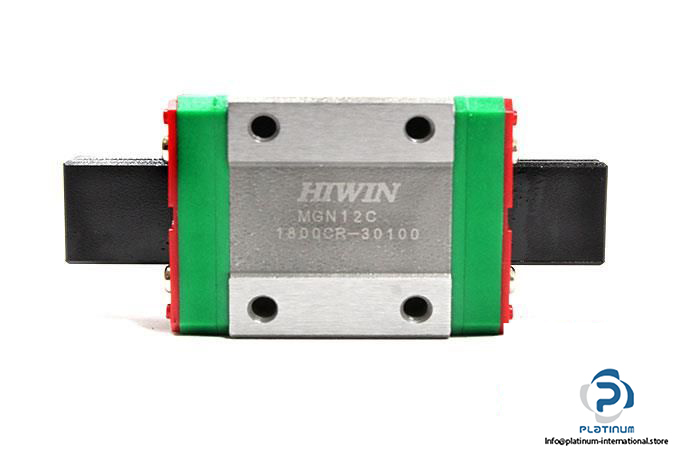

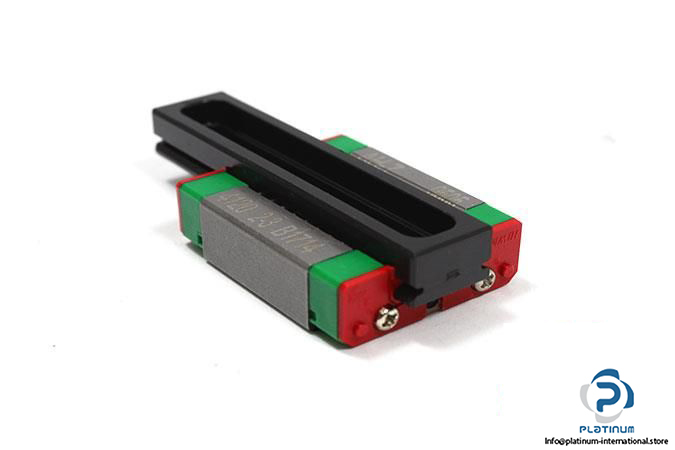

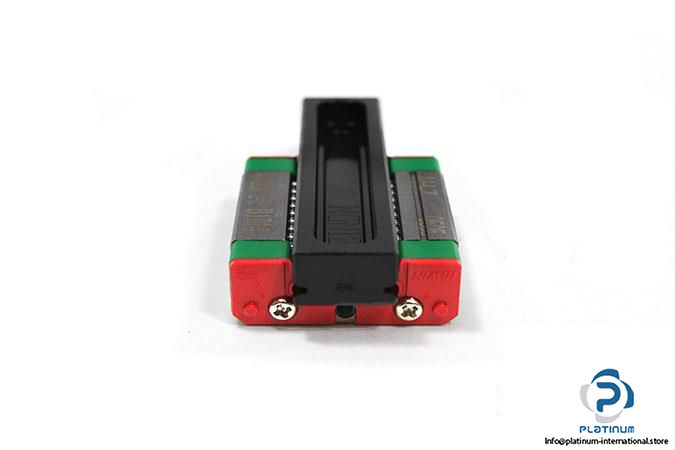

HIWIN MGN12C 1800CR-30100 LINEAR GUIDEWAY BLOCK
This Hiwin linear guideway block is engineered for smooth linear motion and high load capacity in precision automation and CNC systems. Compact and reliable, it ensures accurate positioning and stable performance under dynamic and static loads.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGN12C 1800CR-30100
| Size | 12 mm |
| Block Type | Standard |
| System Height H | 13 mm |
| Block Height (H-H1) | 10 mm |
| Block Width W | 27 mm |
| Block Length L | 34.7 mm |
| Distance Between Holes | 20 mm, 15 mm |
| Mounting Bolt for Rail | M3 x 8 |
| Basic Dynamic Load Rating C | 2.84 kN |
| Basic Static Load Rating C‚ | 3.92 kN |
| Rail Width | 12 mm |
| Rail Height | 8 mm |
| 사양 | 가치 |
|---|---|
| Weight | 0,03 kg |
| Condition | New |
| Manufacturer | HIWIN |
| Type of Product | Linear Guideway Block |
| Shelf No. | 250631 |
| MNR | MGN12C |
