Hiwin QHH30HA Linear Guideway Block
신제품
재고 있음10 단위즉시 배송 가능
136,97$
LINEAR GUIDEWAY BLOCK Hiwin QHH30HA 초중량 부하 응용을 위한 선형 블록으로, SynchMotion 기술, 사각형 구조 및 상단 장착 디자인을 특징으로 하여 부드럽고 정밀한 움직임을 제공합니다.
방대한 재고
글로벌 배송
전문 지원
품질 보장

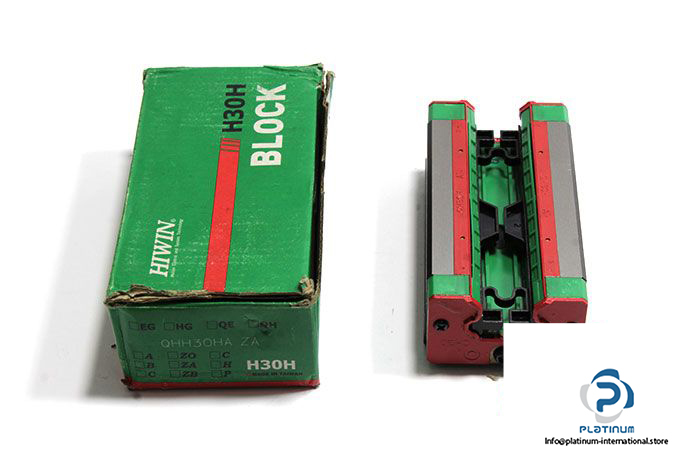

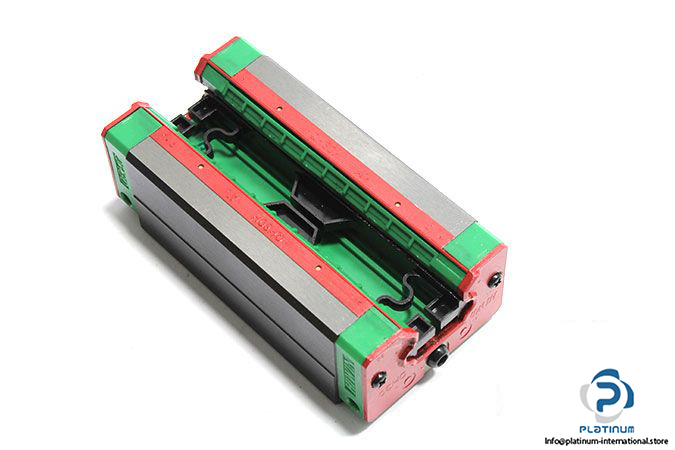

HIWIN QHH30HA LINEAR GUIDEWAY BLOCK
The Hiwin QHH30HA is a high-performance linear guideway block designed for demanding heavy-load applications. Featuring SynchMotion„¢ Technology, this square-type block offers smooth, precise motion with reduced noise and improved lubrication life. Ideal for industrial automation systems requiring high rigidity and load capacity.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QHH30HA

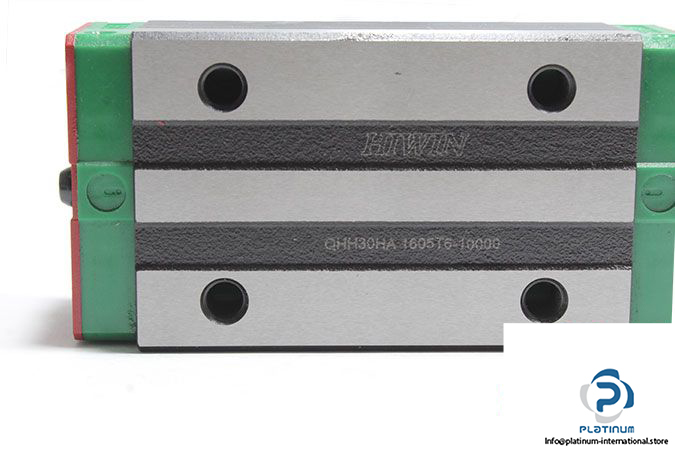

MRN: QHH30HA 1605T6-10000
| Size | 30 mm |
| Total Height H | 45 mm |
| Block Width W | 60 mm |
| Block Length L | 120.4 mm |
| Block Height | 39 mm |
| Distance Between Holes | 40, 60 mm |
| Basic Load Rating, Dynamic (Cr) | 56.7 kN |
| Basic Load Rating, Static (C‚r) | 65 kN |
| Series | QH Series (Heavy Load Type with SynchMotion Technology) |
| Block Type | H (Square Type) |
| Load Type | H (Super Heavy Load) |
| Block Mounting Type | A (From Top) |
