HKT S07 Housing Support
HKT S07 Housing Support

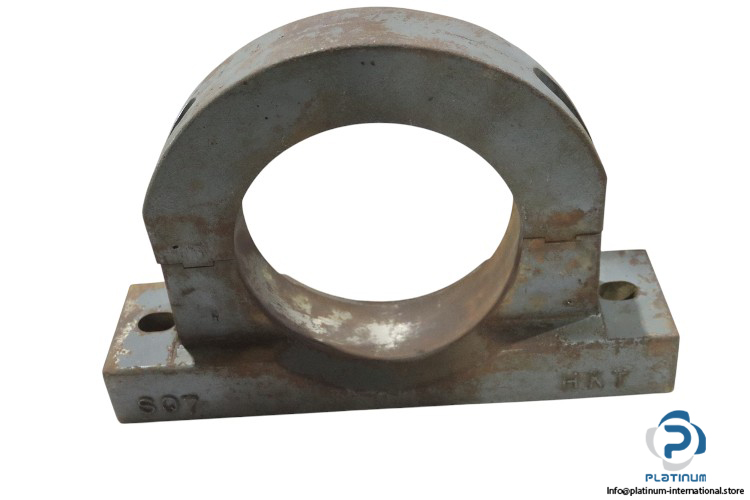

The HKT S07 Housing Support is a durable and precision-engineered component designed for secure shaft mounting in industrial applications. With robust construction and accurate dimensions, it ensures stability and reliable performance in demanding environments.
Manufacturer: HKT
Type: Housing Support
Model: S07

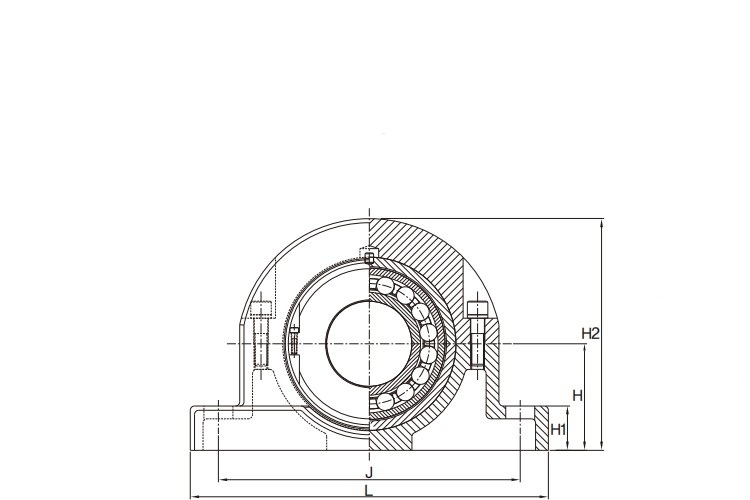

| Shaft Diameter | 100 mm |
| Housing Length | 466 mm |
| Housing Width | 120 mm |
| Housing Height (H2) | 314 mm |
| Housing Foot Height (H1) | 60 mm |
| Mounting Holes Distance (J) | 392 mm |
| H | 143 mm |
| Bolt Size | 2-M24 |
