Honeywell LSA3K Limit Switch Body
신제품
재고 있음1 단위즉시 배송 가능

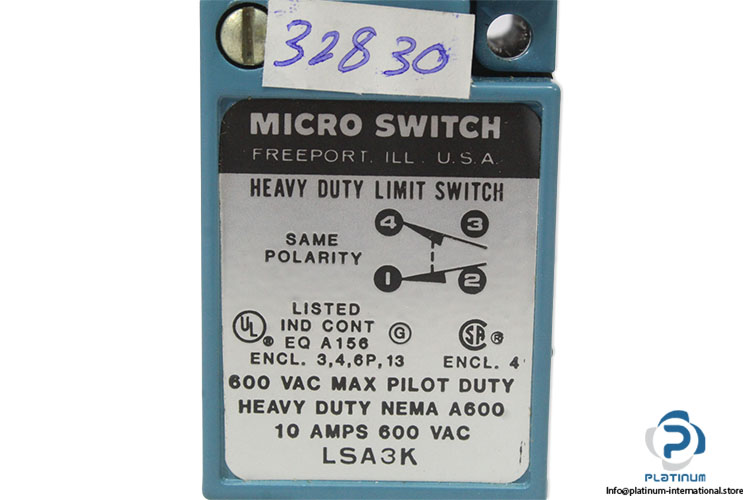

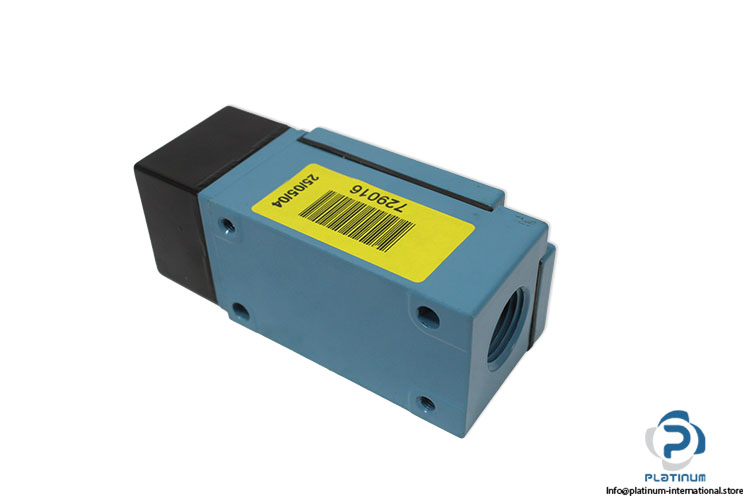

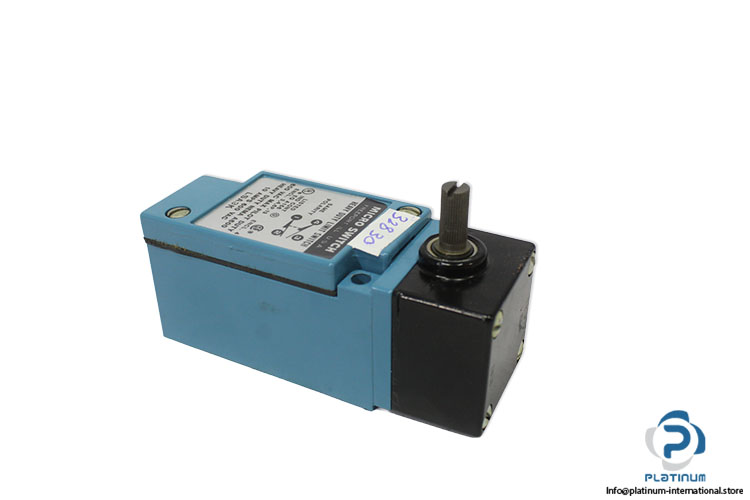

Heavy Duty Limit Switch Body HONEYWELL MICRO SWITCH LSA3K heavy duty limit switch body with snap action contact operation, IP65/66/67 sealing, and durable zinc housing for industrial automation and control systems.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Series | HDLS |
| Code | 729016 |
| Certifications | UL, CSA, CE, UKCA, CCC |
| Reference standards | UL508, CSA 22.2 #14, EN/IEC60947-5-1, GB 14048.5 Housing material :Electrostatic epoxy coated zinc |
| Housing type | HDLS Plug-in, HDLS Non-Plug-in |
| Output Configuration | 1 Normally Open /1 Normally Closed |
| Contact Operation | Snap Action |
| Rated thermal current | 10 A, 2.5 A |
| Rated insulation voltage | 600 V |
| Rated impulse withstand voltage (Uimp) | 2500 V |
| Short circuit protection device (SCPD) type and rating | Class J fuse, rated 10 A, 600 V |
| Pollution degree | 3 |
| Sealing | IP65/66/67; NEMA 1, 3, 3R, 4, 4X, 6, 6P, 12 (without cable), 13 Operating temperature:-12°C to 121°C |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099287 |
| Weight | 0,7 |
