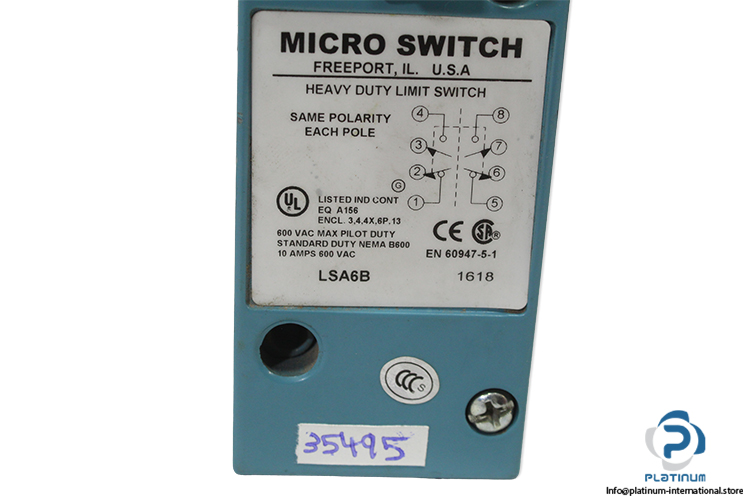

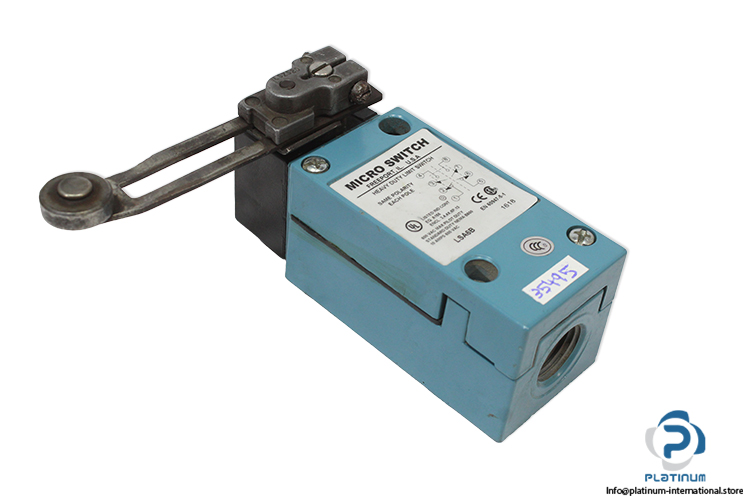

Honeywell LSA6B Roller Lever Limit Switch
Honeywell LSA6B Heavy-Duty Limit Switch “ HDLS Series
The Honeywell LSA6B is a heavy-duty micro switch from the HDLS Series, engineered for reliable position detection and control in demanding industrial environments. It features a side rotary lever with a steel roller for precise mechanical actuation and long service life.
Manufacturer: Honeywell
Type: Micro Switch, Heavy-Duty Limit Switch
Model: LSA6B
Series: HDLS Series
| Head Type | Side Rotary Lever, Steel Roller |
| Output Configuration | 2NC / 2NO |
| Contact Block And Housing Style | Standard Contact, 0.5-14 NPT |
| Switching Voltage (Max.) | 600 V AC |
| Contact Current (Max.) | 10 A |
| Connection | Cable Entry |
| Standard | EN 60947-5-1 |
| Operating Temperature Range | -12°C To 121°C |
