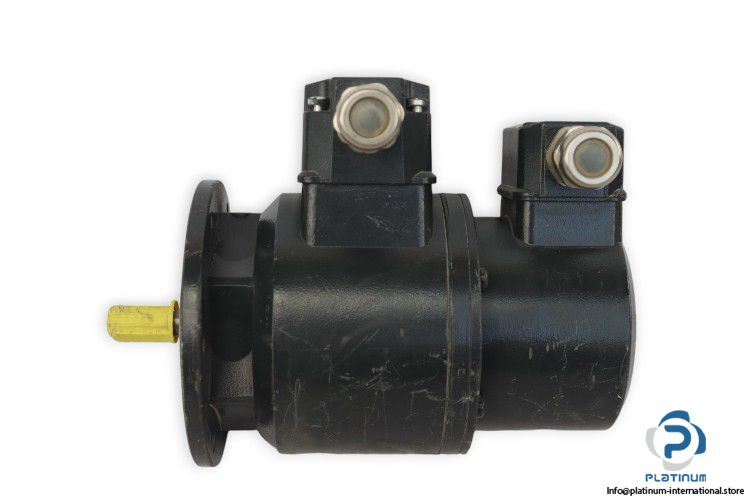

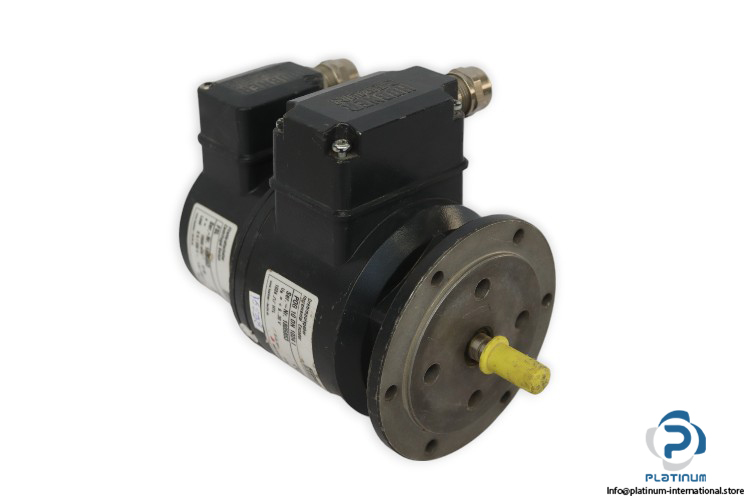

Hubner Berlin POG 10 DN 1024 I + FSL Incremental Encoder
HUBNER BERLIN POG10 DN 1024 I INCREMENTAL ENCODER WITH FSL CENTRIFUGAL SWITCH
The Hubner Berlin POG10 DN 1024 I is a precision-engineered incremental encoder built for high-performance industrial applications. It offers optical sensing with high pulse resolution, rugged construction, and extended temperature tolerance, making it ideal for demanding automation environments. This model includes a robust FSL centrifugal switch attachment for added control functionality.
Manufacturer: Hubner Berlin
Type: Incremental Encoder

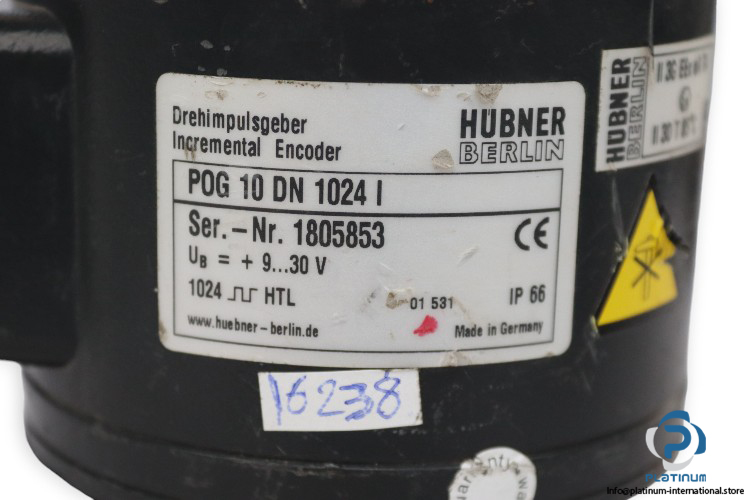

Model: POG10 DN 1024 I
Serial No.: 1805853
| Power Supply | 9 / 30 V DC |
| Consumption Current | ‰¤ 100 mA |
| Principle of Operation | Incremental |
| Shaft Type | Solid Shaft |
| Flange | EURO Flange B10 |
| Sensing Method | Optical |
| Output Stage | HTL |
| Output Frequency | ‰¤ 120 kHz |
| Pulses Per Revolution | 1024 |
| Operating Speed | ‰¤ 12000 rpm |
| Shaft Diameter | 11 mm |
| Size (Flange) | DIA 115 mm |
| Protection Degree | IP66 |
| Material | Housing: Aluminum Die-Cast, Shaft: Stainless Steel |
| Connection | Terminal Box |
| Operating Temperature | -40 / +100 °C |

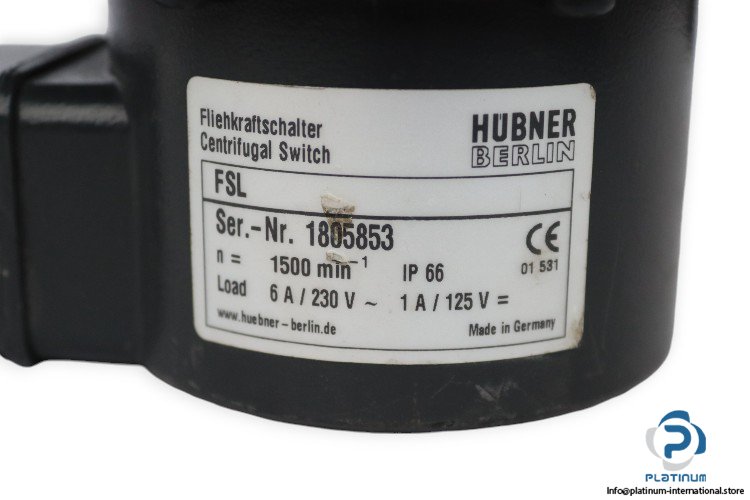

| Attachment | HUBNER FSL CENTRIFUGAL SWITCH |
| Serial No. | 1805853 |
| Load | 6 A / 230 VAC, 1 A / 125 V DC |
| Speed | 1500 rpm |
| Protection Degree | IP66 |
