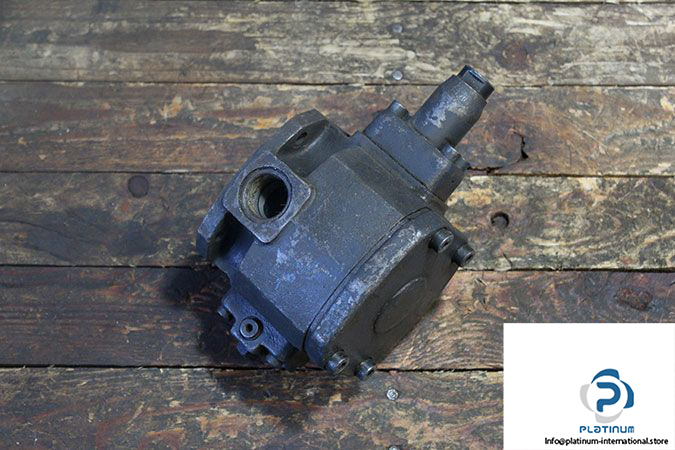

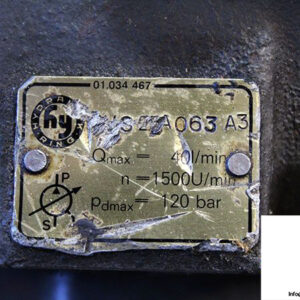

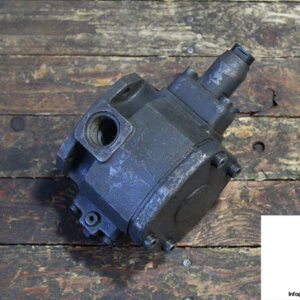

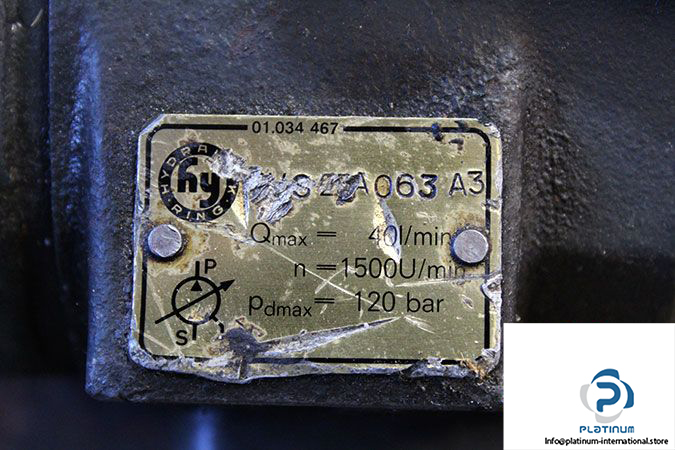

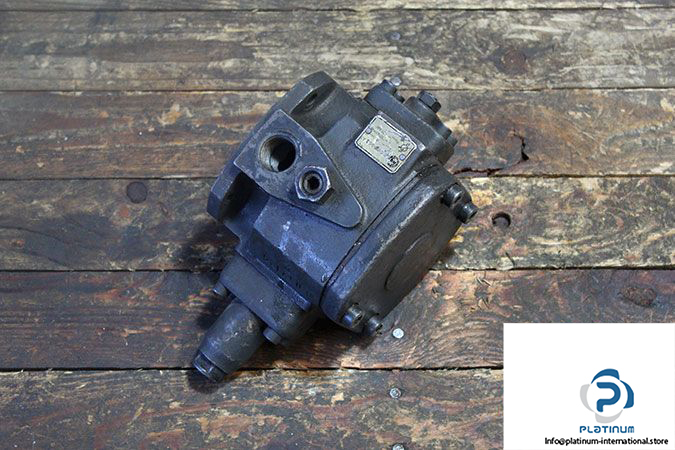

Hydraulik Ring PVS 25 A063A3 Variable Vane Pump

Manufacturer: Hydraulik Ring

Type: Variable vane pump

Model: PVS25A063A3



Size: 25

Displacement: 24 cm³

Direction of Rotation: Clockwise

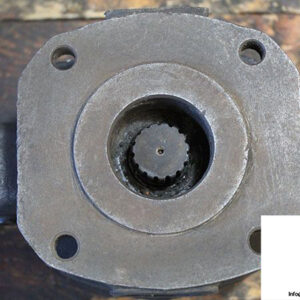

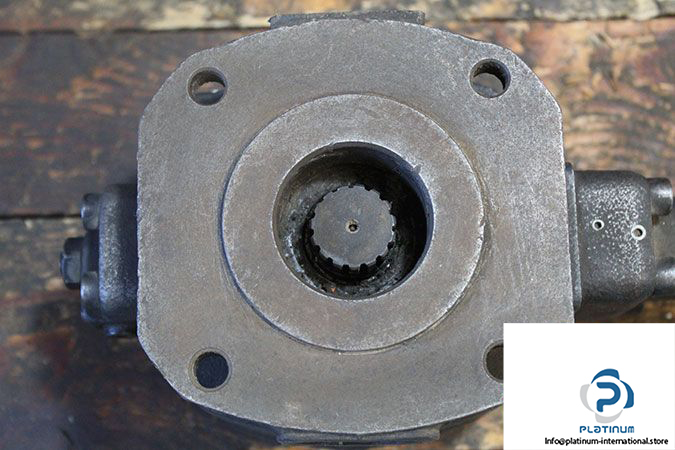

Shaft Diameter: 28 mm

No. of Teeth: 15

Input power: 9.9 KW

Settings Pressure: 63 bar

Max pressure: 120 bar

Speed Range: 1000 …. 1800 rpm

Actual Speed: 1500 min^-1

Flow Rate at 1500 rpm: 35 l/m

Max Flow Rate at 1500 rpm: 40 l/m

Ambient-temperature range: –10 … 70 °C

Viscosity Range: 22 ….  100 mm²/s

Weight: 14 Kg
