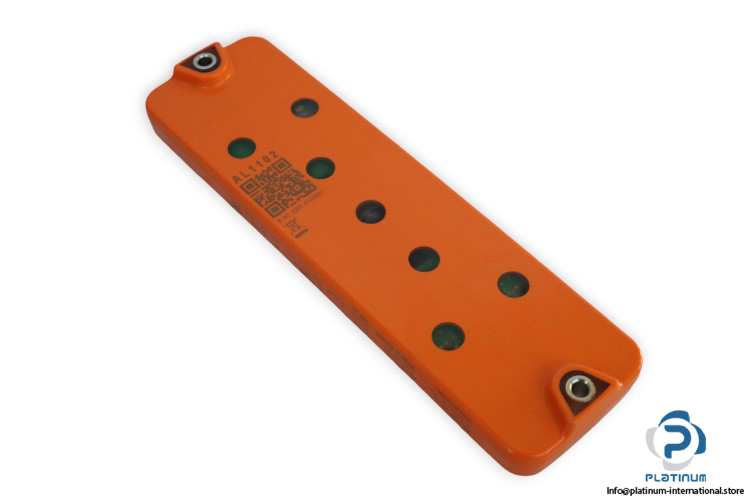

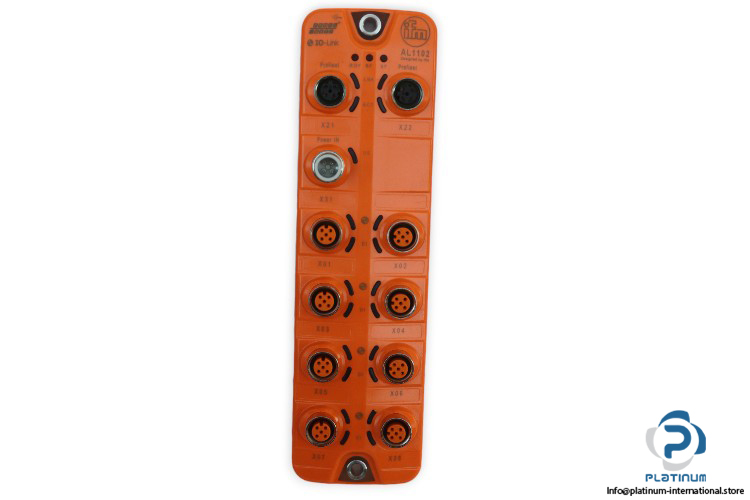

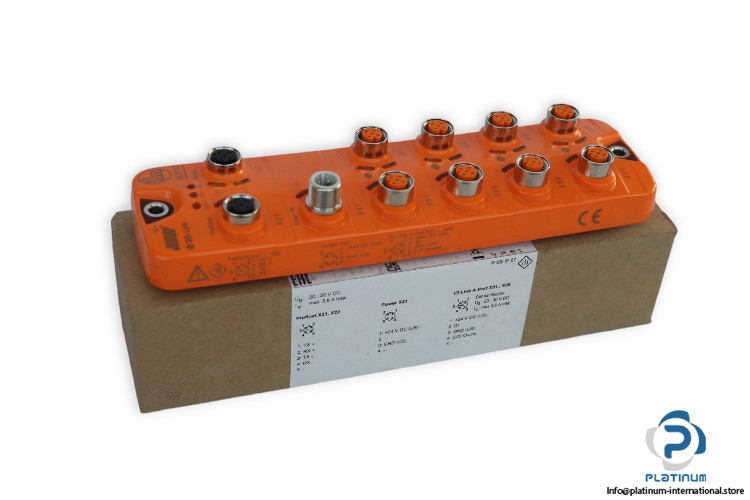

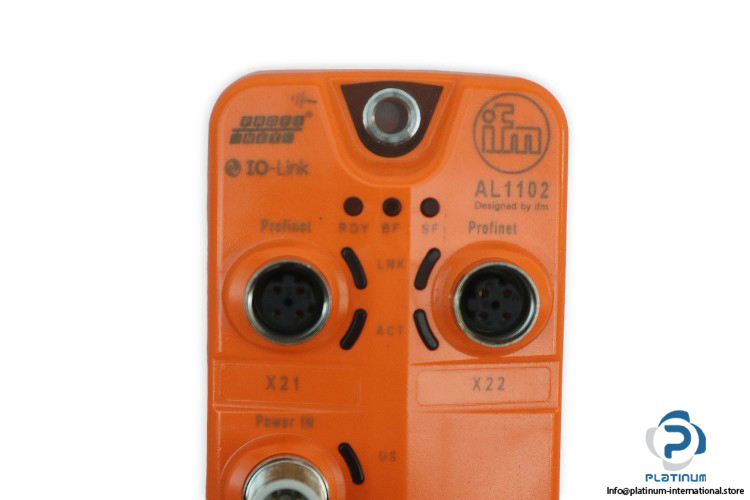

IFM AL1102 Input-Output-Link Master

Manufacturer: IFM
Type: Input-Output Link master with PROFINET interface
Model: AL1102
MNR: SL PN 8P IP67

Application: I/O modules for field applications
Operating voltage: 20 … 30 V DC
Total Operating Current: 3.9 A max.
Max. Sensor supply current: 3.6 A
Number of digital inputs (DI): 16
Number of digital outputs (DO): 8
Communication interface: Ethernet; IO-Link
Transmission rate: 100 MBit/s
Ambient temperature: -25 … 60°C
Protection degree: IP 65, IP 66, IP 67
Housing: rectangular

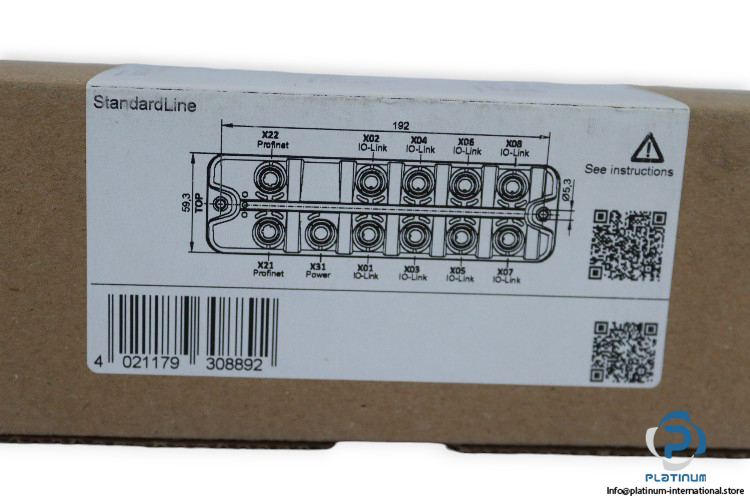

Dimensions: 208 x 59.3 x 38.4 mm
