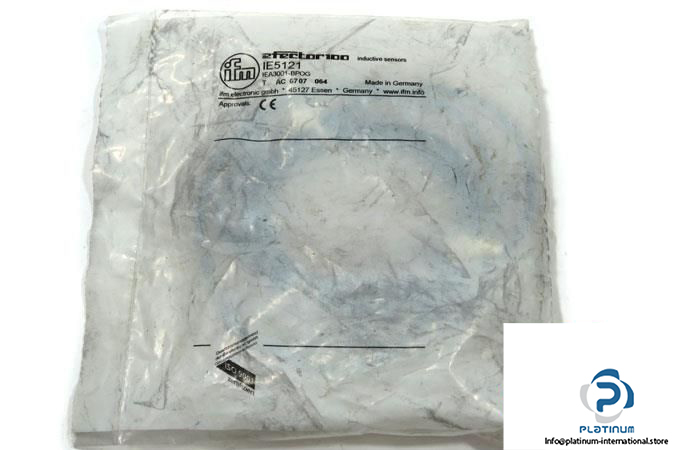

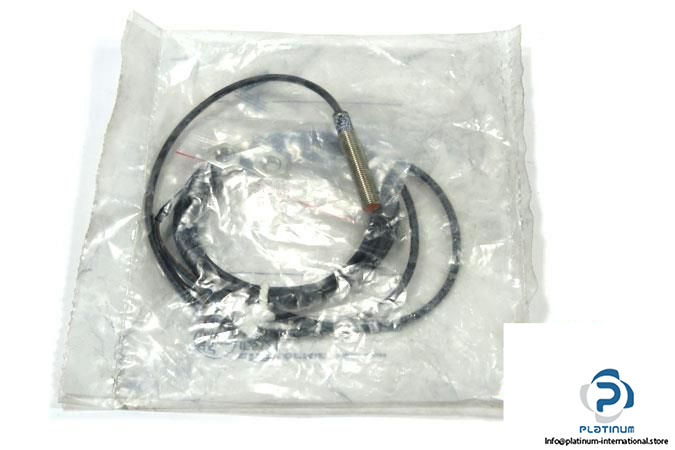

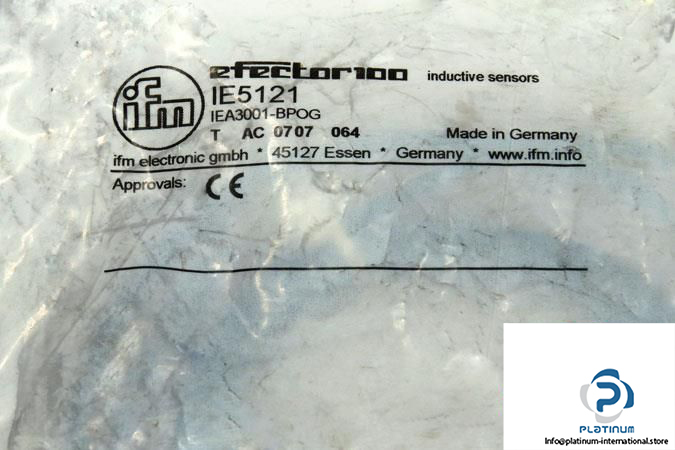

IFM IE5121 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IE5121

MRN: IEA3001-BPOG

Sensing Range: 1 mm

Real Sensing Range: 1 ± 10% mm

Operating Distance: 0 … 0.8 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 200 mA DC

Switching frequency:  750 Hz

Electrical design: PNP

Output Function: Normally open

Connector type, length: Cable, 2 m

Protection Class: III

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 8 , 50 mm

Material: brass white bronze coated; sensing face: PBT

Mounting: Flush mountable

Weight: 52.4 g

Supplied Accessories: 2 lock nuts

Condition: New
