IFM IF-2002-ABOW Inductive Sensor

Manufacturer: ifm

Type: SENSOR

Part No.: IF0001

MRN: IF-2002-ABOW

Sensing Range: 2 mm

Real Sensing Range: 2 ± 10% mm

Operating Distance: 0 … 1.6 mm

Operating Voltage: 180 … 250 V AC, at 47 …63 Hz

Voltage Drop max.: 8.5 V AC

Switching output current: 200 mA DC

Switching frequency: 25 Hz

Output Function: Normally open

Protection Class: II

Enclosure rating: IP67

Housing: threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 12 ,71.5 mm

Material: PBT

Mounting: Flush-mountable

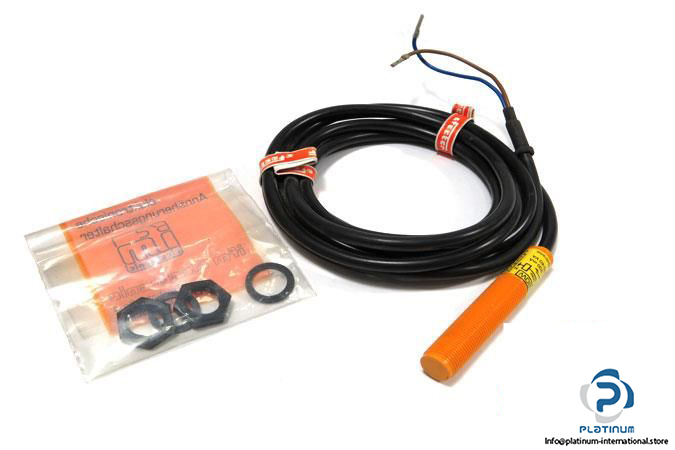

Supplied accessories: 2 lock nuts

Weight: 101.6 g

Connector type, length: Available in 2 m and 6 m PVC cable

Condition: New
