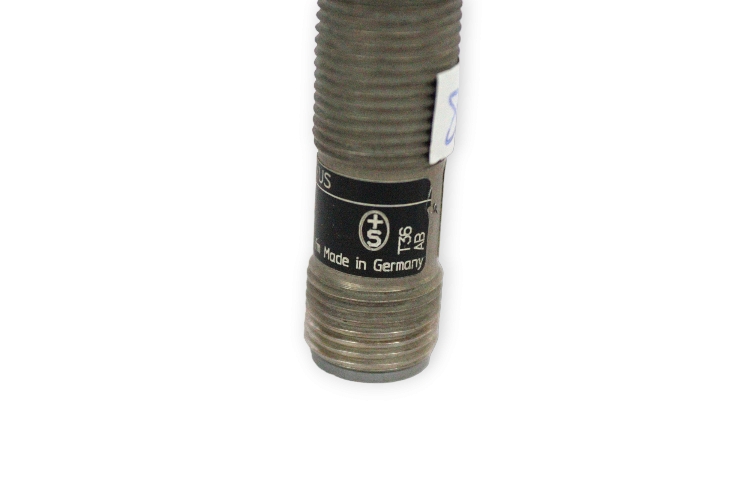

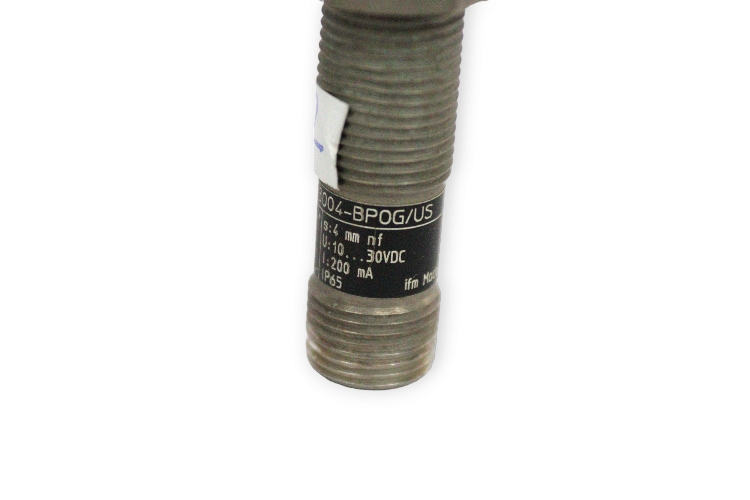

IFM Inductive Sensor IFK3004-BPOG/US
IFM Inductive Sensor IFK3004-BPOG/US is a high-performance sensing solution designed for precise detection in a wide range of industrial applications. Its robust construction and advanced features make it ideal for environments where reliability and accuracy are essential.
- Manufacturer: IFM
- Type: Inductive Sensor
- Model: IFK3004-BPOG/US
- Part No.: IF5493
Technical Data:
- Sensing Range: 4 mm
- Real Sensing Range: 4 ± 10 % mm
- Operating Distance: 0 / 3.24 mm
- Operating Voltage: 10 / 30 VDC
- Switching Output Current: 200 mA DC
- Current Consumption: 10 mA
- Switching Frequency: 300 Hz DC
- Electrical Design: PNP
- Output Function: Normally Open
- Connection Type: M12
- Protection Class: II
- Enclosure Rating: IP65
- Housing: Threaded type
- Ambient Operating Temperature: -25 to 80 °C
- Dimensions: M12, length: 60 mm
- Material: Brass white bronze coated; sensing face: PBT orange
- Mounting: Non-flush mountable
