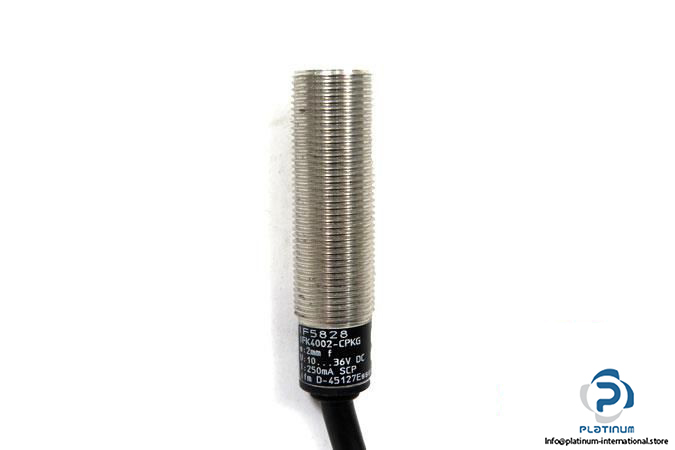

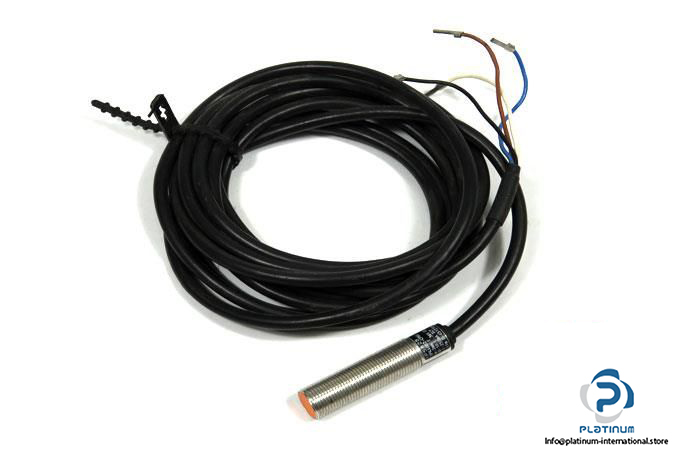

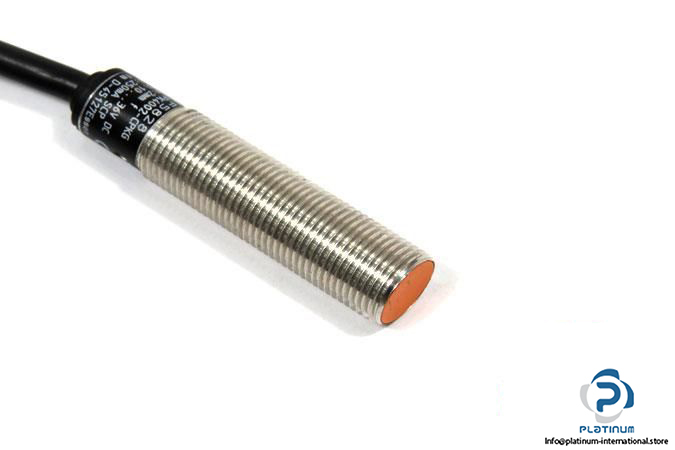

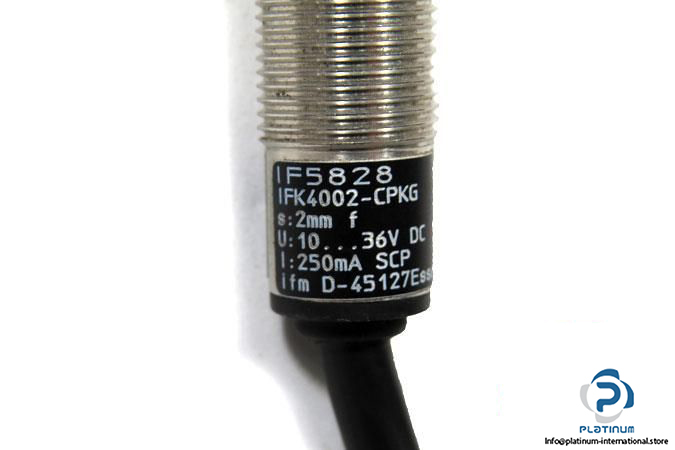

IFM IF5828 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF5828

MRN: IFK4002-CPKG

Sensing Range: 2 mm

Real Sensing Range: 3 ± 10% mm

Operating Distance: 0 … 2.4 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 250 mA DC

Switching frequency: 1200 Hz

Electrical design: PNP

Output Function: Complementary

Connector type, length: PVC Cable, 3 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter: 12 mm

Material: brass nickel-plated; PC

Mounting: Flush mountable

Condition: New
