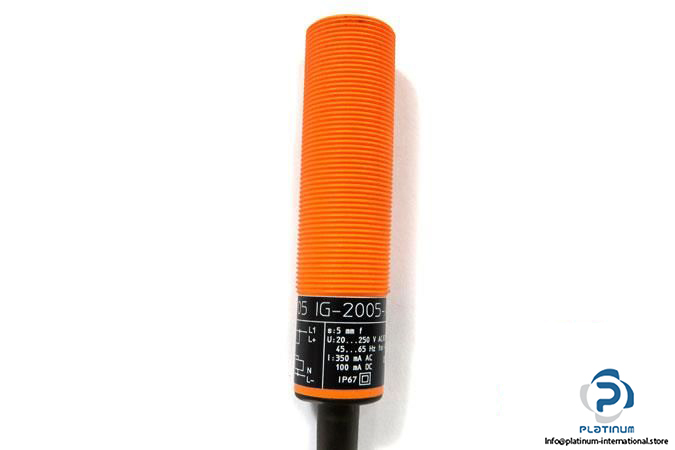

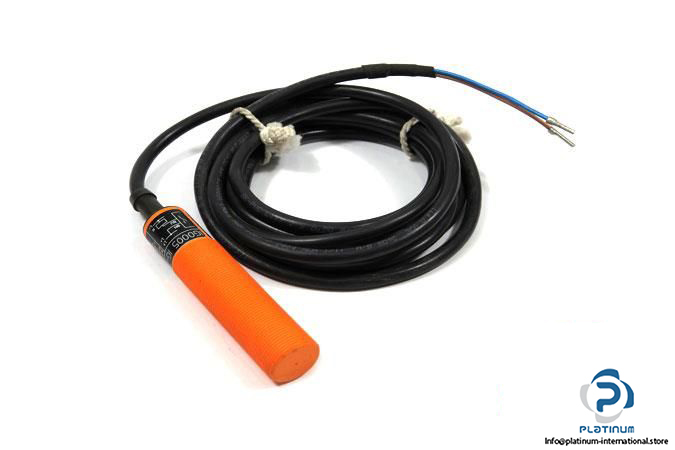

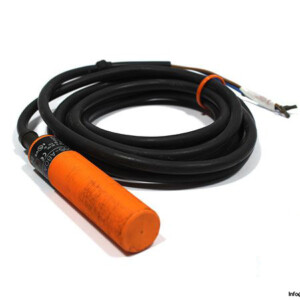

IFM IG0005 Inductive Sensor
신제품
Manufacturer: ifm
Type: INDUCTIVE SENSOR
Part No.: IG0005
MRN: IG-2005-ABOA
Sensing Range: 5 mm
Real Sensing Range: 5 ± 10% mm
Operating Distance: 0 … 4.05 mm

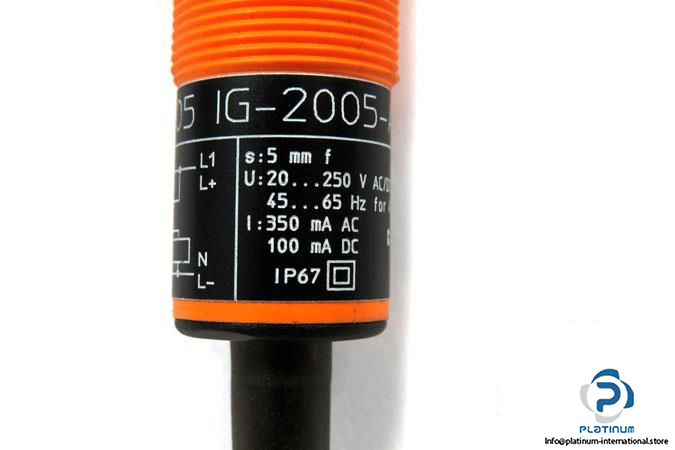

Operating Voltage: 20 … 250 V AC/DC
Switching output current (AC, DC): 350 mA AC,100 mA DC
Switching frequency (AC, DC): 6.5, 6 Hz

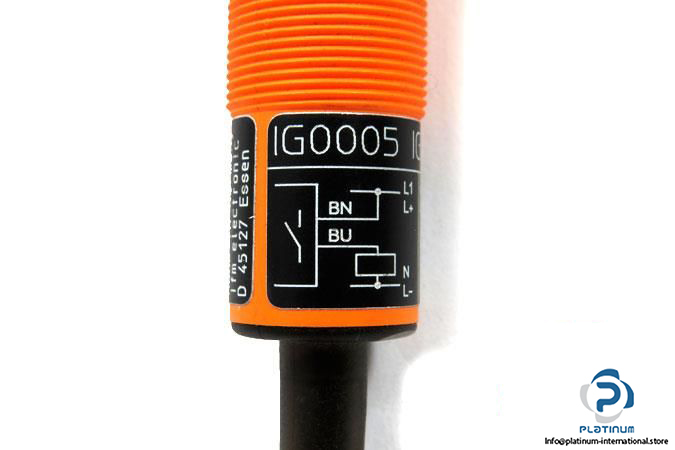

Output Function: Normally open
Connector type, length: PVC Cable, 2 m
Protection Class: II
Enclosure rating: IP67
Housing: Threaded type
Ambient Operating temperature: -25 … 80°C
Diameter, Housing length: 18, 80 mm
Material: PBT
Mounting: Flush mountable
Weight: 117.4 g
Condition: New
