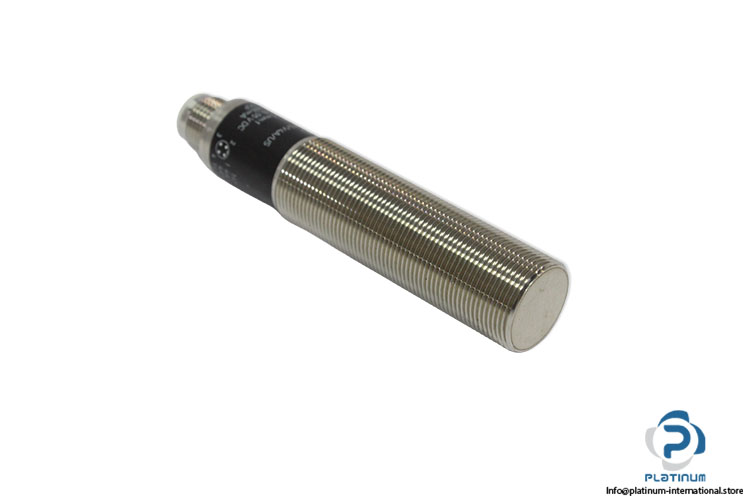

IFM IG5806 Inductive Sensor
재고 있음15 단위즉시 배송 가능
Inductive Sensor IFM inductive sensor with 5 mm sensing range, selectable PNP/NPN output, IP67 protection, and stainless steel threaded housing for industrial automation applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Part No. | IG5806 |
| MRN | IGA2005-FRKG/V4A/US-100-IRF |
| Sensing Range | 5 mm |
| Housing | threaded type |
| Dimensions[mm] | M18 x 1 / L = 90 |
| Operating Distance | 0...4.05 mm |
| Operating Voltage | 10...55 DC |
| Max. voltage drop switching output DC[V] | 4.6 |
| Minimum load current[mA] | 4 |
| Max. leakage current[mA] | 0.8 |
| Output switching current | 400 mA |
| Electrical design | PNP/NPN |
| Output Function | Normally Open / normally closed; (selectable) |
| Protection Class | II |
| Correction factor | steel: 1 / stainless steel: 0.7 / aluminium: 0.4 / copper: 0.3 |
| Enclosure Rating | IP67 |
| Special feature | Gold-plated contacts |
| Application | Industrial applications / factory automation |
| housing Material | stainless steel (316Ti/1.4571); sensing face: PBT |
| Thread designation | M18 x 1 |

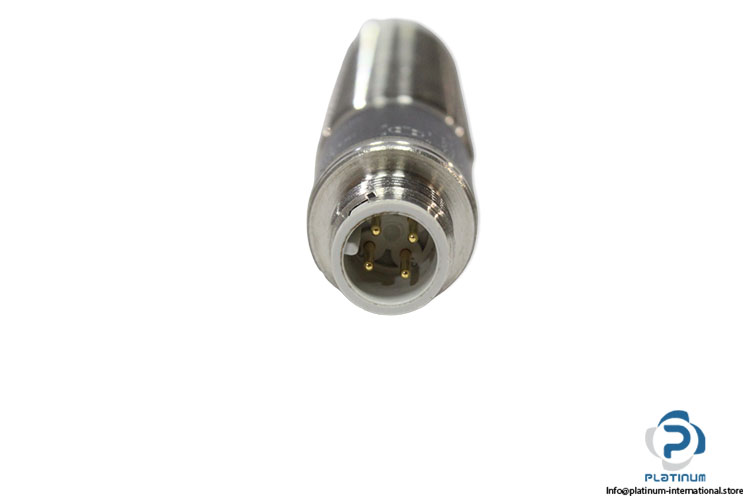

| Connection | 4-pin |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1099253 |
| Weight | 0,07 |
