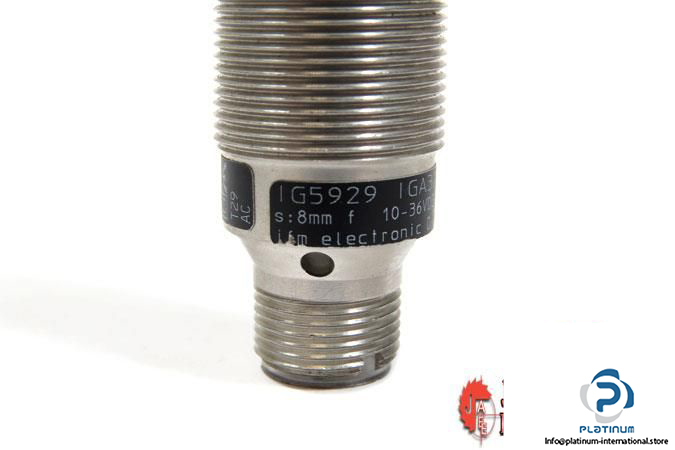

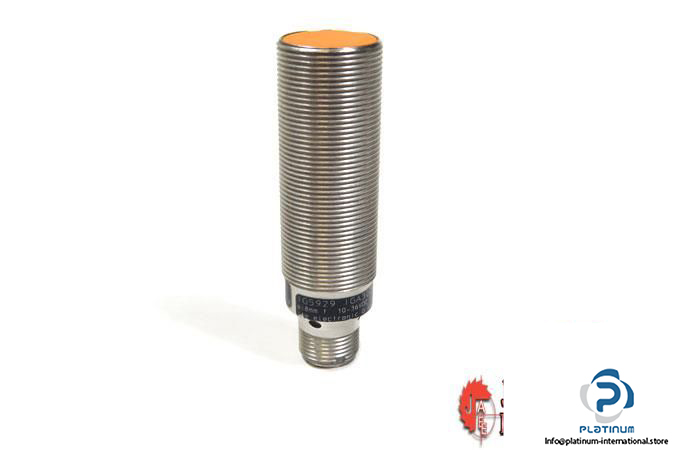

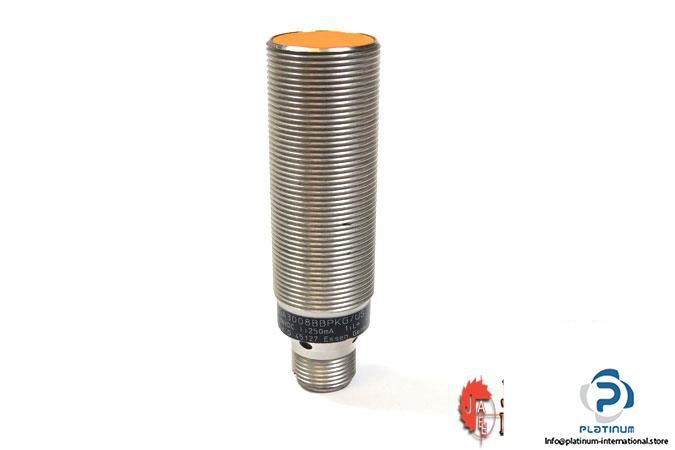

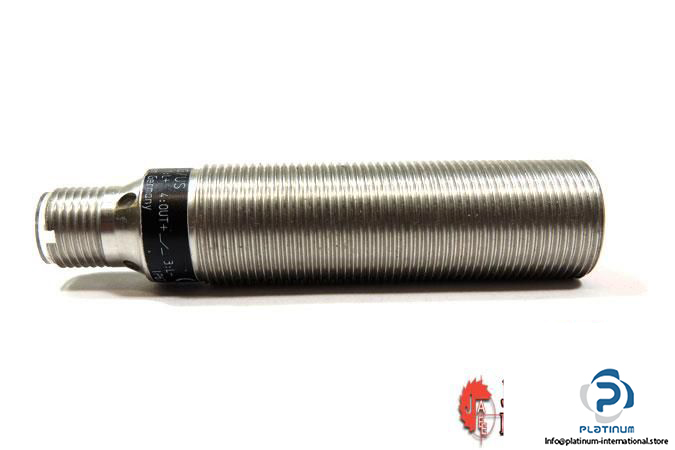

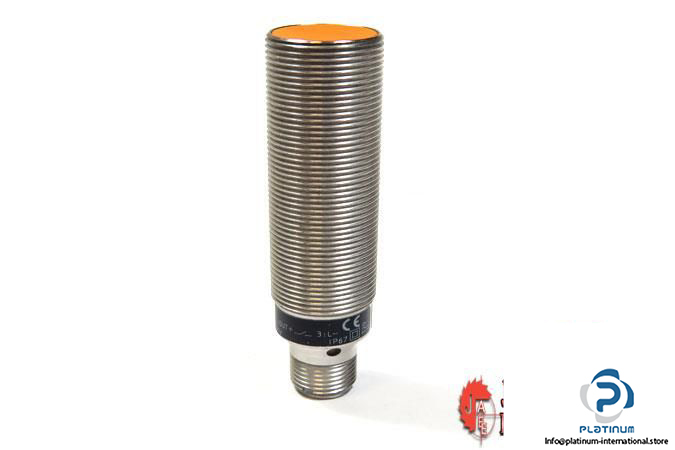

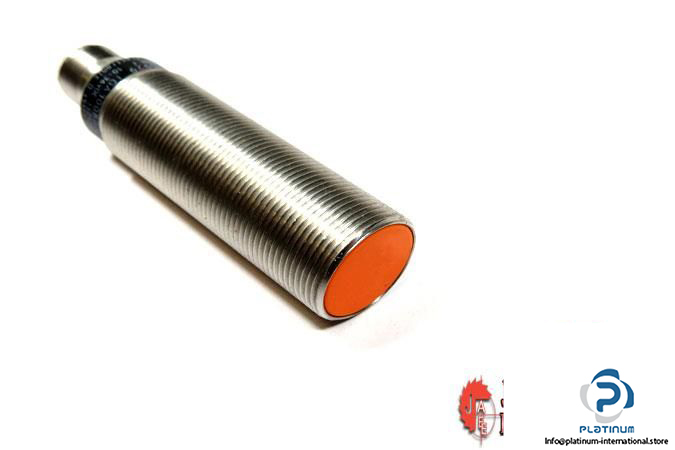

IFM IG5929 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IG5929

MRN: IGA3008BBPKG/US

Sensing Range: 8 mm

Real Sensing Range: 8 ± 10 % mm

Operating Distance: 0 … 6.48 mm

Operating Voltage: 10 … 30 V DC

Voltage Drop: 2.5 V DC

Switching output current: 200 mA DC

Current consumption: 10 mA

Switching frequency: 250 Hz DC

Electrical Design: PNP

Output: Normally open

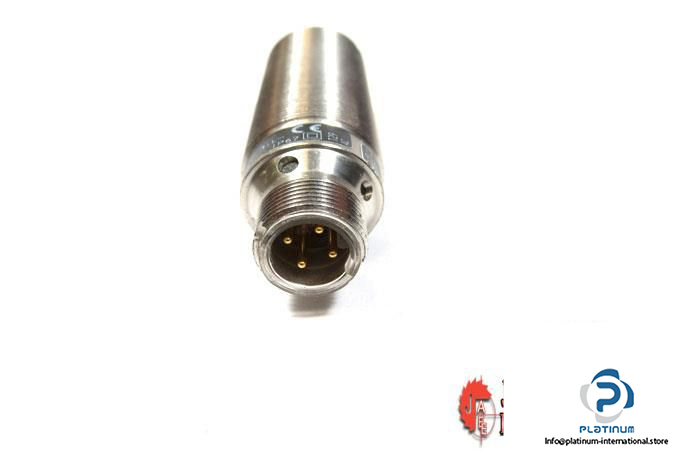

Connector type: M12 Connector, (gold-plated contacts)

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 70 °C

Diameter, Housing length: 18, 70 mm

Material: Brass white bronze coated; sensing face: PBT orange;

Mounting: Flush mountable

Weight: 51.4 g

Supplied Accessories:  2 lock nuts

Condition: New
