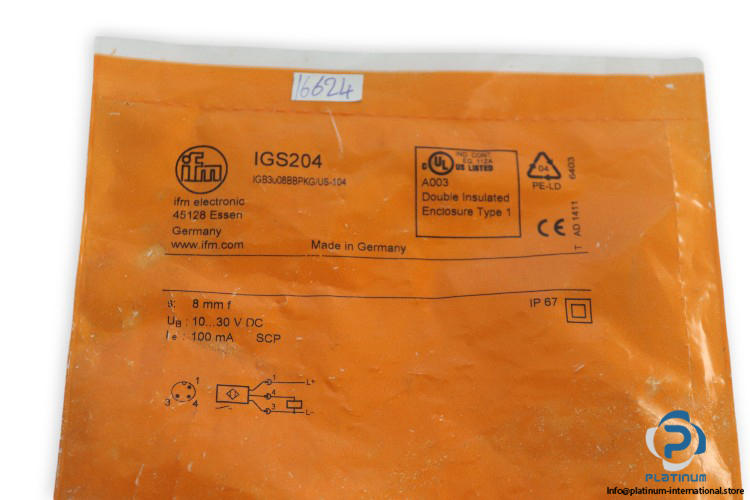

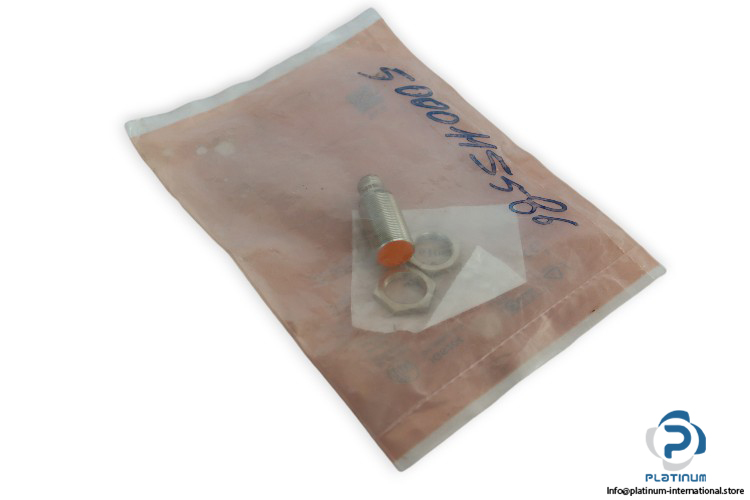

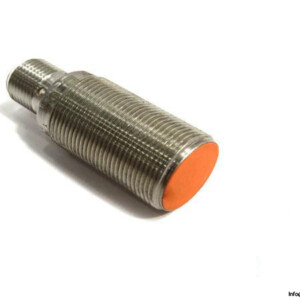

IFM IGS204 Inductive Sensor
Manufacturer: ifm
Type: Inductive Sensor
Part No.: IGS 204
MRN: IGB3008BBPKG/US-104
Sensing Range: 8 mm
Real Sensing Range: 8 ± 10% mm
Operating Distance: 0 … 6.5 mm
Operating Voltage: 10 … 30 V DC
Switching Output Current: 100 mA DC
Switching Frequency: 400 Hz
Electrical Design: PNP
Output Function: Normally Open
Connector Type: M12 Connector
Protection Class: II
Enclosure Rating: IP67
Housing: Threaded Type
Ambient Operating Temperature: -25 … 70°C
Diameter, Housing Length: 18, 45 mm
Material: Brass White Bronze Coated; Sensing Face: PBT Orange
Mounting: Flush Mountable
