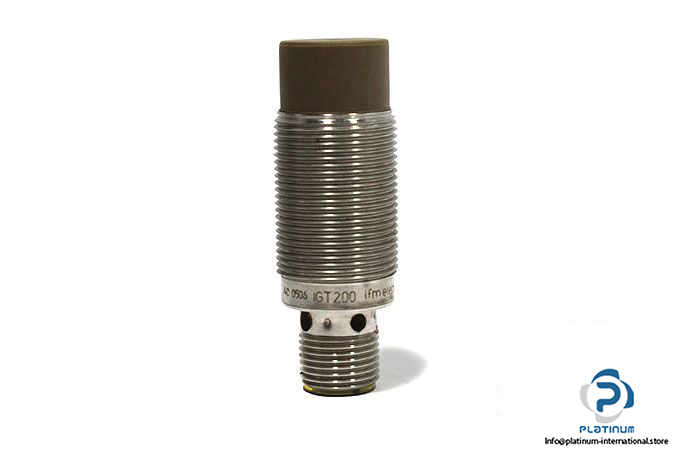

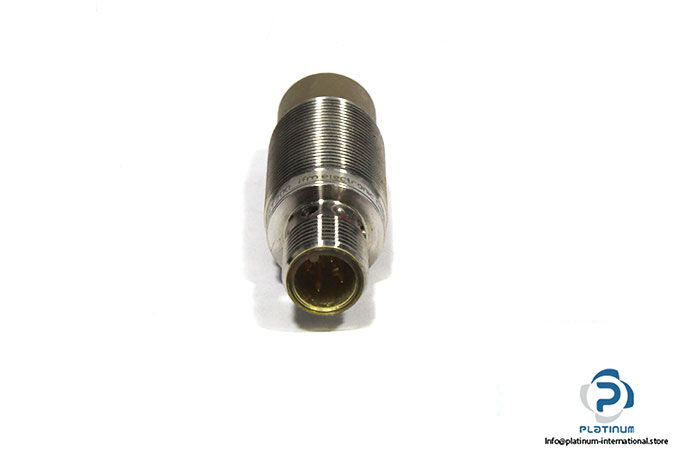

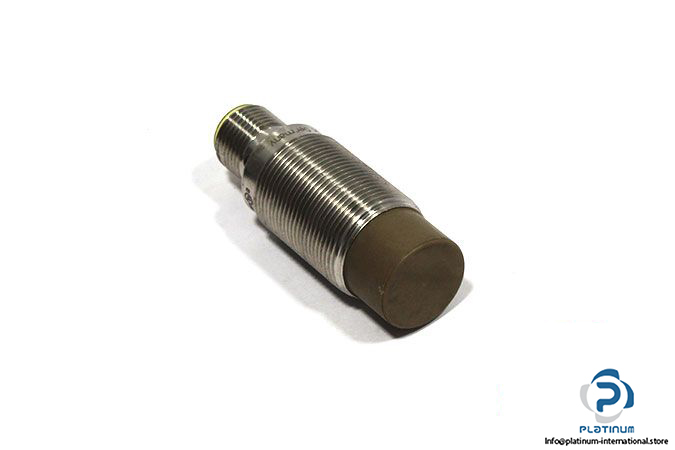

IFM IGT200 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IGT200

MRN: IGB3012-BPKG/M/V4A/US-104-DPS

Sensing Range: 12 mm

Operating Distance: 0 … 9.7 mm

Operating Voltage: 10 … 36 V DC

Switching Frequency DC: 300 Hz

Switching Output Current: 100 mA DC

Max. Voltage Drop: 2.5 V

Current Consumption: 10 mA

Electrical Design: PNP

Output Function: Normally Open

Protection Class: II

Enclosure Rating: IP68

Housing:  Threaded Type

Electrical Connection: M12 4-Pin

Ambient Operating Temperature: -25 … 70 °C

Diameter, Housing Length: 18, 51 mm

Material: Threaded Sleeve: Stainless Steel (1.4404 / 316L); Sensing Face: PEEK

Mounting: Non-Flush Mountable

Supplied Accessories: Lock Nuts: 2

Weight: 0.035 kg
