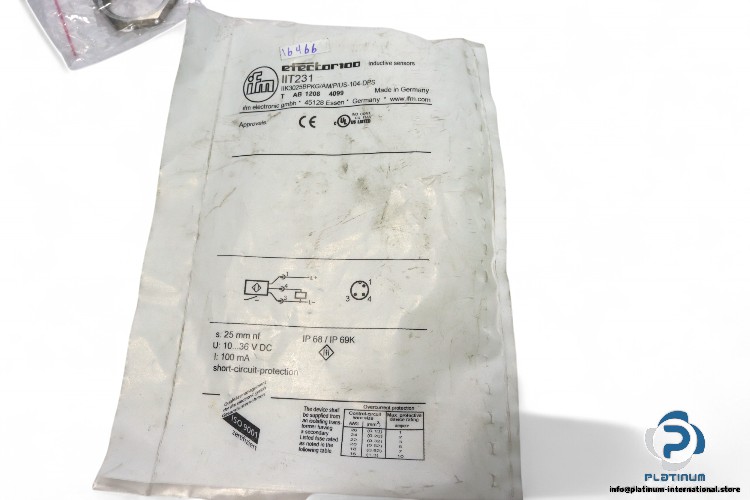

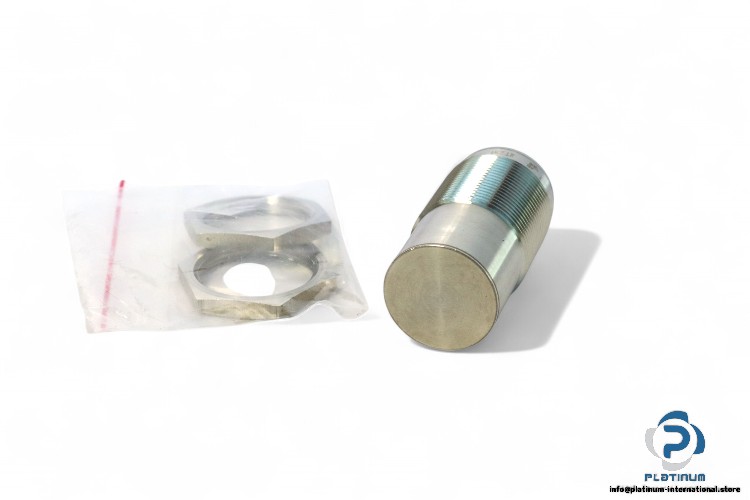

IFM IIT231 Inductive Full-Metal Sensor
Manufacturer: IFM
Type: Inductive Full-Metal Sensor
Model: IIT231
part no.: IIK3025BPKG/AM/P/US-104-DPS
Special feature: Gold-plated contacts; Increased sensing range; Full-metal housing
Sensing range: 25 mm
Operating distance: 0…20.3 mm
Operating voltage: 10…30V DC
Current consumption: 25 mA
Electrical design: PNP
Output function: Normally open (NO)
Mounting: non-flush mountable
Pressure rating:
100 bar
10 mPa
Connection: Connector M12, 3-PIN
Dimensions: M30 x 1.5 / L = 65 mm
Correction factor:
steel: 1
stainless steel: 1
brass: 0.9
Aluminium: 0.6
copper: 0.5
Protection class: III
Protection: IP 65; IP 67; IP 68; IP 69K
Ambient temperature: 0…100°C
