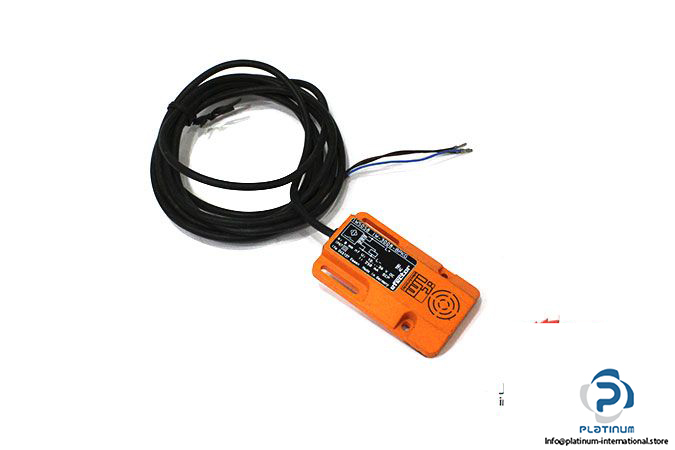

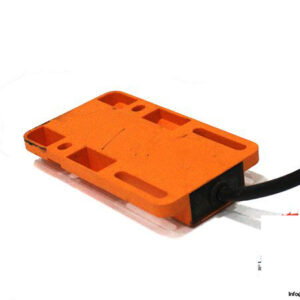

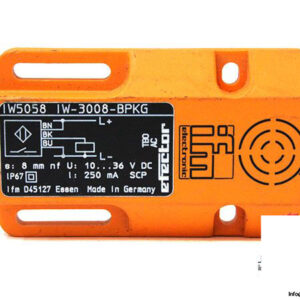

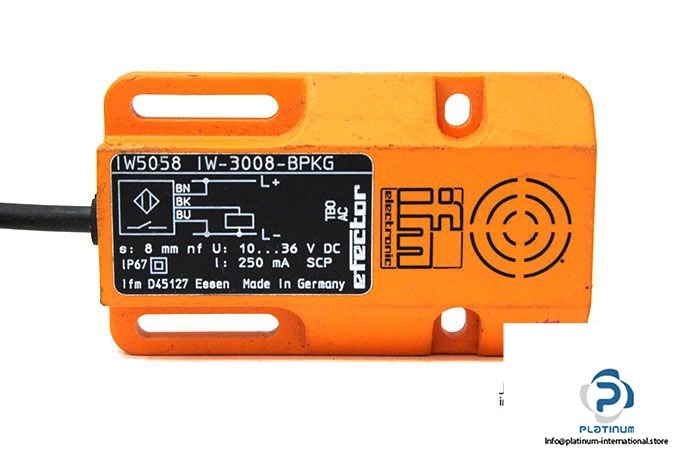

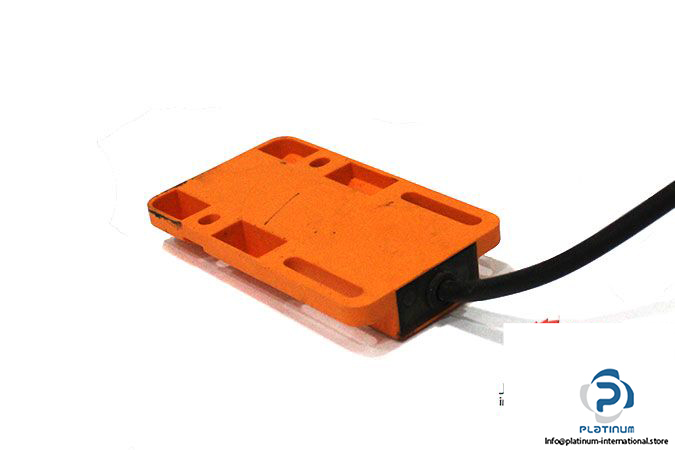

IFM IW5058 Inductive Sensor

Manufacturer: IFM

Type: Inductive Sensor

Part No.: IW5058

MRN: IW-3008-BPKG

Sensing Range: 8 mm

Real Sensing Range: 8 ± 10 % mm

Operating Distance: 0 … 6.5 mm

Operating Voltage: 10 … 36 V DC

Current Consumption: 15 mA

Voltage Drop Max.: 2.5 V DC

Switching Frequency DC: 300 Hz

Switching Output Current: 250 mA DC

Electrical Design: PNP

Output Function: Normally Open

Protection Class: II

Enclosure Rating: IP67

Housing:  Rectangular

Electrical Connection: Cable: 2 m, 3 Wire

Ambient Operating Temperature: -25 … 80 °C

Dimensions: 60 x 36 x 10 mm

Material: PBT

Mounting: Non-Flush Mountable

Weight: 0.05 kg
