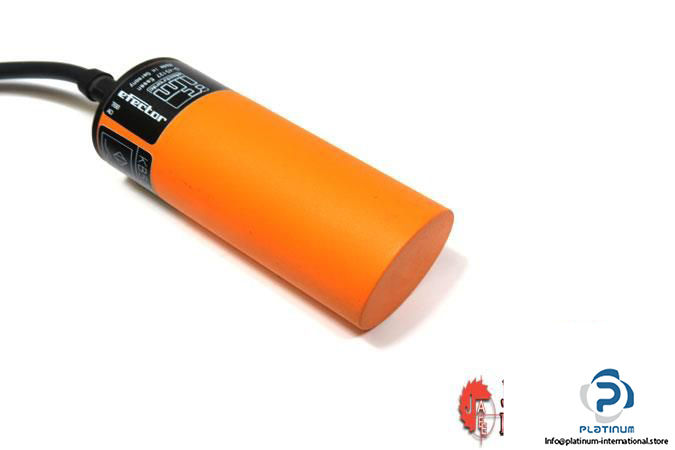

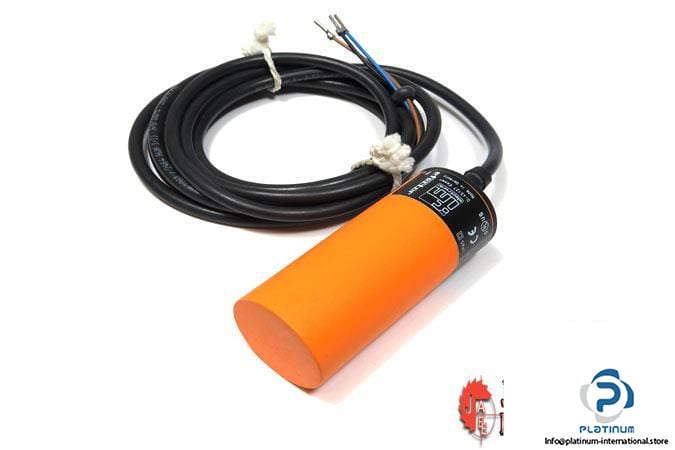

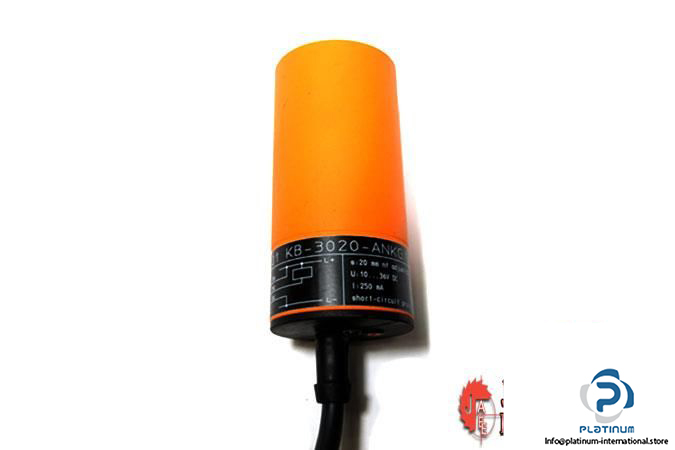

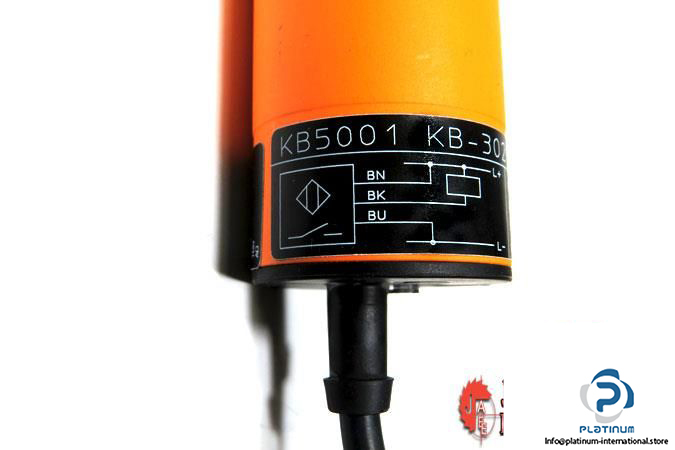

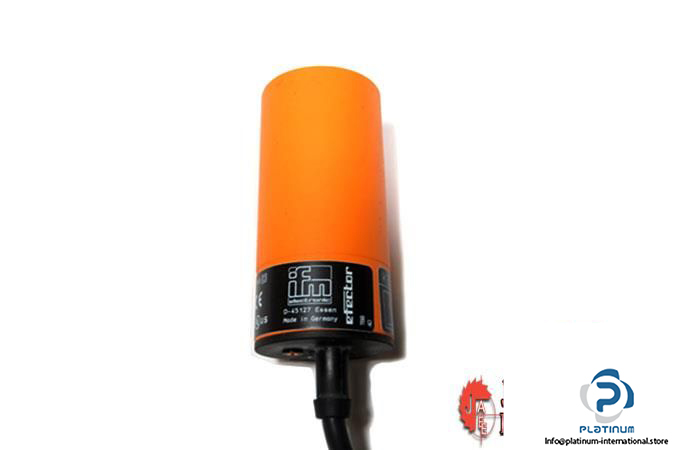

IFM KB5001 Capacitive Sensor

Manufacturer: IFM

Type: CAPACITIVE SENSOR

Part No.: KB5001

MRN: KB-3020-ANKG

Sensing Range:  3 … 20 mm

Real Sensing Range: 20 ± 10 % mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop: 2.5 V DC

Switching output current: 250 mA DC

Current consumption: 13 mA

Switching frequency: 40 Hz DC

Electrical Design: NPN

Output: Normally Open

Connector type, length: PVC cable ,2m

Protection Class: II

Enclosure rating: IP65

Housing: Tubular type

Ambient Operating temperature: -25 … 70 °C

Diameter, Housing length: 34, 81 mm

Material: PBT

Mounting: Non-flush mountable

Weight: 254.8 g

Condition: Used
