IFM KI5038 Capacitive Sensor
중고
재고 있음1 단위즉시 배송 가능
55,55$
산업용 등급의 정전 용량 센서로, 감지 범위 15mm, 나사산 하우징 및 IP65 보호 등급을 갖추고 있습니다. 높은 스위칭 신뢰성을 가진 가혹한 환경에서 비매립 설치용으로 설계되었습니다.
15CapacitiveConnectorDetectionFrequencyHighHousingifmIndustrialIP65KI5038mmModelmountNon-flushOutputPlugPNPRangeRatedSensingSensorThreadedTypeValve
방대한 재고
글로벌 배송
전문 지원
품질 보장

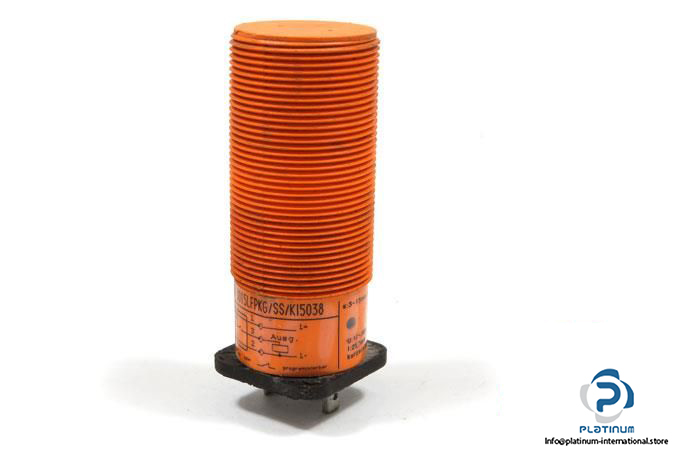

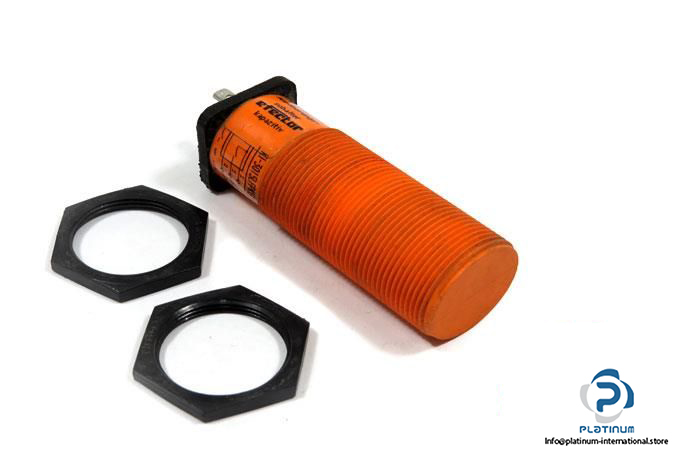

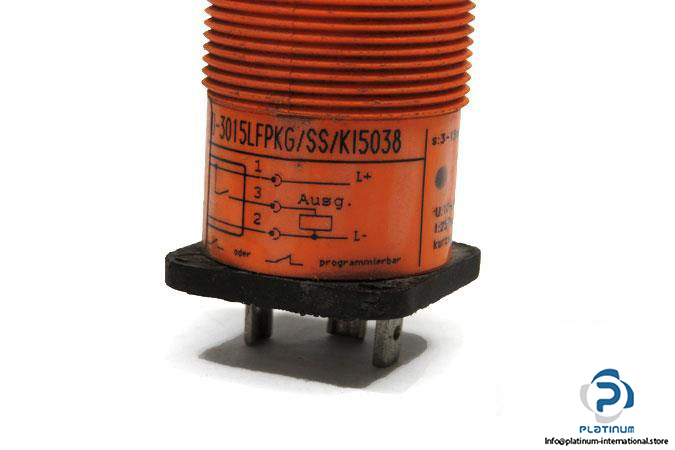

IFM KI5038 CAPACITIVE SENSOR
Robust capacitive sensor designed for precision object detection across a wide range of industrial environments. Its threaded housing and IP65 enclosure make it suitable for harsh conditions, while offering a reliable sensing range up to 15 mm.
Manufacturer: ifm
Type: Capacitive Sensor
Part No.: KI5038
MRN: KI-3015LFPKG/SS
| Sensing Range | 3 / 15 mm |
| Real Sensing Range | 15 ± |
| Operating Voltage | 10 / 36 V DC |
| Switching Output Current | 250 mA DC |
| Switching Frequency | 40 Hz |
| Output Function | PNP |

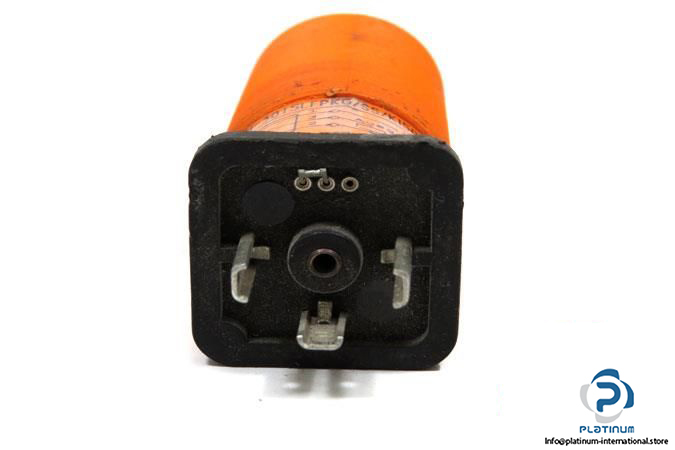

| Connector Type | Valve plug type |
| Protection Class | III |
| Enclosure Rating | IP65 |
| Housing | Threaded type |
| Ambient Operating Temperature | -25 / 70°C |
| Diameter, Housing Length | 30 mm, 92 mm |
| Material | PBT |
| Mounting | Non-flush mountable |
