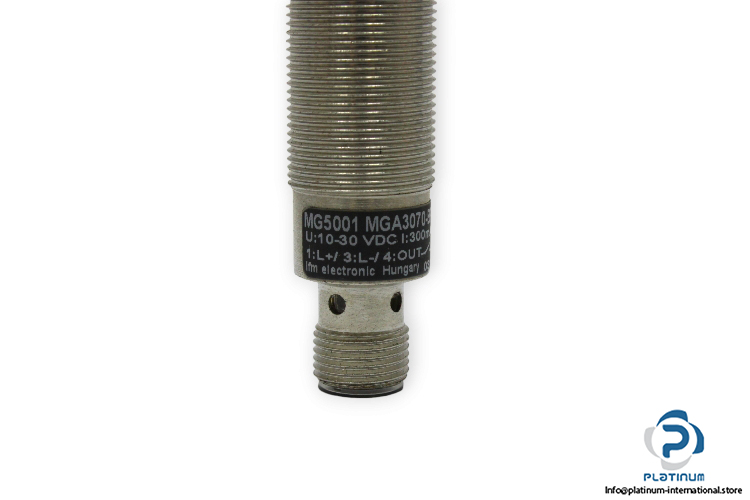

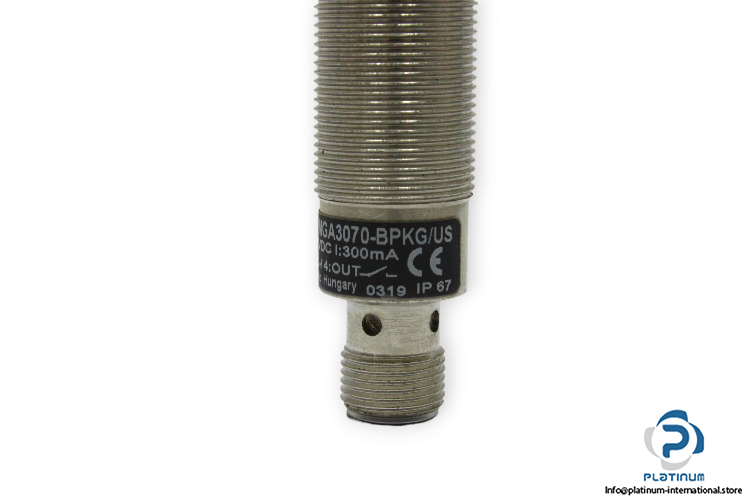

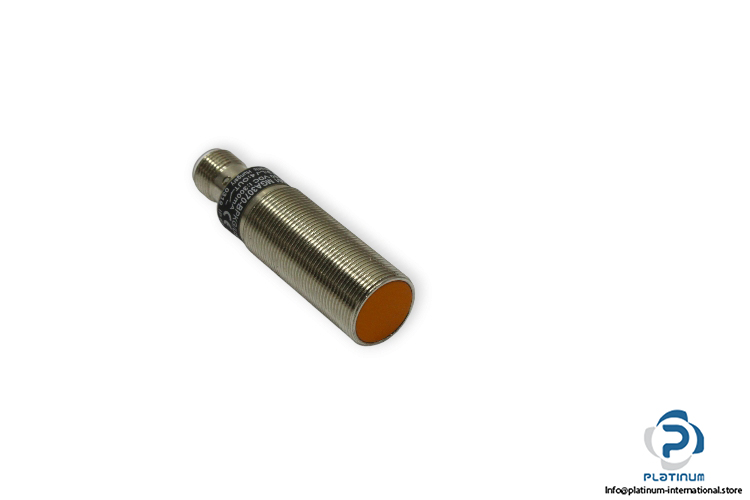

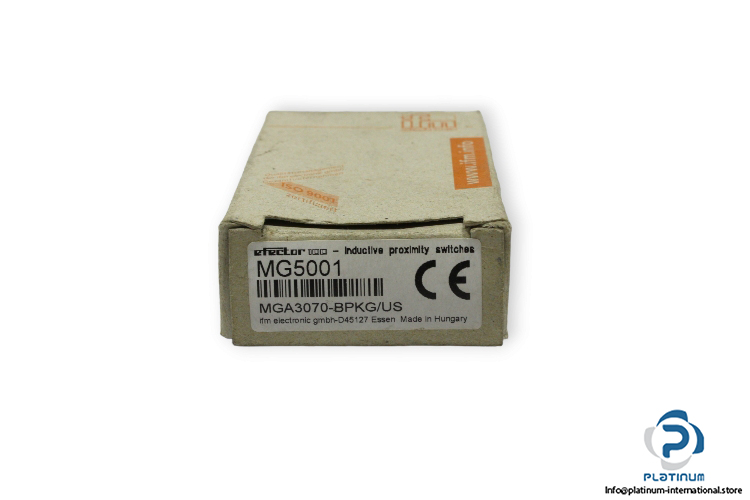

IFM MG5001 Magnetic Sensor
Manufacturer: IFM
Type: Magnetic Sensor
Model: MG5001
MNR: MGA3070-BPKG/US
Sensing Range: 70 mm, 70; (referred to magnet M 4.0)
Operating Voltage: 10 … 30 V DC
Electrical Design: PNP
Switching Output: Normally open
Current Rating: 300 mA
Connector type: M12
Dimensions: M18,65 mm
Housing Material: Brass Nickel plated
Operating Temperature: -25 … 75°C
Enclosure Rating: IP67
