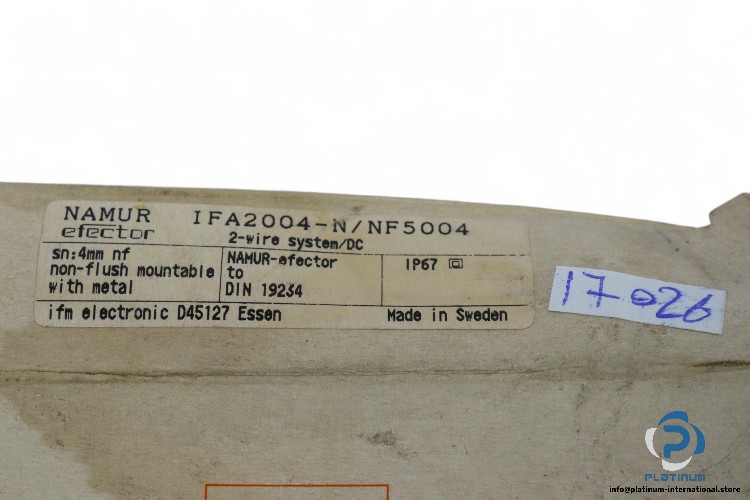

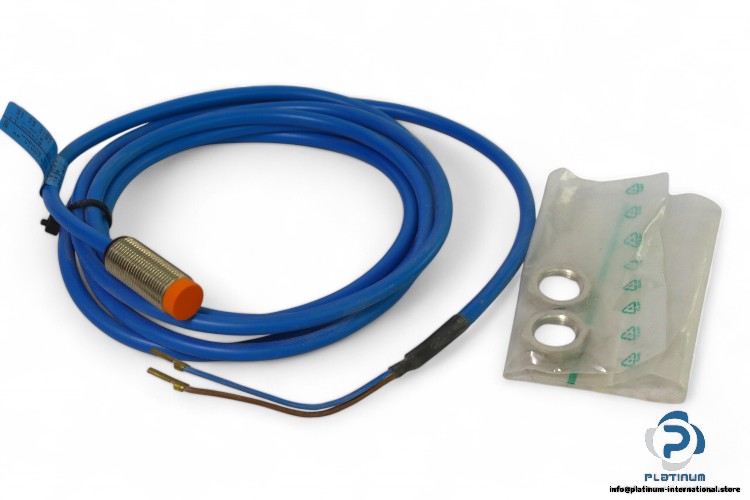

IFM NF5004 Inductive Sensor

Manufacturer: IFM
Type: Inductive sensor
Model: NF5004
MRN: IFA2004-N

Electrical design: NAMUR
Output function: normally Closed
Sensing range[mm]: 4
Housing: threaded type
Materials:
Dimensions[mm]: M12 x 1 / L = 30
Operating voltage[V]: 7.5…30
Current consumption[mA]: 1
Protection class: III
Max. voltage drop switching output DC[V]: 2.5
Permanent current rating of switching output DC[mA]: 30
Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Protection: IP 67
Connection: Cable
Ambient temperature[°C]: -20…80
Protection: IP 67
