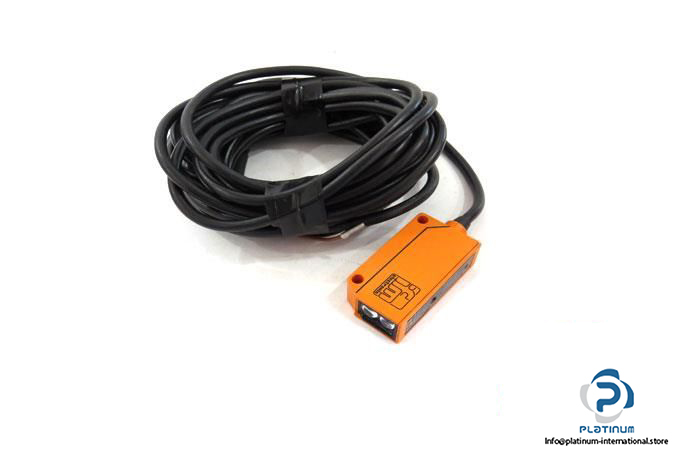

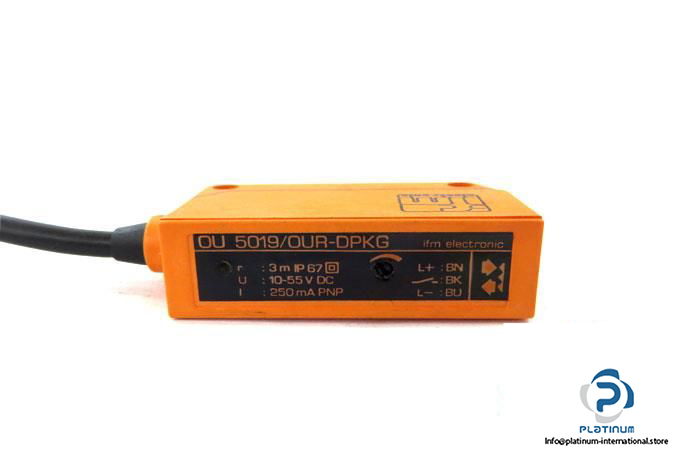

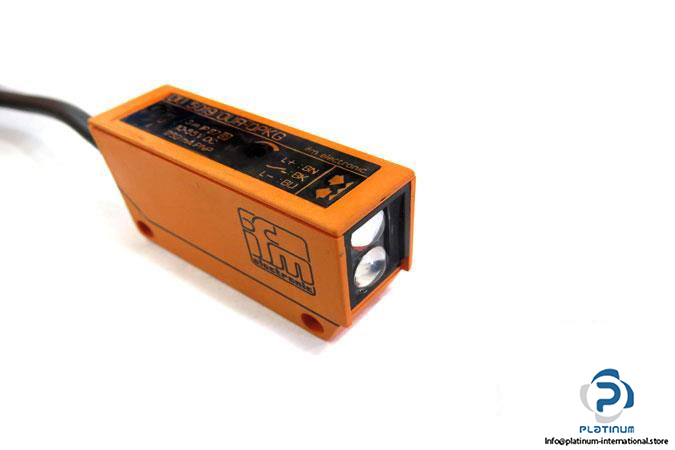

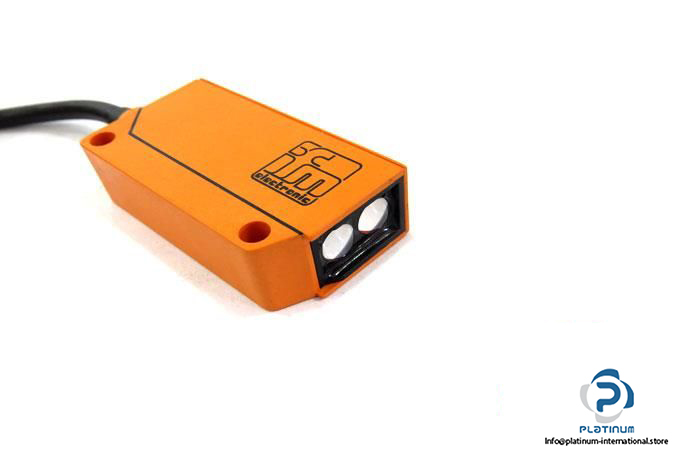

IFM OU5019 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: OU5019

MRN: OUR-DPKG

Sensing Range: 0.15 … 3 m

Light spot diameter max.: 262 mm

Operating Voltage: 10 … 55 V DC

Switching output current: 35 mA DC

Electrical Design: PNP

Switching frequency: 160 Hz

Output Function: Dark on mode

Light type: Infrared light

Connector type: PVC Cable, 6 m

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 …80°C

Dimensions: 28 x 16 x 51 mm

Material: PBT

Mounting: Flush mountable

Weight: 150 g

Condition: New
